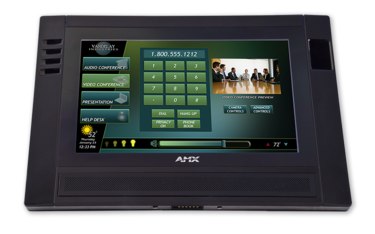

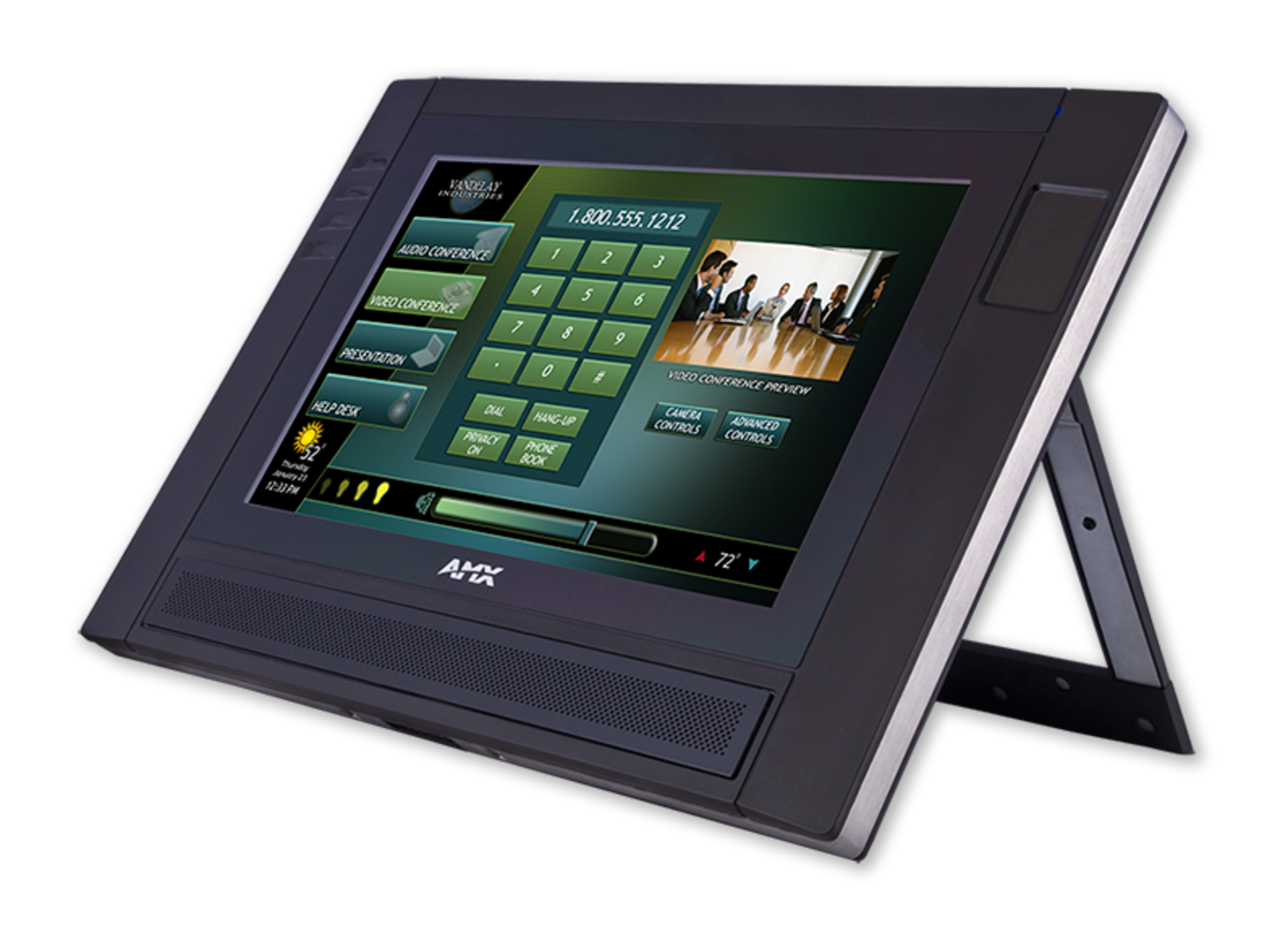

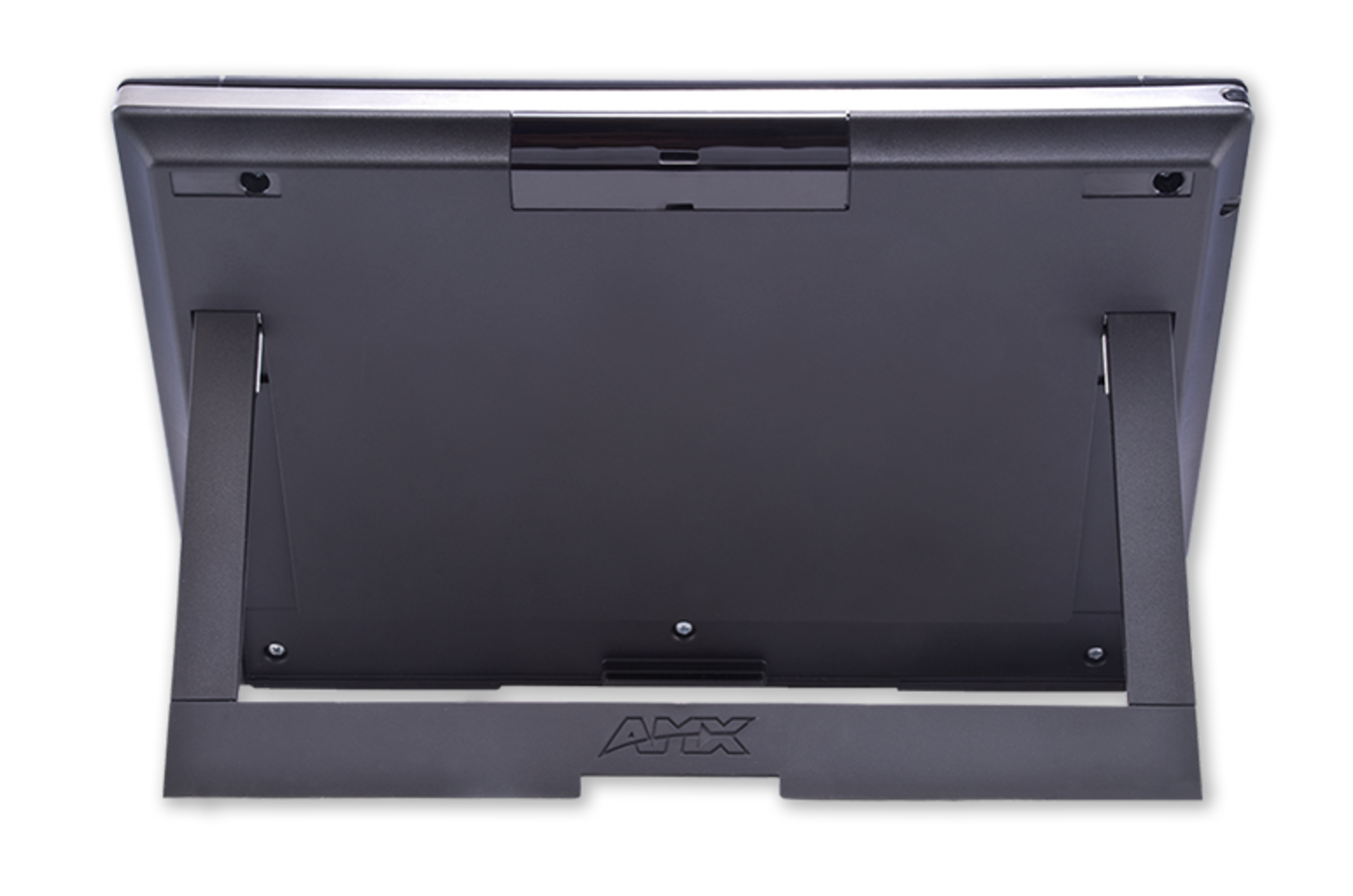

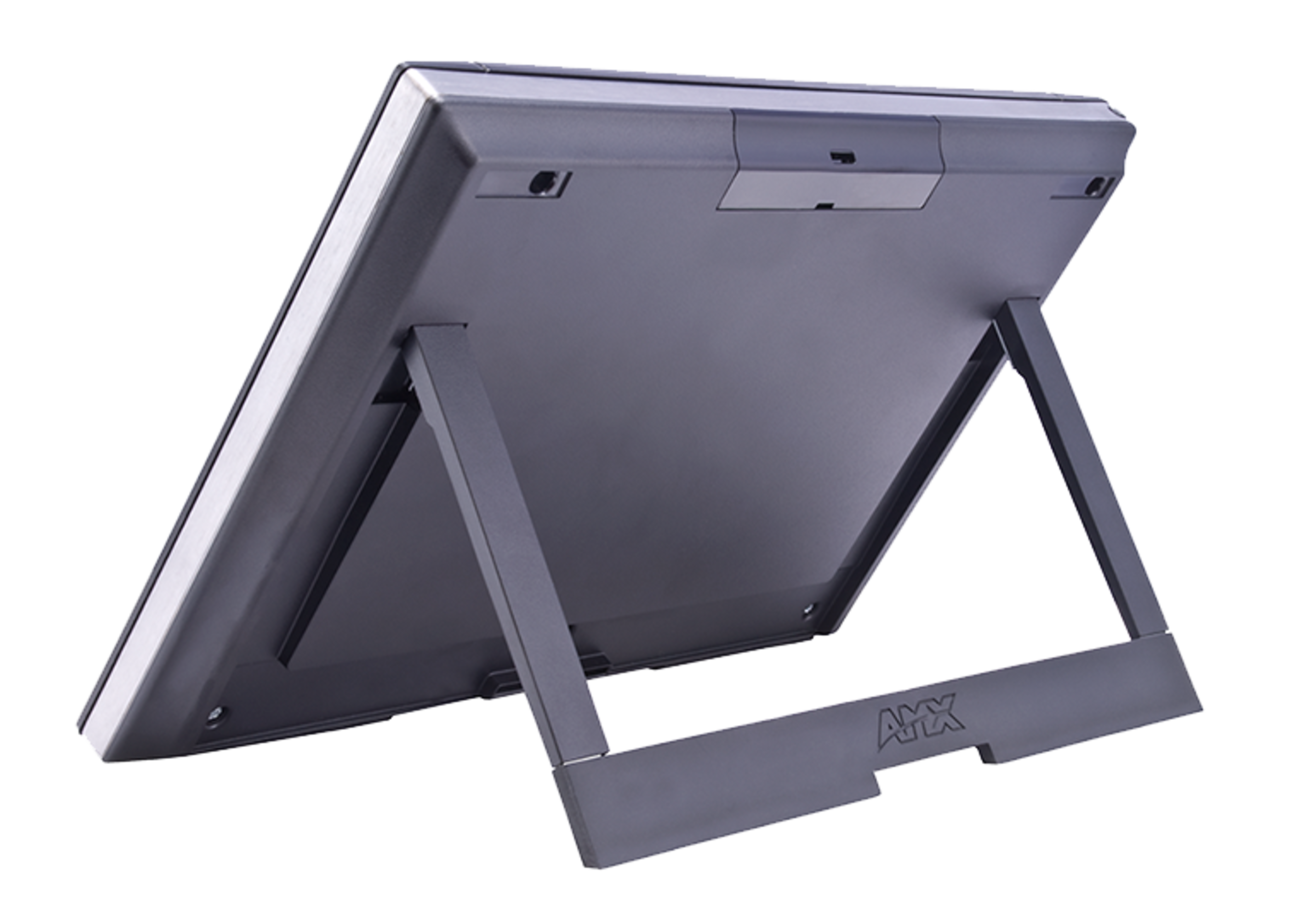

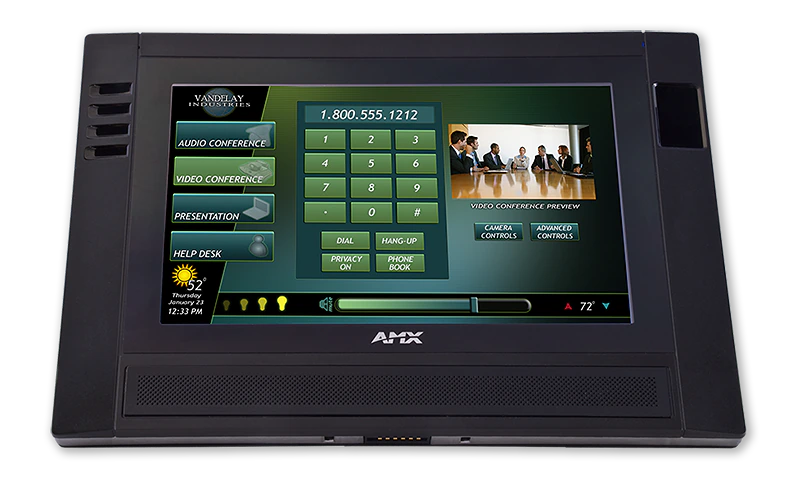

MVP-9000i (discontinued)

9" Modero® ViewPoint® Touch Panel with Intercom

Larger Images

The MVP-9000i redefines touch panel control offering both wireless and wired functionality, new user interface capabilities like gestures and page transitions, a stunning 9" widescreen 24-bit color display, full digital duplex telephone or intercom interface and built-in 802.11a/b/g Wi-Fi card with antenna diversity. The MVP-9000i switches seamlessly to wireless mode when removed from the PoE docking station. Transfer touch panel pages, upgrade the firmware or display photo files using the USB or mini-SD card slot. Available in white or black, the MVP-9000i also features a capacitive navigation pad, 4 programmable buttons, over 1 GB of useable flash memory and supports 5 hours of continuous use and three days of standby time.

Common Applications

Ideal for a wide variety of residential and commercial control and automation applications where flexibility of docked or mobile 802.11a/b/g functionality and extended battery life is desired. This is an ideal solution for extremely noisy wireless environments like MDUs and applications that require telephone/intercom functionality.

Documentation

Downloads

  Version Language Size Uploaded
Data Sheet     376 KB Jul 09, 2018
Manuals
Instruction Manual - MVP-9000i Modero Wireless Touch Panel with Intercom     4.36 MB Mar 30, 2018
Battery Replacement Guide - MVP-9000i Modero Wireless Touch Panel with Intercom     147 KB Jul 16, 2018
CAD Drawings
Pictorial Drawing - MVP-9000i 9" Modero ViewPoint Touch Panel with Intercom (DWG)     1.2 MB Apr 02, 2018
Pictorial Drawing - MVP-9000i 9" Modero ViewPoint Touch Panel with Intercom (DXF)     3.81 MB Apr 02, 2018
Pictorial Drawing - MVP-9000i 9" Modero ViewPoint Touch Panel with Intercom (PDF)     215 KB Apr 02, 2018
Bim Objects
MVP-9000i - BIM Object     Aug 12, 2019
Software
G4 Support Files 3.3.62    35.7 MB Jul 16, 2018
Modero MVP-9000i Touch Panel Firmware 2.86.86    30.5 MB Mar 16, 2018
Certificate Upload Utility 1.01    1.02 MB Jan 18, 2019
A&E (Architectural & Engineering) Specifications
A&E Spec - MVP-9000i 9" Modero ViewPoint Touch Panel with Intercom     52 KB Jun 28, 2018
Certifications
MVP-9000i Touch Panel UL Certificate of Compliance     244 KB Apr 26, 2018
MVP-9000i Touch Panel CE Declaration of Conformity     257 KB Apr 26, 2018
Whitepapers
Benefits of Cisco CCX for the Modero MVP-9000i     319 KB Apr 25, 2018
AMX AV/IT Administrator's Guide     2.61 MB Apr 25, 2018
Safety Sheets
Safety Instructions - MVP-9000i Modero Wireless Touch Panel with Intercom     101 KB Mar 30, 2018
Quick Start Guides
Quick Start Guide - MVP-9000i Modero Wireless Touch Panel with Intercom     42.1 MB Mar 30, 2018
Device Modules
AMX Communications Application     16.9 MB Apr 12, 2018
MET-ECOM/D Metreau Entry Communicator Device Module     2.72 MB Apr 12, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Automatically switches between Ethernet connectivity when docked and Wi-Fi when out of dock
  • New user interface capabilities including gesturing and 7 different page transitions
  • International Fonts Support - The MVP-9000i provides support for right to left languages such as Arabic, a combination of language styles (right to left, and left to right) can also be used allowing inclusion of Arabic and English on the same screen
  • 802.11a/b/g Wi-Fi with antenna diversity for improved wireless reliability and features enhanced wireless security protocol
  • Extended battery life - five hours of continuous use and three days of standby time
  • Micro-SD and USB stick support for easy file transfers and photo uploads
  • VoIP intercom and SIP telephone (requires AMX Gateway) ready
  • Cisco Compatible Extensions (CCX) Version 4 certified - CCX V4 certification means the MVP-9000i has been optimized to work with a Cisco wireless LAN infrastructure and that it meets the Wi-Fi alliance WPA/WPA2 specification addressing wireless network security, performance, reliability, diagnostic and network statistics gathering

Specifications

Display Size (WH) 7 5/8" x 11" x 1 1/16" (19.4 cm x 27.9 cm x 2.7 cm)
Viewable Area (WH) 7 3/4" x 4 1/2" (19.7 cm x 11.8 cm), 9" (diagonal)
Resolution 800 x 480 pixels (HV) @ 60 Hz refresh rate
Viewing Angle Up/Down/Left/Right: 85/85/85/85
Aspect Ratio 16:9
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers

FG5967-01 (Black)
FG5967-02 (White)
