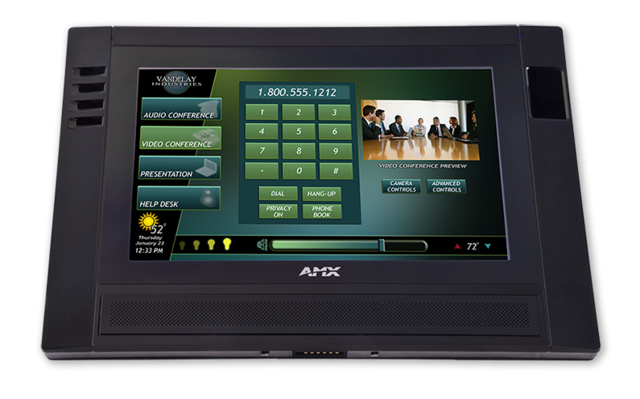

The MVP-9000i redefines touch panel control offering both wireless and wired functionality, new user interface capabilities like gestures and page transitions, a stunning 9" widescreen 24-bit color display, full digital duplex telephone or intercom interface and built-in 802.11a/b/g Wi-Fi card with antenna diversity. The MVP-9000i switches seamlessly to wireless mode when removed from the PoE docking station. Transfer touch panel pages, upgrade the firmware or display photo files using the USB or mini-SD card slot. Available in white or black, the MVP-9000i also features a capacitive navigation pad, 4 programmable buttons, over 1 GB of useable flash memory and supports 5 hours of continuous use and three days of standby time.
Larger Images
Common Applications
Ideal for a wide variety of residential and commercial control and automation applications where flexibility of docked or mobile 802.11a/b/g functionality and extended battery life is desired. This is an ideal solution for extremely noisy wireless environments like MDUs and applications that require telephone/intercom functionality.
Documentation
-
Data Sheet
[376 KB]
-
Instruction Manual - MVP-9000i Modero Wireless Touch Panel with Intercom
[4.36 MB]
-
Quick Start Guide - MVP-9000i Modero Wireless Touch Panel with Intercom
[42.1 MB]
-
Safety Instructions - MVP-9000i Modero Wireless Touch Panel with Intercom
[101 KB]
-
Battery Replacement Guide - MVP-9000i Modero Wireless Touch Panel with Intercom
[147 KB]
-
Pictorial Drawing - MVP-9000i 9" Modero ViewPoint Touch Panel with Intercom (PDF)
[215 KB]
-
Pictorial Drawing - MVP-9000i 9" Modero ViewPoint Touch Panel with Intercom (DXF)
[3.81 MB]
-
Pictorial Drawing - MVP-9000i 9" Modero ViewPoint Touch Panel with Intercom (DWG)
[1.2 MB]
-
AMX AV/IT Administrator's Guide
[2.61 MB]
-
Benefits of Cisco CCX for the Modero MVP-9000i
[319 KB]
-
MVP-9000i Touch Panel CE Declaration of Conformity
[257 KB]
-
MVP-9000i Touch Panel UL Certificate of Compliance
[244 KB]
-
A&E Spec - MVP-9000i 9" Modero ViewPoint Touch Panel with Intercom
[52 KB]
Downloads
-
G4 Support Files v3.3.62
[35.7 MB]
-
Modero MVP-9000i Touch Panel Firmware v2.86.86
[30.5 MB]
-
MET-ECOM/D Metreau Entry Communicator Device Module
[2.72 MB]
-
AMX Communications Application
[16.9 MB]
Features
- Automatically switches between Ethernet connectivity when docked and Wi-Fi when out of dock
- New user interface capabilities including gesturing and 7 different page transitions
- International Fonts Support - The MVP-9000i provides support for right to left languages such as Arabic, a combination of language styles (right to left, and left to right) can also be used allowing inclusion of Arabic and English on the same screen
- 802.11a/b/g Wi-Fi with antenna diversity for improved wireless reliability and features enhanced wireless security protocol
- Extended battery life - five hours of continuous use and three days of standby time
- Micro-SD and USB stick support for easy file transfers and photo uploads
- VoIP intercom and SIP telephone (requires AMX Gateway) ready
- Cisco Compatible Extensions (CCX) Version 4 certified - CCX V4 certification means the MVP-9000i has been optimized to work with a Cisco wireless LAN infrastructure and that it meets the Wi-Fi alliance WPA/WPA2 specification addressing wireless network security, performance, reliability, diagnostic and network statistics gathering
Specifications
| Display Size (WH) | 7 5/8" x 11" x 1 1/16" (19.4 cm x 27.9 cm x 2.7 cm) |
| Viewable Area (WH) | 7 3/4" x 4 1/2" (19.7 cm x 11.8 cm), 9" (diagonal) |
| Resolution | 800 x 480 pixels (HV) @ 60 Hz refresh rate |
| Viewing Angle | Up/Down/Left/Right: 85/85/85/85 |
| Aspect Ratio | 16:9 |
| Temperature Range | Operating: 32° F to 104° F (0° C to 40° C) |
NOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
