DGX-O-HDMI-4K60

Enova® DGX 4K60 4:4:4 HDMI Output Board

DGX-O-HDMI-4K60
Larger Images

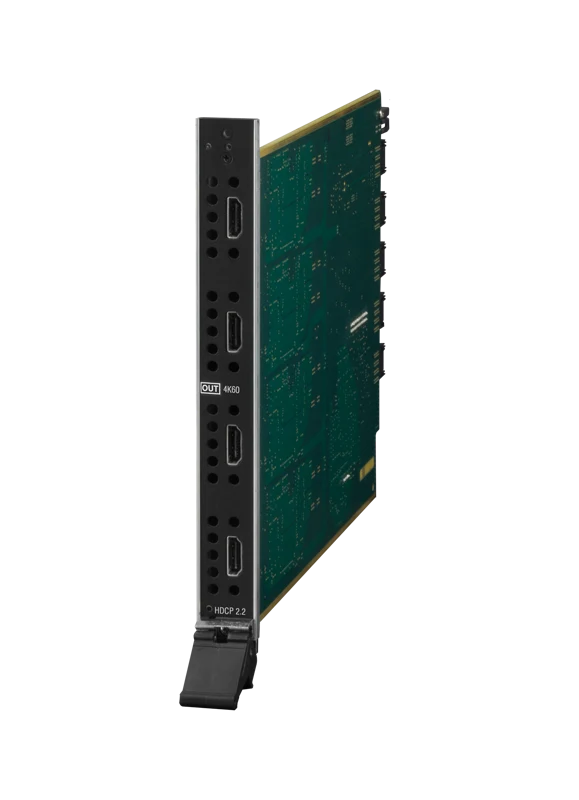

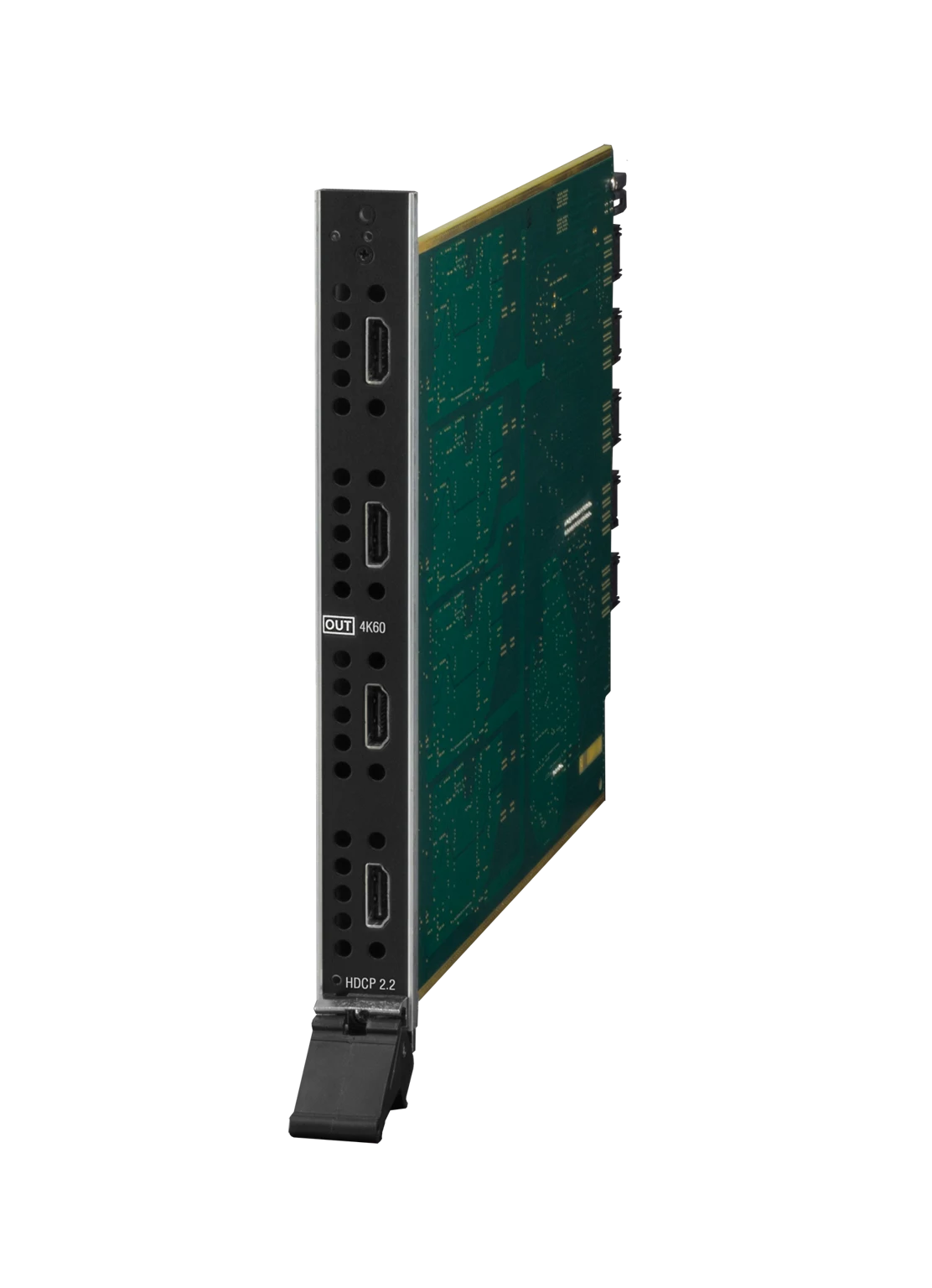

The DGX-O-HDMI-4K60 is a 4K60 4:4:4 output board for the Enova DGX 800, Enova DGX 1600, Enova DGX 3200, and Enova DGX 6400. The board is Ultra High Definition (UHD) capable and HDCP 2.2 compliant, with support for full 4K60 4:4:4 video and High Dynamic Range (HDR) for optimum image quality and full bandwidth, pixel-for-pixel image reproduction without compression or chroma subsampling. It has four connections and supports HDMI with embedded audio, DisplayPort++ or DVI signals.

COMMON APPLICATIONS

The Enova DGX HDMI Output Board is ideal for applications where display devices are located within 7 meters of the Enova DGX Digital Media Switcher, providing 4K60 4:4:4 HDMI routing for video wall processors, divisible rooms, and more without the need for external receivers.

Videos





Configuration Tool

Downloads

  Version Language Size Uploaded
Manuals
file type icon Support Guide - Enova DGX Board Replacement
version P, updated: Mar 2021
  868 KB Mar 2021
file type icon Support Guide – IO Board and Endpoint Compatibility
updated: Feb 2021
    46.4 KB Feb 2021
Comparison Charts
file type icon Comparison Chart - DGX Video Boards
updated: Dec 2020
    159 KB Dec 2020
Certifications
file type icon Enova DGX 100 Series CE Declaration of Conformity
updated: Feb 2021
    276 KB Feb 2021
file type icon Enova DGX 100 Series CB Test Certificate 62368
updated: Feb 2021
    143 KB Feb 2021
file type icon Enova DGX 100 Series CB Test Certificate 60950
updated: Feb 2021
    201 KB Feb 2021
Data Sheets
file type icon Data Sheet – DGX-O-HDMI-4K60
updated: Nov 2021
    165 KB Nov 2021
Configuration Tools
file type icon Enova DGX 100 Series Configuration Tool
updated: Mar 2021
    Mar 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • 4K60 4:4:4 Support – Experience pixel-for-pixel video reproduction with full bandwidth 4K60 images with full 4:4:4 color space
  • HDCP 2.2 Support with InstaGate Pro® Technology – Support the latest entertainment devices and enjoy hassle-free matrix switching to all compliant displays.
  • High Dynamic Range (HDR) – Dramatically improve the viewing experience with broader color range for improved clarity
  • Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
  • Surround Sound Support – Pass through high definition surround sound including Dolby Atmos, Dolby TrueHD, Dolby Digital, Dolby Digital Plus, DTS-HD Master Audio, DTS, and 2-channel through 8-channel L-PCM

Specifications

Connectors 4 HDMI Type A Female Ports
Compatible Formats HDMI, HDMI 2.x, HDCP, HDCP 2.2, DVI
Signal Type Support HDMI, HDMI 2.x, DVI-D (Single Link With HDMI Cable Adapter)
Maximum Resolution Support 3840x2160p@24/25/30/60 Hz @ 4:4:4, 4096x2160p@24/25/30/60 Hz @ 4:4:4 (when used with compatible Enova DGX 100 Series enclosures)
Audio Format Support Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM, Dolby Digital and DTS support up to 48 kHz, 5.1 channels
Local Audio Support Yes, Insertion of 2 CH L-PCM selectable by channel
Audio Switching Board Support Supports break-away audio switching of 2 CH L-PCM for all channels
FG Numbers FG1061-552
