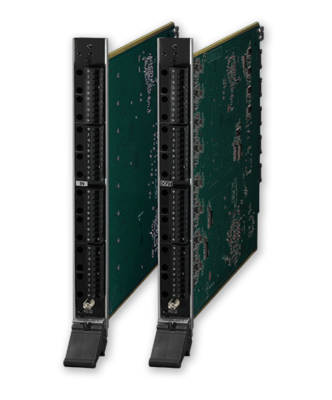

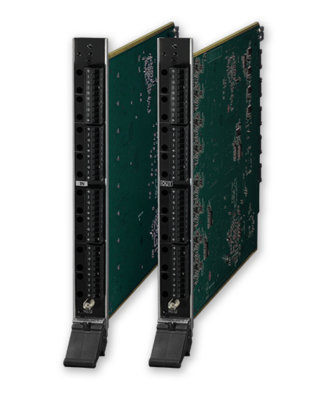

The DGX3200-ASB is a pair of audio switching boards that include both an Input and an Output board for the Enova DGX 3200. The boards enable a host of audio switching capabilities including Audio Breakaway and Downmixing. DSP functionality includes a 10 Band Parametric EQ on every output which allows audio tuning for each specific environment based on its acoustics. The Enova DGX Web Configuration interface makes it simple and easy to set up these audio features with the Enova DGX. It includes a test tone generator that allows testing of every audio connection without the need for a separate audio source. The Audio Switching Boards are only sold in pairs and must be used together.
|Data Sheet||315 KB||Jul 06, 2018|
|Comparison Chart||68.6 KB||Jul 09, 2018|
|TSG Enova DGX Board Repalcement Rev N||523 KB||Jul 16, 2018|
|Enova DGX 100 Series Enclosure UL Certificate of Compliance||176 KB||Apr 25, 2018|
|Enova DGX 100 Series CB Test Certificate 62368||166 KB||Apr 25, 2018|
|Enova DGX 100 Series CB Test Certificate 60950||181 KB||Apr 26, 2018|
|Enova DGX 100 Series CE Declaration of Conformity||276 KB||Apr 26, 2018|
|Enova DGX 100 Series Configuration Tool||Jan 11, 2019|
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
|Audio Switching||40x40 (DGX 3200) Matrix Audio Switching with each out having independent volume, EQ, and sync delay|
|Audio Inputs||32 Embedded Digital Audio Inputs from Video Input Positions|
|Audio Outputs||32 Embedded Digital Audio to Video Outputs|
|Audio Input Compression||Independent compression per input; attack: 1 to 2000 ms; release: 10 to 5000 ms; compression ratio: 1 to 20; threshold: -60 to 0 dB|
|Audio Input Gain Compensation||-24 dB to +24 dB, 1 dB steps|
|Audio Output Compression||10-band parametric EQ with variable center frequency, filter type and Q per band; center frequency: 20 Hz to 20 kHz; EQ gain: -12 to +12 dB; Q: 0.1 to 20; filter types: bell, bass shelving, treble shelving, low pass, high pass, band pass, band stop|
|Audio Output Sync Delay||0 to 200 ms|
|Balance Control||20 steps each left and right|
|Audio Control per Output||Independent EQ, volume and balance control per output|
|Downmix Input||Downmix input fed from selectable embedded audio input from any Enova DGX Input Board. Downmixed audio switchable to all embedded/auxiliary Dante encoded audio outputs. +17 dBu|
NOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
