DGX800-1600-ASB

Audio Switching Board Kit For Enova DGX 800/1600

Larger Images

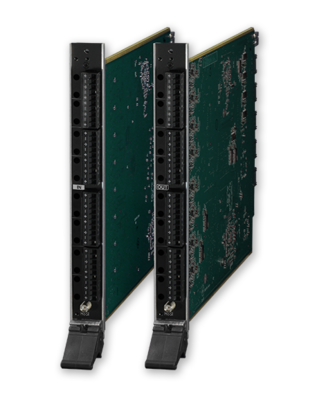

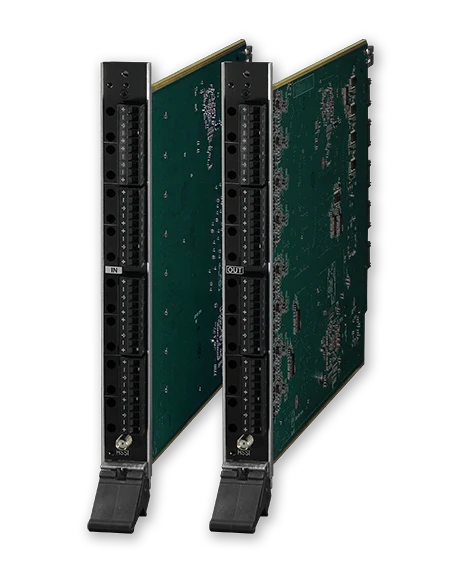

The DGX800/1600-AS is a pair of audio switching boards that include both an Input and an Output board for the Enova DGX 800 and 1600. The boards enable a host of audio switching capabilities including Audio Breakaway and Downmixing. DSP functionality includes a 10 Band Parametric EQ on every output which allows audio tuning for each specific environment based on its acoustics. The Enova DGX Web Configuration interface makes it simple and easy to set up these audio features with the Enova DGX. It includes a test tone generator that allows testing of every audio connection without the need for a separate audio source. The Audio Switching Boards are only sold in pairs and must be used together.

Configuration Tool

Downloads

  Version Language Size Uploaded
Data Sheet
updated: Jul 06, 2018
    233 KB Jul 06, 2018
Comparison Chart
updated: Jul 09, 2018
    68.6 KB Jul 09, 2018
Manuals
TSG Enova DGX Board Repalcement Rev N
updated: Jul 16, 2018
    523 KB Jul 16, 2018
Certifications
Enova DGX 100 Series Enclosure UL Certificate of Compliance
updated: Apr 25, 2018
    176 KB Apr 25, 2018
Enova DGX 100 Series CB Test Certificate 62368
updated: Apr 25, 2018
    166 KB Apr 25, 2018
Enova DGX 100 Series CB Test Certificate 60950
updated: Apr 26, 2018
    181 KB Apr 26, 2018
Enova DGX 100 Series CE Declaration of Conformity
updated: Apr 26, 2018
    276 KB Apr 26, 2018
Configuration Tools
Enova DGX 100 Series Configuration Tool
updated: Jan 11, 2019
    Jan 11, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Audio Switching 16x16 (DGX 800) or 24x24 (DGX 1600) Matrix Audio Switching. Each of the embedded or auxiliary analog audio outputs has independent volume, EQ and sync delay
Audio Inputs 8 or 16 Embedded Digital Audio Inputs from Video Input Positions
Audio Outputs 8 or 16 Embedded Digital Audio to Video Outputs
Audio Input Compression Independent compression per input; attack: 1 to 2000 ms; release: 10 to 5000 ms; compression ratio: 1 to 20; threshold: -60 to 0 dB
Audio Input Gain Compensation -24 dB to +24 dB, 1 dB steps
Audio Output Compression 10-band parametric EQ with variable center frequency, filter type and Q per band; center frequency: 20 Hz to 20 kHz; EQ gain: -12 to +12 dB; Q: 0.1 to 20; filter types: bell, bass shelving, treble shelving, low pass, high pass, band pass, band stop
Audio Output Sync Delay 0 to 200 ms
Balance Control 20 steps each left and right
Audio Control per Output Independent EQ, volume and balance control per output
Downmix Input Downmix input fed from selectable embedded audio input from any Enova DGX Input Board. Downmixed audio switchable to all embedded/auxiliary Dante encoded audio outputs
FG Numbers FG1061-716
