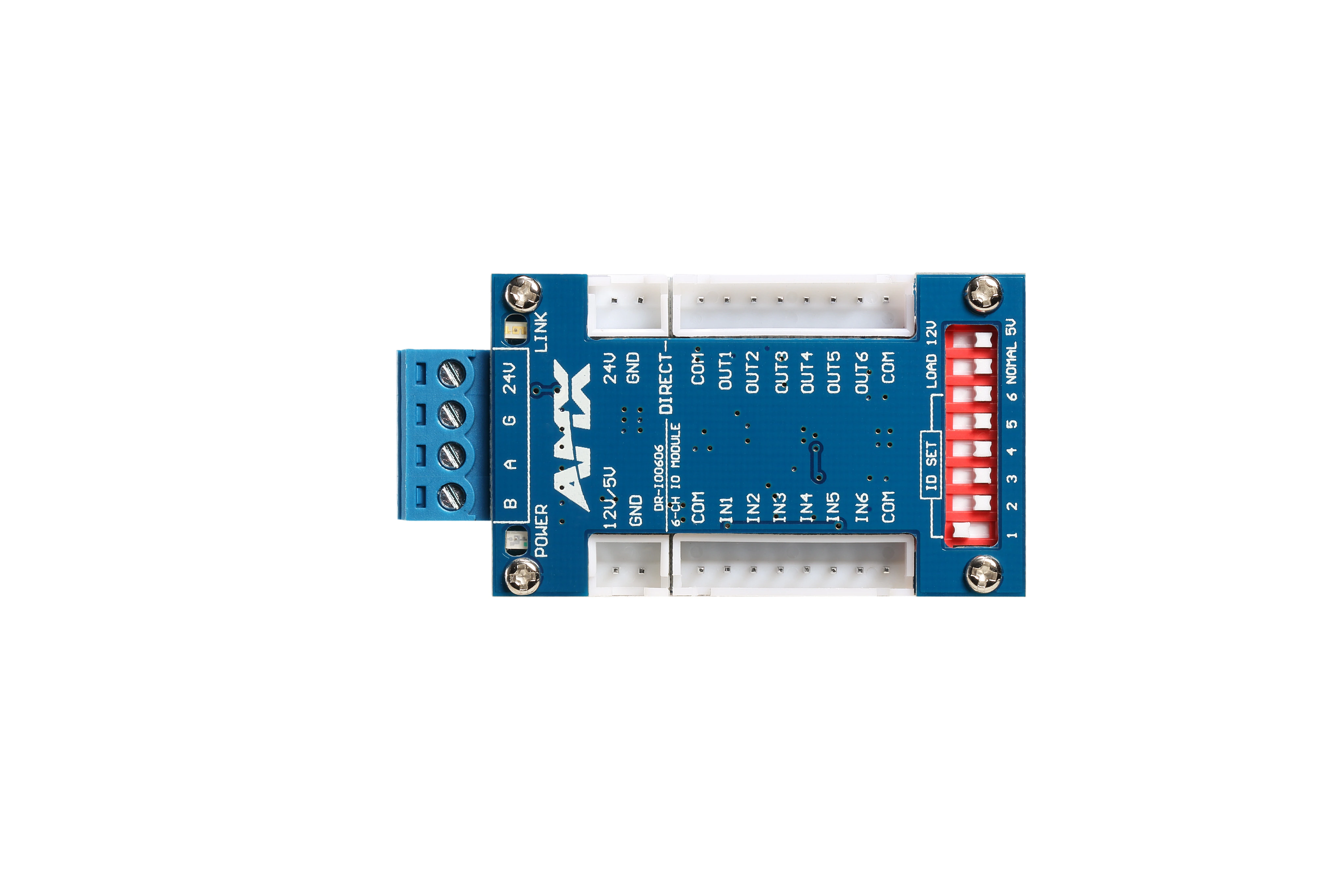

DR-IO0606 I/O Module provides 6 dry contact closure inputs and 6 TTL level digital outputs and is designed for Type 86 box installation. DR-IO0606 can use with a 6-key reset or self-locking faceplate.
Downloads
Features
- 6 dry contact closure inputs and 6 TTL level digital outputs.
- 5V or 12V selectable output voltage to power of a variety of LED faceplates.
- Output configurable to high or low state.
- Input uses opto-isolator circuit and is protected from high voltage and overcurrent.
- Compact design for installation in a Type 86 box.
- For use with mechanical keypad and sensor trigger switch.
- LEDs indicate port status.
- 5V, 12V or 24V voltage available for different types of sensors.
- Online upgrading.
- Communication through DR-Link interface.
Specifications
Power Supply | DC12-24V 15mA |
Output voltage | 5V or 12V |
Installation | Concealed installation |
Control interface | 1 x DR-Link |
Operating Temperature / RH | 0˚C - 45˚C / 20% - 93% RH |
Storage Temperature / RH | -40˚C - +55˚C / 10% - 93% RH |
Dimensions (L x W x H) | 60 mm × 30 mm × 14 mm |
Weight | 40 g/pcs |
