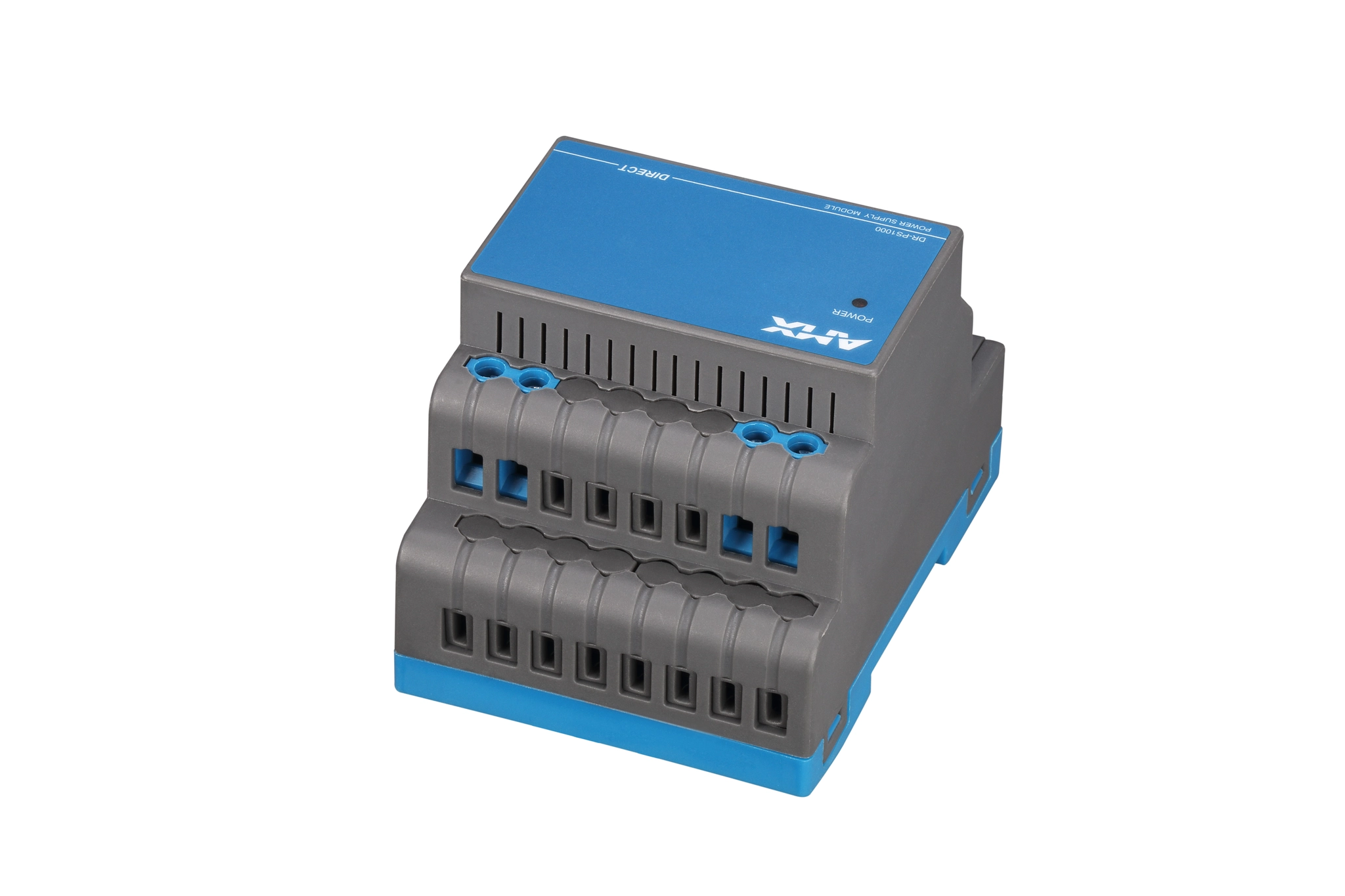

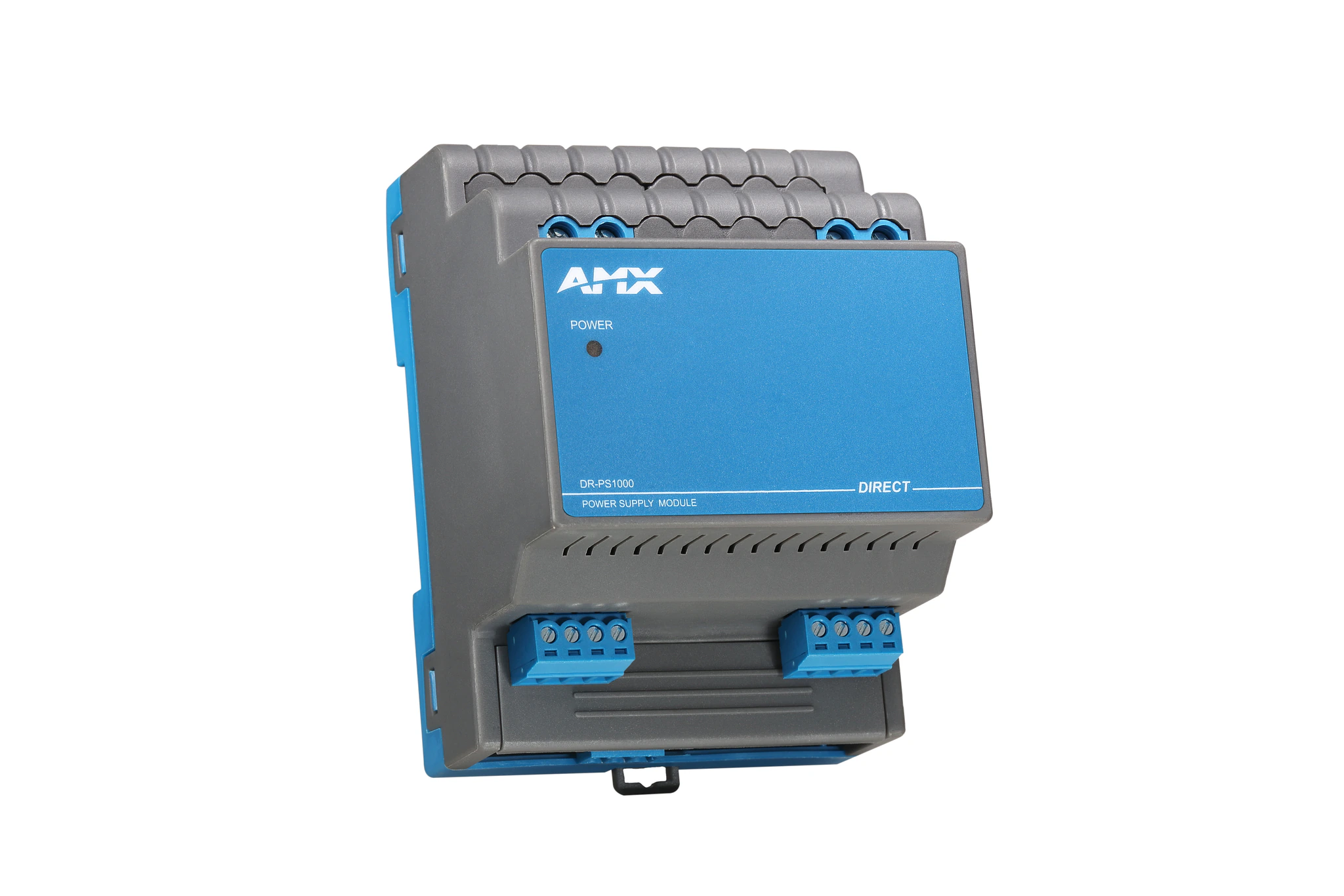

DR-PS1000

POWER SUPPLY MODULE

Larger Images

DR-PS1000 is a reliable power supply module designed for 35mm DIN rail installation and is protected from overcurrent, overload and short circuit.

Features

  • Industrial grade DC-DC isolated power converter accepts AC power from 110V to 220V.
  • Output 24V 0.8A DC power.
  • Designed for standard 35mm DIN rail installation [Space Occupation: 4P (per P:18mm)].
  • DR-Link protocol compliant.
  • 1500W surge protection, 15KV ESD protection, 2500V communication isolation.
  • Unique isolated protection circuit and support hot-plugging operation.

Specifications

Power Supply AC 110 - 220V
Compatible with DR-Link
Output Power DC 24 0.8A
Power Consumption about 2W
Transmission delay ≤ 10uS
Operating Temperature / RH 0˚C - 45˚C / 20% - 93% RH
Storage Temperature / RH -40˚C - +55˚C / 10% - 93% RH
Dimensions (L x W x H) 72 mm × 98 mm × 68 mm
Weight 180 g/pcs
