DX-RX

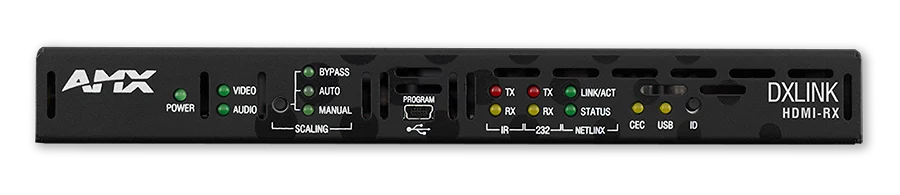

DXLink™ HDMI Receiver Module

Larger Images

The DXLink HDMI Receiver is a distance transport solution that features built-in SmartScale®Technology to deliver HDMI with HDCP that is perfectly scaled for each connected display automatically, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions. It accepts audio, video, control and Ethernet over one standard twisted pair cable up to 100 meters away from a compatible Enova DVX All-In-One Presentation Switcher, Solecis Digital Switcher, DXLink Transmitter Module or DXLink Wallplate; it accepts all this plus power over the same twisted pair cable when used in conjunction with the Enova DGX 8/16/32/64 Digital Media Switchers, Enova DVX-2150HD or DVX-2155HD. Mount the low-profile DXLink Receiver behind a display or above a ceiling mounted projector and control it using the built in RS-232 or IR ports. Plus monitor the connected display's settings, and send IR control signals back to the head end using the same twisted pair cable.

Common Applications

DXLink HDMI Receiver Modules is perfect for receiving HDMI and control signals over long distances from a remote DXLink Transmitter Module, DXLink Wallplates, Solecis Digital Switchers, Enova DGX or compatible Enova DVX. The receiver’s built-in control ports can be used to control a destination device and the ICS Lan port provides IP an access point with used in conjunction with the Enova DGX or compatible Enova DVX.

Downloads

  Version Language Size Uploaded
Data Sheet     621 KB Jul 06, 2018
Manuals
Hardware Reference Manual - DXLink Twisted Pair Transmitters/Receiver     3.83 MB Mar 26, 2018
TSG Enova DGX Board Repalcement Rev N     523 KB Jul 16, 2018
Instructions - Enova DGX I/O Board and Endpoint Compatibility     117 KB Mar 27, 2018
DXLink HID Keyboard and Mouse Supported Devices     156 KB Jul 16, 2018
CAD Drawings
Pictorial Drawing - DXLink HDMI Receiver Module (DWG)     476 KB Apr 09, 2018
Pictorial Drawing - DXLink HDMI Receiver Module (PDF)     453 KB Apr 09, 2018
Bim Objects
DX-RX - BIM Object     Aug 12, 2019
Software
DXLink HDMI Receiver Module Firmware 1.9.28    958 KB Sep 28, 2018
DXLink HDMI Receiver Module Firmware (100 Series Compatible) 1.13.43    1.52 MB Jun 21, 2018
A&E (Architectural & Engineering) Specifications
A&E Spec - AVB-RX-DXLINK-HDMI DXLink HDMI Receiver Module     50.5 KB Jun 28, 2018
Certifications
AVB-TX-HDMI-DXLINK/DX-TX/DX-RX UL Certificate of Compliance     248 KB Apr 25, 2018
AVB-TX-HDMI-DXLINK/DX-TX/DX-RX CE Declaration of Conformity     255 KB Apr 25, 2018
AVB-TX-HDMI-DXLINK/DX-TX/DX-RX IECEE CB Test Certificate     197 KB Apr 25, 2018
Whitepapers
Using SDI with the Enova DGX & DVX     484 KB Apr 25, 2018
Cabling for Success with DXLink     1.6 MB Apr 25, 2018
Quick Start Guides
Quick Start Guide - DXLink Twisted Pair Transmitters/Receiver     720 KB Mar 26, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Only One Cable – Receive audio and video while passing control, Ethernet and power over one twisted pair cable
  • SmartScale Technology – Automatically responds to the display's declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup; this prevents inferior video quality when sources are forced to lower resolutions to support the least capable display in the system
  • Native NetLinx® Control Everywhere - Control connected destination devices using the built-in IR and RS-232 ports
  • Standard Twisted Pair Cable – Save time and effort in installation by leveraging cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
  • HDCP Compliant
  • DXLink Direct Connection with DXLink Wallplates – When DXLink Wallplates are receiving Power over DXLink from the PS-POE-AT-TC or PDXL-2, they can be connected directly to a DXLink Receiver for a point-to-point solution. Solecis Digital Switchers can also be used in point-to-point applications with a DXLink Receiver.

Specifications

Dimensions (HWD) 1" x 8 3/4" x 5 1/5" (2.54 cm x 22.12 cm x 13.08 cm)
Twisted Pair Cable Type & Length Shielded Cat6, Cat6A and Cat7; up to 328 ft (100 m)
USB (HID) (1) USB Mini A/B Connector (“HOST”)
Front Connectors Advanced Configuration Interface*: USB Mini-B Connector (*This feature will be available upon release of a future firmware update)
Back Connectors Local Power: 2.1 mm DC Power Jack; DXLink Input: RJ-45; ICSLAN/Ethernet Port: RJ-45 Connector, TCP/IP Port (ICSLAN 10/100)
HDMI Compatible Formats: HDMI, HDCP, DVI
HDMI Support Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Deep Color Support: 24-bit, 30-bit, 36-bit; 3D Format Support: Yes
HDMI Audio Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio DTS, 2 CH L PCM, 6 CH L-PCM, 8 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; Audio Resolution: 16 bit to 24 bit
HDCP HDCP Support: Yes
Stereo Audio Output Signal Types: Stereo Analog; Output Connectors: 3.5mm Mini-Stereo Jack (Analog Stereo)
Power Supply External, Included: Each HDMI RX ships with a desktop power supply (ENERGY STAR® qualified) with power cord; External, Optional: Power can also be supplied by a DXLink Power sourcing device
Compatible AMX Products Enova DGX 800/1600/3200/6400 Digital Media Switchers; Enova All-In-One Presentation Switchers; DXLink Multi-Format/Decor Style Wallplate Transmitters; Solecis Multi-format/HDMI Digital Switcher; High Power PoE Injector; Power over DXLink Controller
FG Numbers FG1010-500
