MXD-430 (discontinued)

4.3" Modero X® Series G4 Wall/Flush Mount Touch Panel

Larger Images

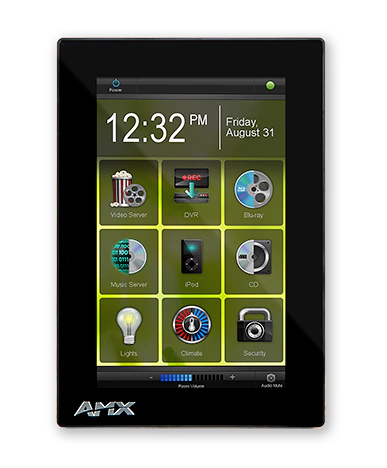

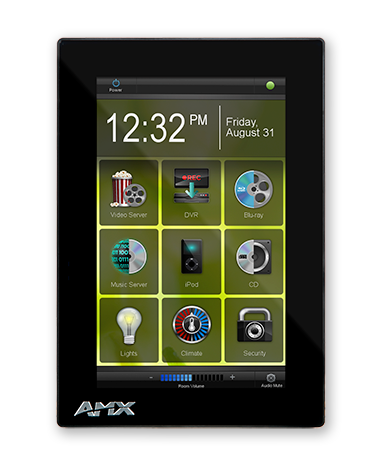

The MXD-430 / 4.3" Modero X® Series Wall Mount Touch Panel is a premium user interface designed for dedicated room control or scheduling. This elegantly-styled touch panel provides fast and smooth animations and transitions, along with elegant styling that looks great in any setting.

The Modero X Series Touch Panels provide several industry firsts including a beautiful, capacitive multi-touch screen that provides users access to multiple applications with minimal navigation. The distinctive appearance will complement even the most sophisticated meeting facilities and homes, with a variety of mounting options for added security and convenience.

Common Applications

  • The MXD-430 is ideal for boardrooms, conference rooms or auditoriums where a panoramic control surface is needed to provide access to multiple functions simultaneously while remaining elegantly unobtrusive.
  • In Higher Education, the MXD-430 is ideal for lecture halls, auditoriums, performing arts theaters and boardrooms that require extensive control capabilities.
  • In residences, it is perfect for kitchens, bedrooms or home offices where it can be used to manage systems throughout the home.
  • The MXD-430 can be used as a scheduling panel for high-end meeting rooms and auditoriums.
  • All Modero X Series Wall Mount panels are ideal for reception areas or other gathering places for displaying master calendars and other information.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Jan 12
    381 KB Jan 12
file type icon Comparison Chart
updated: Jan 12
    173 KB Jan 12
Manuals
file type icon Installation Hardware Reference Manual - Modero X Series G4 Touch Panels
updated: Oct 22
    4.57 MB Oct 22
CAD Drawings
file type icon Pictorial Drawing - MXD-430, 4.3" Modero X Series Wall/Flush Mount Touch Panel (PDF)
updated: Oct 22
    157 KB Oct 22
file type icon Pictorial Drawing - MXD-430, 4.3" Modero X Series Wall/Flush Mount Touch Panel (DXF)
updated: Oct 22
    588 KB Oct 22
file type icon Pictorial Drawing - MXD-430, 4.3" Modero X Series Wall/Flush Mount Touch Panel (DWG)
updated: Oct 22
    292 KB Oct 22
Bim Objects
file type icon MXD-430 - BIM Object
updated: Aug 12
    Aug 12
Software
platform icon G4 Support Files
version 3.3.62, updated: Jul 16
3.3.62     35.7 MB Jul 16
platform icon TPDesign4
version 3.3.674, updated: Dec 29
3.3.674     68.9 MB Dec 29
Firmware
platform icon Modero X Series G4 Touch Panels Firmware
version 2.104.134, updated: Mar 16
2.104.134     47.2 MB Mar 16
Quick Start Guides
file type icon Quick Start Guide - MXD-430 Modero X Series Tabletop Touch Panel
updated: Oct 22
    171 KB Oct 22
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: Oct 23
    2.61 MB Oct 23
file type icon Digital Media Capabilities of the Modero X Series Touch Panels
updated: Apr 25
    1.22 MB Apr 25
Certifications
file type icon Modero X Series 4.3" Touch Panel IECEE CB Test Certificate
updated: Apr 26
    123 KB Apr 26
file type icon Modero X Series 4.3" Touch Panel CE Declaration of Conformity
updated: Apr 26
    255 KB Apr 26
file type icon Modero X Series 4.3" Touch Panel UL Certificate of Compliance
updated: Apr 26
    243 KB Apr 26
Programming Guides
file type icon Configuration and Programming Guide - Modero S/X Series G4 Touch Panels HydraPort Touch Connection Ports
updated: Oct 22
    2.16 MB Oct 22
Safety Sheets
file type icon Safety Instructions - Modero X Series G4 Touch Panels
updated: Oct 22
    103 KB Oct 22
Touch Panel Files
file type icon MXD-430 Portrait Demo Touch Panel File (480x800)
updated: Jul 18
    4.12 MB Jul 18
file type icon MXD-430 Page Transitions Demo Touch Panel File (480x800)
updated: Jul 18
    1.52 MB Jul 18
file type icon MXD-430 RMS Scheduling Touch Panel File (480x800)
updated: Oct 22
    1.84 MB Oct 22
Device Modules
file type icon Panel-to-Panel Video Chat Module
updated: Oct 22
    7.46 MB Oct 22
file type icon Near Field Communications (NFC) Module
updated: Oct 22
    4.81 MB Oct 22
file type icon MET-ECOM/D Metreau Entry Communicator Device Module
updated: Oct 22
    2.72 MB Oct 22
file type icon AMX Communications Application
updated: Oct 22
    16.9 MB Oct 22

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Graphic Leaps & Bounds – The Modero X Series features intuitive UI functionality including: gesturing, swiping, dynamic reordering and enhanced animation capabilities
  • Perfect From Any Angle – Includes In-Plane Switching (IPS), which delivers the widest viewing angles and the most accurate color reproduction on the market
  • Enhanced Usability – External phone connections via Bluetooth or USB and HD video streaming
  • Programmable LEDs – red/green LEDs on the left and right sides useful for indicating when a conference room is available or in use

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.

Specifications

Display Size (WH) 3.3" x 4.8" (82 mm x 120 mm), 4.9" (119 mm) diagonal
Viewable Area (WH) 2.2" x 3.7" (56 mm x 94 mm), 4.3" (109 mm) diagonal
Resolution 480x800
Viewing Angle 40°/80°/65°/65° (Up/Down/Left/Right)
Aspect Ratio 9:16
Touch Overlay Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine AMX G4
Front Panel Components Light Sensor, Proximity Detector, Sleep Button, Programmable Red/Green LEDs. See Data Sheet for details.
Power Consumption Full-On: 6.5 W
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers FG5968-15
