MXT-700 (discontinued)

7" Modero X® Series G4 Tabletop Touch Panel

Larger Images

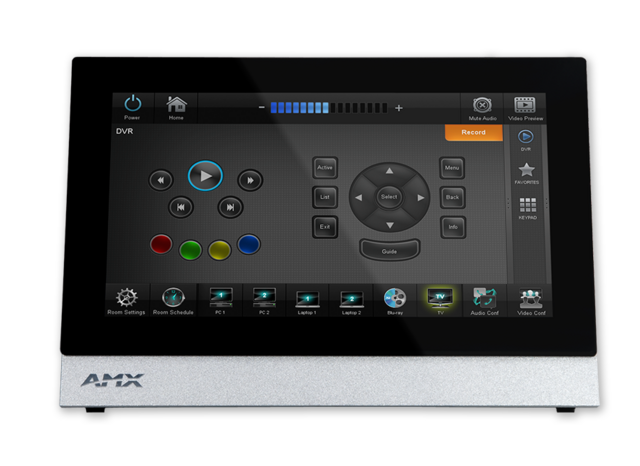

The MXT-700 / 7” Modero X® Series Panoramic Tabletop Touch Panel is a premium user interface designed specifically for dedicated room control. This elegantly-styled touch panel provides fast and smooth animations and transitions, along with elegant styling that looks great in any setting. This new generation of touch panels is built for usability, offering edge-to-edge capacitive touch glass with multi-touch capabilities. It features advanced technology empowering users to operate AV equipment seamlessly, while providing the ultimate in audio and video quality.

The Modero X Series Touch Panels provide several industry firsts including a beautiful, capacitive multi-touch screen that provides users access to multiple applications with minimal navigation. The distinctive, low-profile design is engineered to sit perfectly on a table without obstructing views, and comes with a variety of mounting options for added security and convenience.

Common Applications

  • The MXT-700 is ideal for boardrooms, conference rooms or auditoriums where a panoramic control surface is needed to provide access to multiple functions simultaneously while remaining elegantly unobtrusive.
  • In Higher Education, the MXT-700 is ideal for lecture halls, auditoriums, performing arts theaters and boardrooms that require extensive control capabilities.
  • In residences, it is perfect for main living areas such as kitchens, living rooms, home theaters or home offices where the panoramic control surface can be used to manage systems throughout the house.

Downloads

  Version Language Size Uploaded
Data Sheet
updated: Jul 09, 2018
    366 KB Jul 09, 2018
Comparison Chart
updated: Jul 09, 2018
    173 KB Jul 09, 2018
Manuals
Installation Hardware Reference Manual - Modero X Series G4 Touch Panels
updated: Mar 30, 2018
    4.57 MB Mar 30, 2018
CAD Drawings
Pictorial Drawing - MXT-700, 7" Modero X Series Tabletop Touch Panel (PDF)
updated: Apr 02, 2018
    42.6 KB Apr 02, 2018
Pictorial Drawing - MXT-700, 7" Modero X Series Tabletop Touch Panel (DXF)
updated: Apr 02, 2018
    1.26 MB Apr 02, 2018
Pictorial Drawing - MXT-700, 7" Modero X Series Tabletop Touch Panel (DWG)
updated: Apr 02, 2018
    384 KB Apr 02, 2018
Pictorial Drawing - MXD-700-P, 7" Modero X Series Portrait Wall Mount Touch Panel (PDF)
updated: Apr 02, 2018
    199 KB Apr 02, 2018
Pictorial Drawing - MXD-700-P, 7" Modero X Series Portrait Wall Mount Touch Panel (DXF)
updated: Apr 02, 2018
    4.48 MB Apr 02, 2018
Bim Objects
MXT-700 - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
Software
G4 Support Files
version 3.3.62, updated: Jul 16, 2018
3.3.62    35.7 MB Jul 16, 2018
TPDesign4
version 3.3.674, updated: Mar 14, 2018
3.3.674    68.9 MB Mar 14, 2018
Modero X Series G4 Touch Panels Firmware
version 2.104.134, updated: Mar 16, 2018
2.104.134    47.2 MB Mar 16, 2018
Quick Start Guides
Quick Start Guide - MXT-700 Modero X Series Tabletop Touch Panel
updated: Mar 29, 2018
    159 KB Mar 29, 2018
Application Guides
AMX and the Perfect Meeting Room
updated: Apr 12, 2018
    426 KB Apr 12, 2018
Whitepapers
AMX AV/IT Administrator's Guide
updated: Apr 25, 2018
    2.61 MB Apr 25, 2018
Digital Media Capabilities of the Modero X Series Touch Panels
updated: Apr 25, 2018
    1.22 MB Apr 25, 2018
Certifications
Modero X Series 7"/10.1" Touch Panels IECEE CB Test Certificate
updated: Apr 26, 2018
    155 KB Apr 26, 2018
Modero X Series 7" Touch Panel CE Declaration of Conformity
updated: Apr 26, 2018
    255 KB Apr 26, 2018
Modero X Series 7"/10.1" Touch Panels UL Certificate of Compliance
updated: Apr 26, 2018
    245 KB Apr 26, 2018
Programming Guides
Configuration and Programming Guide - Modero S/X Series G4 Touch Panels HydraPort Touch Connection Ports
updated: Mar 30, 2018
    2.16 MB Mar 30, 2018
Safety Sheets
Safety Instructions - Modero X Series G4 Touch Panels
updated: Mar 30, 2018
    103 KB Mar 30, 2018
Device Modules
Panel-to-Panel Video Chat Module
updated: Apr 12, 2018
    7.46 MB Apr 12, 2018
Near Field Communications (NFC) Module
updated: Apr 12, 2018
    4.81 MB Apr 12, 2018
AMX Communications Application
updated: Apr 12, 2018
    16.9 MB Apr 12, 2018
MET-ECOM/D Metreau Entry Communicator Device Module
updated: Apr 12, 2018
    2.72 MB Apr 12, 2018
Touch Panel Files
MXT/D-700 Landscape Demo Touch Panel File (1024x600)
updated: Jul 18, 2018
    11.6 MB Jul 18, 2018
MXT/D-700 Page Transitions Demo Touch Panel File (1024x600)
updated: Jul 18, 2018
    1.37 MB Jul 18, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features



  • Graphic Leaps & Bounds – The Modero X Series includes intuitive UI functionality including: gesturing, swiping, dynamic reordering and enhanced animation capabilities
  • Perfect From Any Angle – Includes In-Plane Switching (IPS), which delivers the widest viewing angles and the most accurate color reproduction on the market
  • Enhanced Usability – External phone connections via Bluetooth or USB and HD video streaming

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.

Specifications

Display Size (WH) 7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonal
Viewable Area (WH) 6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonal
Resolution 1024x600
Viewing Angle Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio 16:9
Touch Overlay Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine AMX G4
Front Panel Components Light Sensor, Proximity Detector, Sleep button. See Data Sheet for details.
Power Consumption Full-On: 8 W
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers FG5968-04
