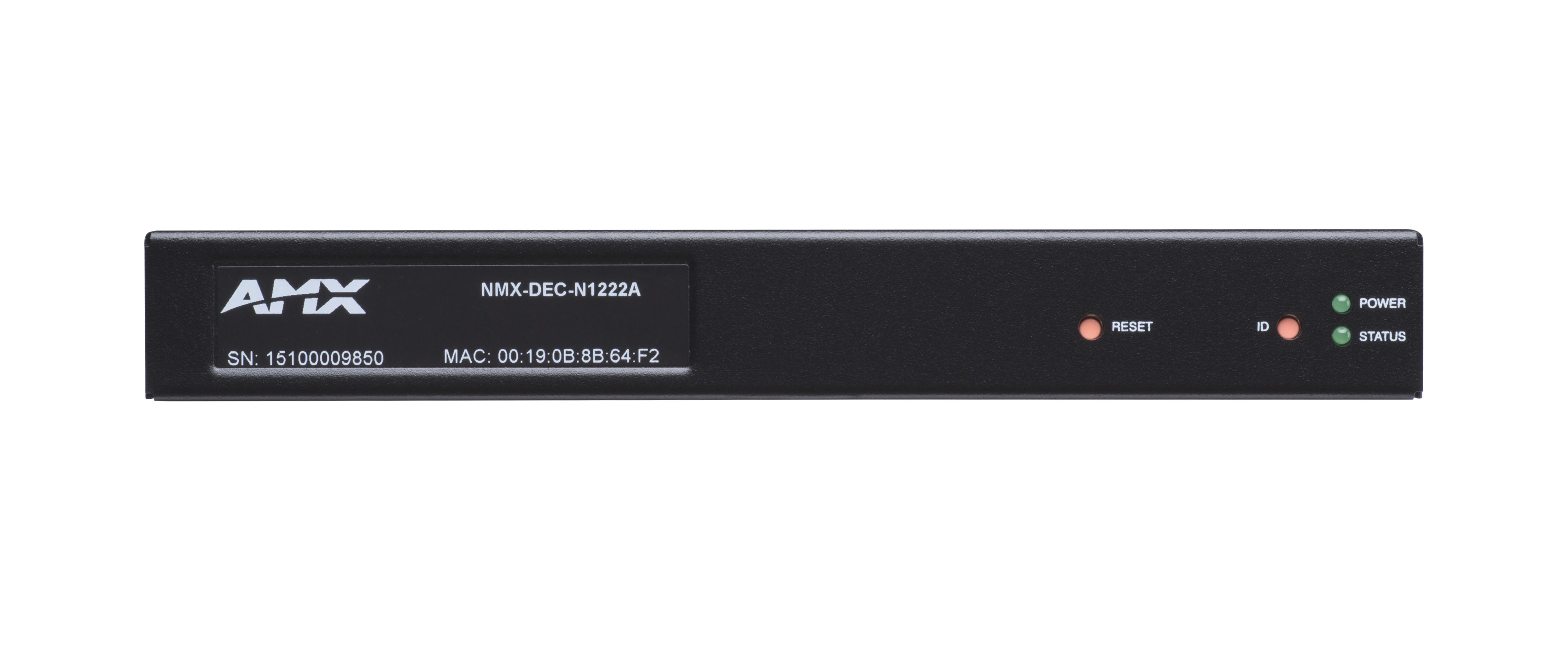

NMX-DEC-N1222A Decoder

Minimal Proprietary Compression Video Over IP Decoder with PoE, AES67 Support

Larger Images

The new NMX-DEC-N1222A model features improved digital pixel reproduction and reduces latency to an industry leading 10-ms for gigabit links. Packetized video streams not only remain visually lossless throughout distribution, they also arrive instantly.

The N1000 Series Encoders and Decoders are an affordable local AV over IP switching solution that packetizes video into a minimally compressed IP format to create anywhere from a small 2×1 seamless presentation switcher up to a mid-size video matrices, particularly in scenarios that require imperceptible latency.

The N1000 Series Encoders and Decoders are an affordable local AV over IP swiching solution that utilizes off-the-shelf network switches.

COMMON APPLICATIONS

The NMX-DEC-N1222 is the perfect solution for any low-latency application such as live in-room presentations in conference rooms and classrooms.

Videos

N1000 Series Update Bring Ultra-Low Latency AV over IP to AMX SVSI



Using Networked AV is as Simple as 1-2-3



AMX SVSI Networked AV N1000, N2000, N3000 Series Encoders/Decoders



AMX SVSI Networked AV Panel Builder GUI for SVSI System Control



AMX SVSI Networked AV: Configuring N-Act On Board Control



Downloads

  Version Language Size Uploaded
Manuals
NetLinx Control for N-Series Products Documentation Addendum
updated: Jul 16, 2018
    1.05 MB Jul 16, 2018
Software
SVSI N1x22A Encoder and Decoder Firmware Updater
version 1.15.18, updated: Jul 17, 2018
1.15.18    44.7 MB Jul 17, 2018
N-ABLE-PC
version 2018-01-29, updated: Sep 18, 2018
2018-01-29    124 MB Sep 18, 2018
Data Sheets
Data Sheet - NMX-DEC-N1222A
updated: Oct 04, 2018
    257 KB Oct 04, 2018
Quick Start Guides
Quick Start Guide - SVSI N1000 MPC Series
updated: Oct 09, 2018
    369 KB Oct 09, 2018
Programming Guides
API Command List - SVSI N1000/N2000 Series
version F, updated: Oct 09, 2018
  190 KB Oct 09, 2018
Install Guides
SVSI Networked AV - Pre-Implementation Guide
updated: Mar 29, 2018
    607 KB Mar 29, 2018
Product Guides
Product Guide - N-Series Minimum Network Requirement
updated: Apr 12, 2018
    88.8 KB Apr 12, 2018
Product Guide - N-Series Video Wall/Crop Limitation
updated: Apr 12, 2018
    72.8 KB Apr 12, 2018
Whitepapers
SVSI Stream Compatibility Guide System Design Guidelines
updated: Apr 25, 2018
    121 KB Apr 25, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Output Scaling – Video scaling at output allows seamless switching from any source, at any resolution, to any display or projector, while preserving video fidelity
  • 1 Frame Latency – Same as HDBaseT
  • Minimal Proprietary Compression (MPC) – Visually lossless MPC algorithm
  • Optional Compression – Available option to disable all compression
  • Power Over Ethernet (PoE) – PoE eliminates the need for power supply
  • Infrared (IR) – Infrared emitter connection allows control of low-cost, IR-only display devices
  • Onboard Control – All N-Series encoders and decoders have on-board, built-in control capability via events that can trigger any number of TCP/UDP commands to other IP controllable devices
  • Unmatched Flexibility – Highly competitive pricing for matrices up to 32x32, or higher with the help of our design experts
  • Two RJ45 Ports – Decoder features two RJ45 network ports (one PoE)
  • Stand Alone or Card – Available as a stand alone device, or card for use with NMX-ACC-N9206

Specifications

FG Numbers FGN1222A-SA

Recommended Accessories

  • NMX-ACC-N9382

    1RU Power Supply 16-Channel 12V for up to 16 SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9101

    Mounting Wings for SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9102

    1RU Rack Shelf for Two Side-by-Side SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9206

    2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
