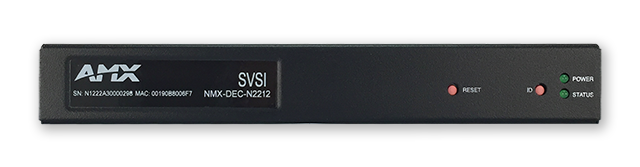

NMX-DEC-N2212 Decoder

JPEG 2000 Digital Cinema Grade Video over IP Decoder, HDMI

Larger Images

The AMX SVSI N2000 Series utilizes JPEG2000 compression for HD, cinema-grade video distribution on the LAN for applications when video quality is top priority. The NMX-DEC-N2212 Decoder is used to decode streams back to DVI or HDMI format for display on any monitor. Pair with the NMX-ENC-N2121 to encode and distribute sources of almost any format onto an existing IP network making that stream available to any endpoint in the facility. With the ability to direct any source stream to any display, large, low-cost switching and distribution systems are simple to deploy without proprietary cabling or dedicated switching hardware.

The NMX-DEC-N2212 includes Local Play, allowing users to upload and save 8 playlists that can contain up to 64 jpeg or PNG files. When a video stream is lost, the stored images will play, preventing blank displays.

Includes serial and single network port. Digital video output only.

Common Applications

The NMX-DEC-N2212 is the perfect solution for matrix switching and distribution of HD, cinema-grade quality video over LAN. Common applications include enterprise, house of worship, entertainment, and stadiums.

Documentation

Downloads

  Version Language Size Uploaded
Data Sheet     676 KB Nov 22, 2016
Manuals
NetLinx Control for N-Series Products Documentation Addendum     1.05 MB Jul 16, 2018
Manuals
Instruction Manual - N2122, N2212, N2222, N2135, N2235, Encoders/Decoders Encoders/Decoders     7.66 MB Mar 28, 2018
Software
SVSI N2xx2 Encoder and Decoder Firmware Updater 1.15.18    67.8 MB Jun 22, 2018
Quick Start Guides
Quick Start Guide - N2122, N2212, N2222 Encoders/Decoders     520 KB Oct 09, 2018
Programming Guides
API Command List - SVSI N1000/N2000 Series   190 KB Oct 09, 2018
Install Guides
SVSI Networked AV - Pre-Implementation Guide     607 KB Mar 29, 2018
Product Guides
Product Guide - N-Series Minimum Network Requirement     88.8 KB Apr 12, 2018
Product Guide - N-Series Video Wall/Crop Limitation     72.8 KB Apr 12, 2018
Whitepapers
SVSI Stream Compatibility Guide System Design Guidelines     121 KB Apr 25, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Input and Output Scaling – Video scaling at either input or output allows seamless switching from any source, at any resolution, to any display or projector, while preserving video fidelity
  • Plug-n-Play – Auto-detect technology reduces installation and programming time
  • Onboard Control – All N-Series encoders and decoders have on-board, built-in control capability via events that can trigger any number of TCP/UDP commands to other IP controllable devices
  • Unlimited Scalability
  • Stand Alone or Card – Available as a stand alone device, or card for use with NMX-ACC-N9206

Specifications

Digital Video Input Network video over Ethernet via RJ45 port or fiber via 1G SFP port
Video Outputs HDMI, DVI-D (through adapter)
Video Formats HDMI, DVI-D (through adapter), HDCP content protection support
Output Resolutions Supports most common HD up to 1920x1200. See Data Sheet for details.
Audio Input Signal Types Network video over Ethernet via RJ45
Audio Output Signal Types Embedded audio on DVI-D or HDMI (through adapter)
HDMI Audio Formats 8ch PCM
Latency 50 ms for 720p60; 140ms for 1080p60. See Data Sheet for details.
Communications Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP. See Data Sheet for details.
FG Numbers FGN2212-SA

Recommended Accessories

  • NMX-ACC-N9382

    1RU Power Supply 16-Channel 12V for up to 16 SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9101

    Mounting Wings for SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9102

    1RU Rack Shelf for Two Side-by-Side SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9206

    2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
