NMX-ENC-N1122 Encoder (discontinued)

Minimal Proprietary Compression Video Over IP Encoder

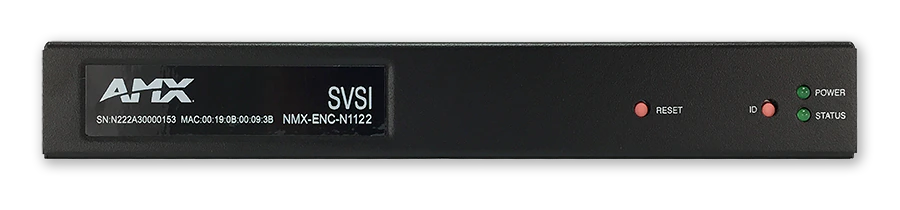

NMX-ENC-N1122 Encoder
Larger Images

The NMX-ENC-N1122 provides users with two RJ45 network ports (one POE). All MPC N1000 series includes output scaling, serial, balanced audio, and HDMI video connection. The N1000 Series is the perfect solution for in-room or small video matrices under 32×32 in size.

The N1000 Series Encoders and Decoders are an affordable local AV over IP switching solution that packetizes video into a minimally compressed IP format to create anywhere from a small 2×1 seamless presentation switcher up to a large 32×32 matrix switcher using off-the-shelf layer-3 network switches.

The ability to send IP Media for distribution using common managed network switches in any size and configuration makes N1000 solutions extremely flexible and easy to deploy.

Common Applications

The NMX-ENC-N1122 is the perfect solution for any low-latency application and video matrix smaller than 32x32. Common applications include classrooms, conference rooms, performing arts, and sports bars.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    708 KB Mar 2024
Manuals
file type icon Instruction Manual - SVSI N1000 Minimal Compression Video over IP
updated: Jun 2020
    6.76 MB Jun 2020
file type icon NetLinx Control for N-Series Products Documentation Addendum
updated: Oct 2020
    1.05 MB Oct 2020
Bim Objects
file type icon NMX-ENC-N1122 - BIM Object
updated: Aug 2019
    Aug 2019
Firmware
platform icon SVSI N1x22 Encoder and Decoder Firmware Updater
version 1.15.18, updated: Nov 2021
1.15.18     67.8 MB Nov 2021
Quick Start Guides
file type icon Quick Start Guide - SVSI N1000 MPC Series
updated: Oct 2018
    369 KB Oct 2018
Install Guides
file type icon SVSI Networked AV - Pre-Implementation Guide
updated: Aug 2023
    1.15 MB Aug 2023
Product Guides
file type icon Product Guide - N-Series Video Wall/Crop Limitation
updated: Oct 2020
    72.8 KB Oct 2020
file type icon Product Guide - N-Series Minimum Network Requirement
version B, updated: Oct 2023
  166 KB Oct 2023
file type icon N-Series Stream Compatibility
updated: Feb 2024
    431 KB Feb 2024

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Output Scaling – Video scaling at output allows seamless switching from any source, at any resolution, to any display or projector, while preserving video fidelity
  • 1 Frame Latency – Same as HDBaseT
  • Minimal Proprietary Compression (MPC) – Visually lossless MPC algorithm
  • Power Over Ethernet (PoE) – PoE eliminates the need for power supply
  • Infrared (IR) – Infrared emitter connection allows control of low-cost, IR-only display devices
  • Onboard Control – All N-Series encoders and decoders have on-board, built-in control capability via events that can trigger any number of TCP/UDP commands to other IP controllable devices
  • Unmatched Flexibility – Highly competitive pricing for matrices up to 32x32
  • Separate Inputs – Separate HDMI and VGA input connectors on the encoder
  • Two RJ45 Ports – Encoder features two RJ45 network ports (one PoE)
  • Stand Alone or Card – Available as a stand alone device, or card for use with NMX-ACC-N9206

Specifications

Digital Video Input HDMI, DVI-D (through adapter), RGB/VGA
Analog Video Input HD-15 VGA, Component, supported through a passive adapter
Video Outputs Network video over Ethernet via RJ45 port
Video Formats HDMI, DVI-D (through adapter), Dual-Mode DisplayPort (DP++), HDCP content protection support, RGBHV, YPbPr; DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter
Progressive Input Resolutions Supports most common HD up to 1920x1200. See Data Sheet for details.
Interlaced Input Resolutions Supports 1080i60. See Data Sheet for details.
Analog Input Resolutions Supports most common HD up to 1920x1200. See Data Sheet for details.
Analog-To-Digital Conversion 8-bit 165 MHz per each of three color channels
Audio Input Signal Types Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced)
Audio Output Signal Types Ethernet
HDMI Audio Formats 8ch PCM
Analog Audio Formats Stereo 2-channel
Audio Analog-to-Digital Conversion 16-bit 32 kHz, 44.1 kHz and 48 kHz
Latency 10 ms at 60 fps. See Data Sheet for details.
Communications Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP; HDMI: HDCP, EDID management. See Data Sheet for details.
FG Numbers FGN1122-SA
