NMX-ENC-N2615-WP Encoder Wallplate

MWC 4K60 4:4:4 Encoder Wallplate (US & EU/UK)

Larger Images

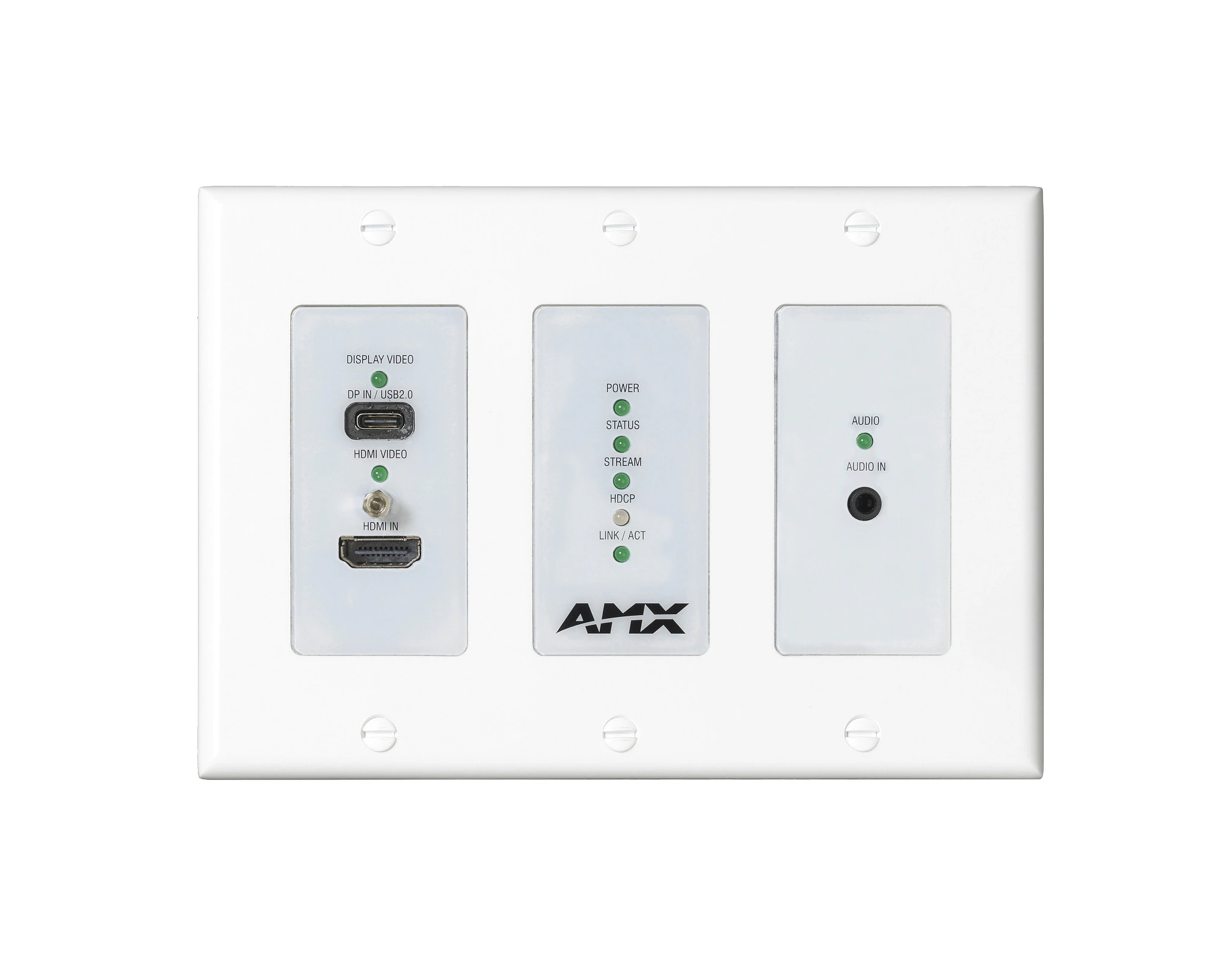

The AMX SVSI NMX-ENC-N2615-WP is a cost-effective, powerfully robust encoder wallplate. It features a high-quality, low-latency 4K60 4:4:4 MWC codec that is ideal for encoding both live video and detailed content in classrooms, meeting spaces, courtrooms, bars, and other applications.

Additional features include transport of full-bandwidth USB 2.0 signals, video preview images viewable from the built-in web interface or from a touch panel, and enhanced support for high-security networks. The wallplate includes an HDMI input and a USB-C input which supports both video and USB 2.0 on a single connector.

These Encoder Wallplates are available in two models:

NMX-ENC-N2615-WP-NA (US Version) and NMX-ENC-N2615-WP-EK (EU/UK Version). Models include both black and white faceplate inserts and wallplate covers to ensure they blend seamlessly within modern decors.

Common Applications

The N2600 Series is ideal for almost any streaming application but is especially applicable for colleges and universities, corporate, casinos, hospitality, government and many more. High-quality, low-latency 4K60 4:4:4 MWC streaming is perfect for transmitting both live video and detailed content within classrooms, meeting spaces, courtrooms and bars. N2600 Wallplate Encoders create an elegant and secure installation when installed near a desk or in a lectern.

Downloads

  Version Language Size Uploaded
Manuals
file type icon Instruction Manual – AMX N2600 Series Wallplates
en version B, updated: Jul 2023
en  5.14 MB Jul 2023
CAD Drawings
file type icon Pictorial Drawing (PDF) – NMX-ENC-N2615-WP
updated: Feb 2023
    477 KB Feb 2023
file type icon Pictorial Drawing (DWG) – NMX-ENC-N2615-WP
updated: Feb 2023
    1.01 MB Feb 2023
file type icon Pictorial Drawing (DXF) – NMX-ENC-N2615-WP
updated: Feb 2023
    817 KB Feb 2023
Software
file type icon N-Able Control Software
en updated: Sep 2023
  en  Sep 2023
Firmware
platform icon N-Series N26x5 Video Encoder/Decoder Firmware
version 1.1.9, updated: Jul 2023
1.1.9     52.5 MB Jul 2023
Data Sheets
file type icon Data Sheet – NMX-ENC-N2615-WP
en version A, updated: May 2023
en  308 KB May 2023
Declaration Of Conformities
file type icon UKCA Declaration of Conformity - N26x5-WP
updated: Aug 2023
    243 KB Aug 2023
file type icon CE Declaration of Conformity - N26x5-WP
updated: Aug 2023
    235 KB Aug 2023
Programming Guides
file type icon Direct Control API - N26x5-WP
version A, updated: Sep 2023
  324 KB Sep 2023
Product Guides
file type icon Product Guide - N-Series Stream Compatibility Guide
updated: May 2023
    331 KB May 2023
Certifications
file type icon UL Certificate of Compliance - N26x5-WP
en updated: Apr 2023
  en  174 KB Apr 2023
file type icon IECEE CB Certificate - N26x5-WP
en updated: Aug 2023
  en  239 KB Aug 2023
Quick Start Guides
file type icon Quick Start Guide - NMX-ENC-N2615-WP
en updated: Apr 2023
  en  502 KB Apr 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • High-Quality, Low-Latency 4K60 MWC encoding
  • Video Preview viewable from the built-in web interface or from a touch panel
  • USB 2.0 Transport
  • HDMI input and USB-C input that supports both video and USB 2.0
  • High security network support and features, including multicast, VLAN tagging and QoS
  • PoE powered with low-power mode for energy savings
  • Open Direct-Control API

Specifications

Video Inputs HDMI, USB-C
Video Outputs Network video over Ethernet via RJ45 port
Video Resolution Support Supports most common resolutions up to 4096 x 2160 - Reference Data Sheet for Specific Resolution Support
Audio Inputs Embedded audio on HDMI, USB-C or Analog Stereo (Unbalanced)
Audio Outputs Network PCM audio over Ethernet via RJ45
Ports USB Type C Socket, HDMI Type A Socket, 3.5mm stereo audio port, Gigabit Ethernet port with PoE support (rear),
Environmental Temperature - 32° to 104°F (0° to 40°C)
Humidity - 10% to 90% RH (non-condensing)
Heat Dissipation - Up to ~44 BTU/hr
Dimensions (H x W x D) AMX-N26E011: 4.2” x 5.2” x 2.3” (106.68mm x 132.08mm x 58.42mm)
AMX-N26E011-EK: 2.8“ x 8.3“ x 2“ (71.12mm x 210.82mm x 50.8mm)
Product Weight AMX-N26E011: 0.92 lbs (0.42 kg)
AMX-N26E011-EK: 0.77 lbs (0.35 kg)
FG Numbers AMX-N26E011 (NMX-ENC-N2615-NA)
AMX-N26E011-EK (NMX-ENC-N2615-EK)
