AMX NMX-VCC-1000

Larger Images

Replacement Products

NMX-VCC-1000-WM

Sereno™ Camera Wall Mount
CBL-USB-FL2

USB 3.0 MyTurn™ Ready Flat Cable

This product is currently unavailable to order.

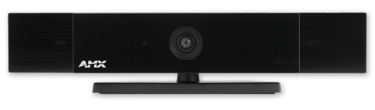

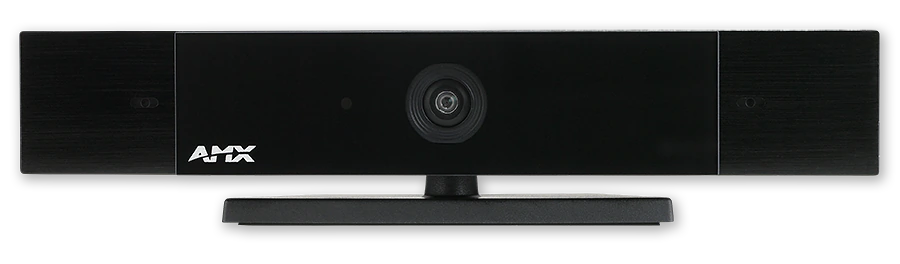

Sereno is a video conferencing camera designed to support conferencing applications in huddle spaces and smaller meeting rooms. Sereno provides HD quality video with outstanding voice capture to deliver exceptional conferences.

Common Applications

Use Sereno in huddle rooms for video conferencing and/or in conference rooms and boardrooms where microphone disconnect and mechanical video shutoff is critical for privacy when camera is not in use.

Downloads

	Version	Language	Size	Uploaded
Data Sheet updated: Mar 13			261 KB	Mar 13
Product Highlight updated: Mar 13			1.52 MB	Mar 13
CAD Drawings
Pictorial Drawing - NMX-VCC-1000 Sereno Video Conferencing Camera (PDF) updated: Apr 06			110 KB	Apr 06
Pictorial Drawing - NMX-VCC-1000 Sereno Video Conferencing Camera (DXF) updated: Apr 06			556 KB	Apr 06
Pictorial Drawing - NMX-VCC-1000 Sereno Video Conferencing Camera (DWG) updated: Apr 06			186 KB	Apr 06
Bim Objects
NMX-VCC-1000 - BIM Object updated: Aug 12				Aug 12
Quick Start Guides
Quick Start Guide - NMX-VCC-1000 Sereno Camera System updated: Oct 22			220 KB	Oct 22
Certifications
NMX-VCC-1000 - Video Conferencing Camera CE Declaration of Conformity updated: Apr 25			345 KB	Apr 25
A&E (Architectural & Engineering) Specifications
A&E Spec - NMX-VCC-1000 Sereno Video Conferencing Camera updated: Jun 27			65.5 KB	Jun 27

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

1080p HD Video – Excellent video image quality
120° Field-of-View – See all meeting participants even in smaller rooms
Beamforming Microphones Focuses on Voice Capture – Filters out unwanted noise, making it easier for participants in a web conference to hear the person speaking
Mechanical Shutter Blocks Video and Microphones – Provides security and confidentiality for business and government applications
Flexible Mounting Options – Swivel base makes Sereno easy to install and adjust; wall mount kit available as an accessory

Specifications

Dimensions (HWD)	1 3/4" x 7 1/2" x 1 1/2" (43.7 mm x 190 mm x 38.6 mm)
Weight	0.4 lbs (0.18 kg)
USB Cable Length	5 feet (1.5 meters)
Camera Resolution	Up to 1920x1080p 30 fps
Camera Encoding Format	H.264/MJEPG/YUY2
Camera Field of View	120 Degree Wide Angle
Camera Digital Zoom	4x Digital Zoom
Camera Microphones	Dual with beamforming technology
FG Numbers	FG3211-10
