NXB-KNX (discontinued)

KNX Communications Gateway

Larger Images

Now Enables AMX Control Of KNX Devices
The NetLinx NXB-KNX Communications Gateway allows NetLinx Integrated Controllers the ability to seamlessly control, integrate and communicate with homes and buildings that utilize the KNX communication protocol. KNX is the world's first open, royalty free, and platform independent standard for home and commercial building control.

Common Applications

Ideal for building control, ranging from lighting and shade control to various security systems, HVAC, water control, energy management, metering as well as audio and more.


  Version Language Size Uploaded
file type icon Instruction Manual - NXB-KNX Communications Gateway
updated: Oct 2020
    1.6 MB Oct 2020
Quick Start Guides
file type icon Quick Start Guide - NXB-KNX Communications Gateway
updated: Oct 2020
    203 KB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


  • Index filtering tables for portability between systems
  • Zero Configuration support for immediate system recognition
  • Two-Way Control
  • Extended data-point type allows time, date, etc. to be captured and used in RMS
  • 64 MB RAM / 256 MB FLASH
  • Ethernet Interface to AMX control equipment


Dimensions (HWD) With feet: 1 5/8" x 5 1/2" x 4 1/8" (4.2 cm x 14.1 cm x 10.4 cm), Without feet: 1 1/2" x 5 1/2" x 4 1/8" (3.9 cm x 14.1 cm x 10.4 cm), RU: 1
Weight 1.45 lbs (0.65 kg)

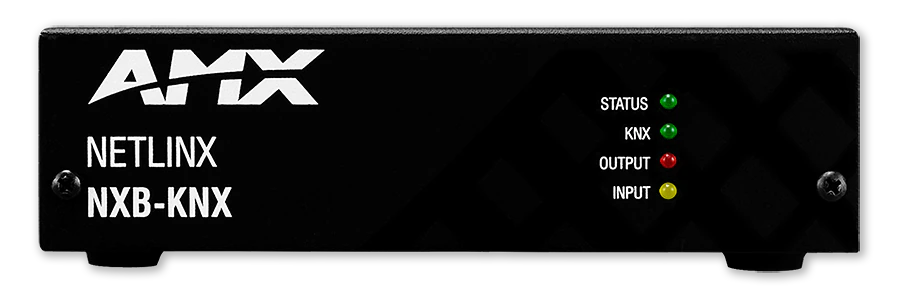

Front Panel Components Status LED (green), KNX LED (green), Output LED (red), Input LED (yellow). See Data Sheet for details.
Rear Panel Connectors SEE DATASHEET FOR DETAILS: KNX 2-pin captive-wire connector, Ethernet Port, SPD (speed), L/A (link/activity)
Power Over Ethernet (PoE) No local Power Supply needed, IEEE 802.3af Compliant
Memory 64 MB of RAM, 256 MB of FLASH
FG Numbers FG2031-01
