SP-08-E-US (discontinued)

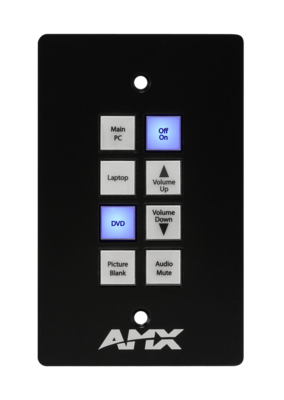

8-Button KeyPad (US) with Ethernet

SP-08-E-US
Larger Images

Novara Ethernet KeyPads feature an 8-button layout, integrated Ethernet interface and fit standard 1-gang US back box sizes. These KeyPads are extremely versatile, they can be used to directly interface with NetLinx Controllers by Ethernet connection. For added convenience, your Ethernet connection also powers your KeyPad, thus reducing the need for an external power supply.

Common Applications

A good choice for expanding control in schools, government and other applications requiring cost-effective control without having to re-train users that are already familiar with the look and operation of AMX ControlPads.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    279 KB Mar 2024
Firmware
platform icon Keypads with Ethernet Firmware
version 1.2.33, updated: Jun 2020
1.2.33     300 KB Jun 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Dimensions (HWD) 4 11/16" x 2 15/16" x 1 1/16" (11.9 cm x 7.4 cm x 2.62 cm)
Mounting Fits standard single-gang US conduit boxes
Front Panel Components 8 buttons; blue, backlit buttons with controllable feedback
Rear Panel Components Ethernet: RJ-45 Ethernet Connector, 10/100
Power PoE (Power over Ethernet), 802.3af, class 0 , Power Connector: (1) RJ-45 Ethernet Connector, 10/100
FG Numbers

FG1312-08-SW (White)
FG1312-08-SB (Black)
FG1312-08-SA (Brushed Aluminum)
