NMX-VCC-1000

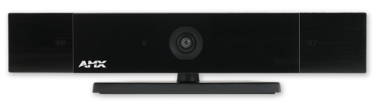

Sereno™ Video Conferencing Camera

Larger Images

Sereno is a video conferencing camera designed to support conferencing applications in huddle spaces and smaller meeting rooms. Sereno provides HD quality video with outstanding voice capture to deliver exceptional conferences.

Common Applications

Use Sereno in huddle rooms for video conferencing and/or in conference rooms and boardrooms where microphone disconnect and mechanical video shutoff is critical for privacy when camera is not in use.

Downloads

  Version Language Size Uploaded
Data Sheet
updated: Jul 06, 2018
    261 KB Jul 06, 2018
Product Highlight
updated: Nov 05, 2016
    1.52 MB Nov 05, 2016
CAD Drawings
Pictorial Drawing - NMX-VCC-1000 Sereno Video Conferencing Camera (PDF)
updated: Apr 06, 2018
    110 KB Apr 06, 2018
Pictorial Drawing - NMX-VCC-1000 Sereno Video Conferencing Camera (DXF)
updated: Apr 06, 2018
    556 KB Apr 06, 2018
Pictorial Drawing - NMX-VCC-1000 Sereno Video Conferencing Camera (DWG)
updated: Apr 06, 2018
    186 KB Apr 06, 2018
Bim Objects
NMX-VCC-1000 - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
Quick Start Guides
Quick Start Guide - NMX-VCC-1000 Sereno Camera System
updated: Mar 26, 2018
    220 KB Mar 26, 2018
Certifications
NMX-VCC-1000 - Video Conferencing Camera CE Declaration of Conformity
updated: Apr 25, 2018
    345 KB Apr 25, 2018
A&E (Architectural & Engineering) Specifications
A&E Spec - NMX-VCC-1000 Sereno Video Conferencing Camera
updated: Jun 27, 2018
    65.5 KB Jun 27, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features



  • 1080p HD Video – Excellent video image quality
  • 120° Field-of-View – See all meeting participants even in smaller rooms
  • Beamforming Microphones Focuses on Voice Capture – Filters out unwanted noise, making it easier for participants in a web conference to hear the person speaking
  • Mechanical Shutter Blocks Video and Microphones – Provides security and confidentiality for business and government applications
  • Flexible Mounting Options – Swivel base makes Sereno easy to install and adjust; wall mount kit available as an accessory



Specifications

Dimensions (HWD) 1 3/4" x 7 1/2" x 1 1/2" (43.7 mm x 190 mm x 38.6 mm)
Weight 0.4 lbs (0.18 kg)
USB Cable Length 5 feet (1.5 meters)
Camera Resolution Up to 1920x1080p 30 fps
Camera Encoding Format H.264/MJEPG/YUY2
Camera Field of View 120 Degree Wide Angle
Camera Digital Zoom 4x Digital Zoom
Camera Microphones Dual with beamforming technology
FG Numbers FG3211-10
