AMX NXB-KNX

Larger Images

Now Enables AMX Control Of KNX Devices
The NetLinx NXB-KNX Communications Gateway allows NetLinx Integrated Controllers the ability to seamlessly control, integrate and communicate with homes and buildings that utilize the KNX communication protocol. KNX is the world's first open, royalty free, and platform independent standard for home and commercial building control.

Common Applications

Ideal for building control, ranging from lighting and shade control to various security systems, HVAC, water control, energy management, metering as well as audio and more.

Downloads

	Version	Language	Size	Uploaded
Manuals
Instruction Manual - NXB-KNX Communications Gateway updated: Oct 2020			1.6 MB	Oct 2020
Quick Start Guides
Quick Start Guide - NXB-KNX Communications Gateway updated: Oct 2020			203 KB	Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

Index filtering tables for portability between systems
Zero Configuration support for immediate system recognition
Two-Way Control
Extended data-point type allows time, date, etc. to be captured and used in RMS
64 MB RAM / 256 MB FLASH
Ethernet Interface to AMX control equipment

Specifications

Dimensions (HWD)	With feet: 1 5/8" x 5 1/2" x 4 1/8" (4.2 cm x 14.1 cm x 10.4 cm), Without feet: 1 1/2" x 5 1/2" x 4 1/8" (3.9 cm x 14.1 cm x 10.4 cm), RU: 1
Weight	1.45 lbs (0.65 kg)

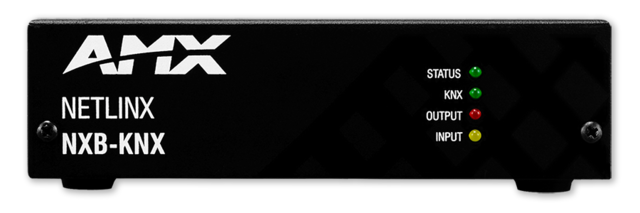

Front Panel Components	Status LED (green), KNX LED (green), Output LED (red), Input LED (yellow). See Data Sheet for details.
Rear Panel Connectors	SEE DATASHEET FOR DETAILS: KNX 2-pin captive-wire connector, Ethernet Port, SPD (speed), L/A (link/activity)
Power Over Ethernet (PoE)	No local Power Supply needed, IEEE 802.3af Compliant
Memory	64 MB of RAM, 256 MB of FLASH
FG Numbers	FG2031-01
