DR-KP0606

CONTROL KEYPAD

Larger Images

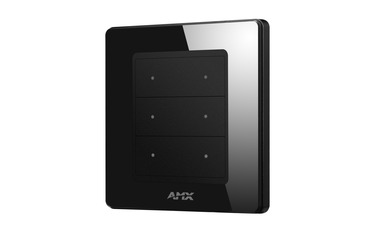

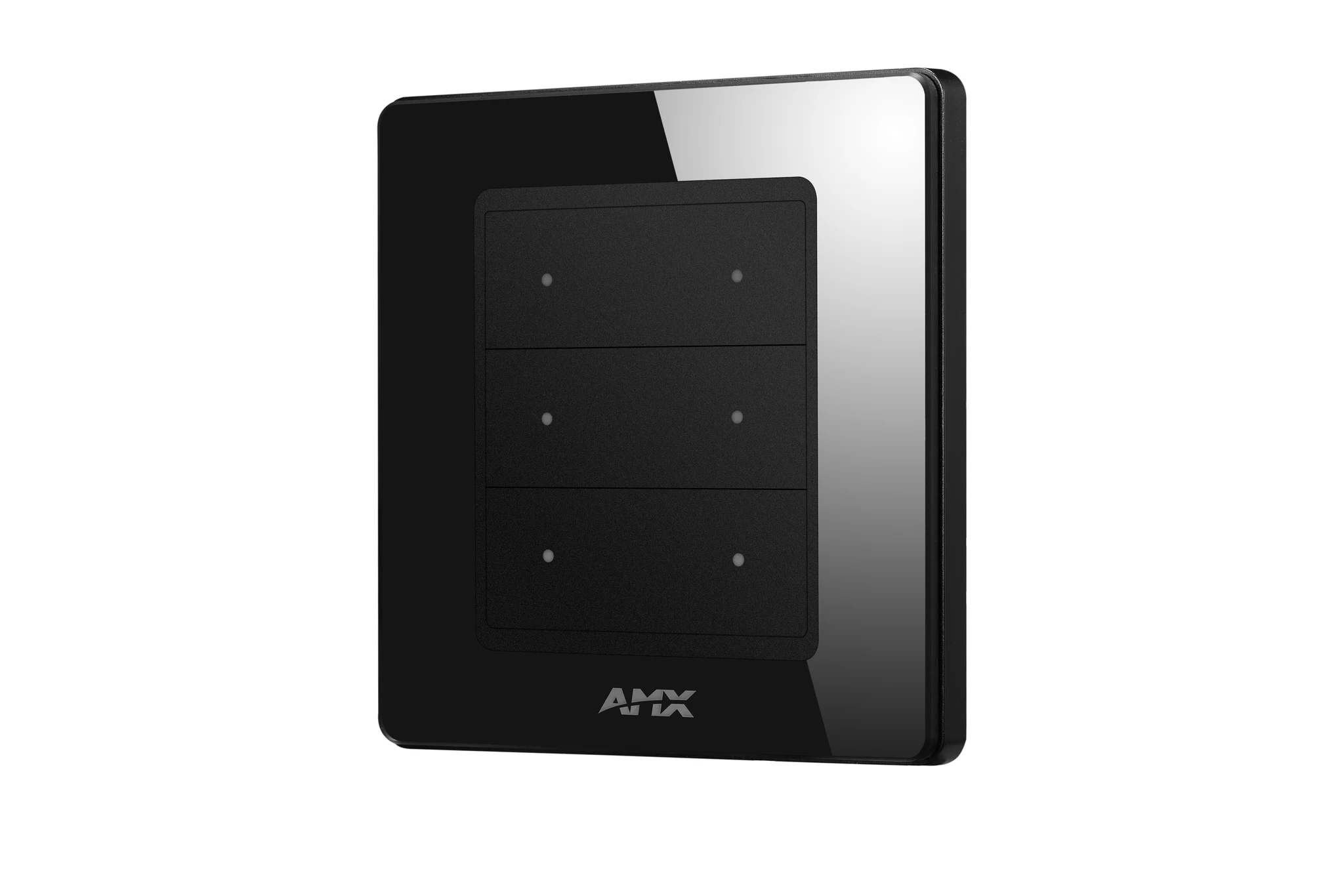

DR-KP0606 is designed for type 86 box installation and matches perfectly with popular faceplates. Each of the six programmable keypad buttons has its status indicated through an LED. Reset-mode touch switch is utilized to realize stable performance of the entire unit. Finished in tempered glass, the keypad provides two IO input channels for connection of sensors.

Documentation

Features

  • 6 custom-engravable keypad buttons.
  • Programmable for tap, double-tap, and press and hold.
  • 2 sense circuits with 24V power supply.
  • Sense interface uses opto-isolator circuit and is protected from high voltage and overcurrent.
  • Designed for Type 86 box installation and supports cascade connection of multiple faceplates.
  • Tempered glass finish with customizable color options.

Specifications

Keypad buttons 6 single-action pushbuttons
Finish Black tempered glass, other color customizable
Feedback LED 6 green LED feedback indicators
Sensor Interface 2 × contact closure (on-off signal)
Switch Mode Reset-mode touch switch
Communication interface 1 × DR-Link
Power Supply DC24V 20 mA
Operating Temperature / RH 0˚C - 45˚C / 20% - 93% RH
Storage Temperature / RH -40˚C - +55˚C / 10% - 93% RH
Dimensions (L x W x H) 90 mm × 90 mm × 22 mm
Weight 127 g/pcs
