Epica® Single Mode Fiber Input/Output Board, Simplex

Limited Availability
Larger Images

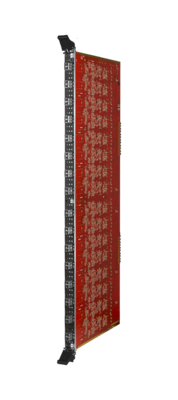

The EPICADGX288-VIO-SMF-S is a Simplex Single Mode Fiber Input/Output Board designed for use with the Epica 288 Fiber Matrix Switcher. Each board contains 16 connections, and each connection is both an input and an output connection. Thus, each board is a full 16x16 configuration.

Compatible with DXLink Multi-Format Simplex Transmitters and DXLink HDMI Simplex Receivers, the board can also receive and send signals from or to any Enova DGX system utilizing simplex fiber boards. This makes the Epica DGX 288 the ideal solution for very large infrastructures that require multiple systems that are directed to a central hub for wider distribution.

Pass crystal clear, high resolution video with zero compression, along with audio. Compatible DXLink Fiber Receivers feature SmartScale® Technology which automatically responds to the display's declared EDID information, scales the video resolution, and adjusts the video parameters to match the display's native format. SmartScale Technology ensures every display operates at its preferred resolution and eliminates the incompatibilities that can arise in matrix switching systems when the output resolution of the source is not supported by some or all of the displays in the system.


  Version Language Size Uploaded
file type icon Data Sheet
updated: Nov 2023
    232 KB Nov 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


Fiber Cable Types and Supported Length Single mode – 9/125 mm @ 6.21 miles (10 km)
Audio Format Support Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS 2 CH through 8 CH L-PCM Dolby Digital and DTS support up to 48 kHz, 5.1 channels
4K Not supported
Compatible Video Formats Signal support depends on the type of DXLink Fiber Transmitters/Receivers used. HDMI w/ HDCP w/ embedded digital audio, DVI w/ or w/o HDCP or embedded digital audio Analog video input (RGBHV, RGBS, RGsB, Y/Pb/Pr) Digital audio or analog stereo audio
FG Numbers FG1055-520
