EXB-IRS4

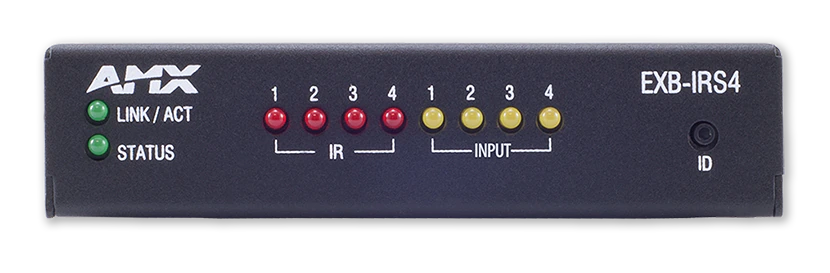

ICSLan IR/S Interface, 4 IR/S and 4 Inputs

Larger Images

ICSLan Device Control Boxes allow users to manage devices remotely from a Controller over an Ethernet network. This provides a beautifully simple method for a centralized control environment allowing users to share a controller among multiple smaller rooms versus controllers in every room. Ethernet has become the industry standard for connecting devices and the ICSLan Device Control Boxes make it easy to introduce control to equipment such as projectors located extended distances from a Controller. Additionally, the number of ports on an AMX Controller can be expanded when all ports are fully populated. Because they employ Native NetLinx technology, it is extremely simple to add an EXB to an AMX installation.

Common Applications

Conference rooms, classroom or auditoriums where a single controller is used to manage multiple devices such as projectors spread throughout a facility or to add additional ports to an AMX Central Controller.

Downloads

  Version Language Size Uploaded
Data Sheet
updated: Jul 06, 2018
    314 KB Jul 06, 2018
EXB-IRS4 Quickstart Guide
updated: Jul 09, 2018
    128 KB Jul 09, 2018
Manuals
Instruction Manual - ICSLan Device Control Boxes
updated: Mar 26, 2018
    854 KB Mar 26, 2018
CAD Drawings
Pictorial Drawings - EXB-IRS4, ICSLan IR/S Interface, 4 IR/S and 4 Inputs (PDF)
updated: Apr 06, 2018
    144 KB Apr 06, 2018
Pictorial Drawings - EXB-IRS4, ICSLan IR/S Interface, 4 IR/S and 4 Inputs (DXF)
updated: Apr 06, 2018
    50.7 MB Apr 06, 2018
Bim Objects
EXB-IRS4 - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
Software
ICSLan Device Control Boxes Firmware
version 1.0.49, updated: Sep 01, 2018
1.0.49    232 KB Sep 01, 2018
Quick Start Guides
Quick Start Guide - ICSLan Device Control Boxes
updated: Mar 26, 2018
    128 KB Mar 26, 2018
Whitepapers
AMX AV/IT Administrator's Guide
updated: Apr 25, 2018
    2.61 MB Apr 25, 2018
Certifications
ICSLan Device Control Boxes CE Declaration of Conformity
updated: Apr 25, 2018
    255 KB Apr 25, 2018
ICSLan Device Control Boxes UL Certificate of Compliance
updated: Apr 25, 2018
    243 KB Apr 25, 2018
A&E (Architectural & Engineering) Specifications
A&E Spec - EXB-IRS4 ICSLan IR/S Interface, 4 IR/S and 4 Inputs
updated: Jun 27, 2018
    51.5 KB Jun 27, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Enable Ports over Ethernet – Provides a future proof solution to add ports anywhere
  • Easy to Program – Programming is identical to any other device ports on the Controller
  • Power over Ethernet – Eliminate the need for a power source at the install location
  • Small Form Factor – Compact design makes it easy to hide for a clean installation
  • NetLinx Studio Tools – Configuration tools make ICSLan Device Control Boxes easy to deploy

Specifications

Dimensions (HWD) 1" x 4 3/8" x 5 1/8" (2.5 cm cm x 11.1 cm x 13.00 cm), RU: 1
Weight 1 lb (454 g)
Power Over Ethernet (PoE) No local Power Supply needed
Power Draw Typical power draw: 1.9 Watts, Max power draw: 2.4 Watts
Connectors (1) RJ-45 ICS-LAN Ethernet Connector, (1) 8-Pin 3.5mm captive-screw terminal for I/R ports, (1) 6-Pin 3.5mm captive-screw terminal for inputs
FG Numbers FG2100-23
