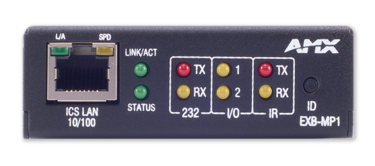

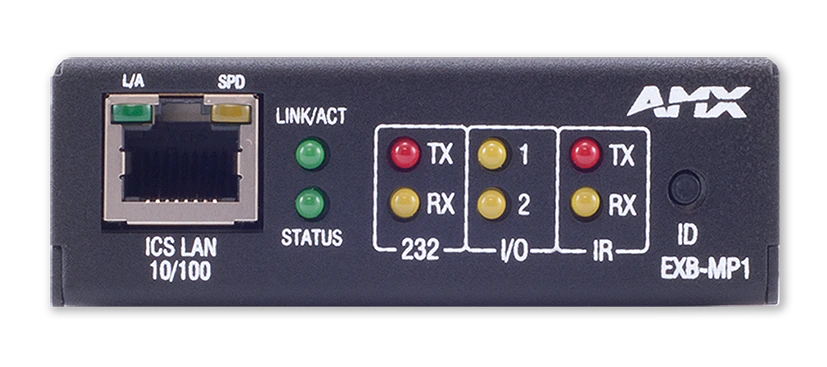

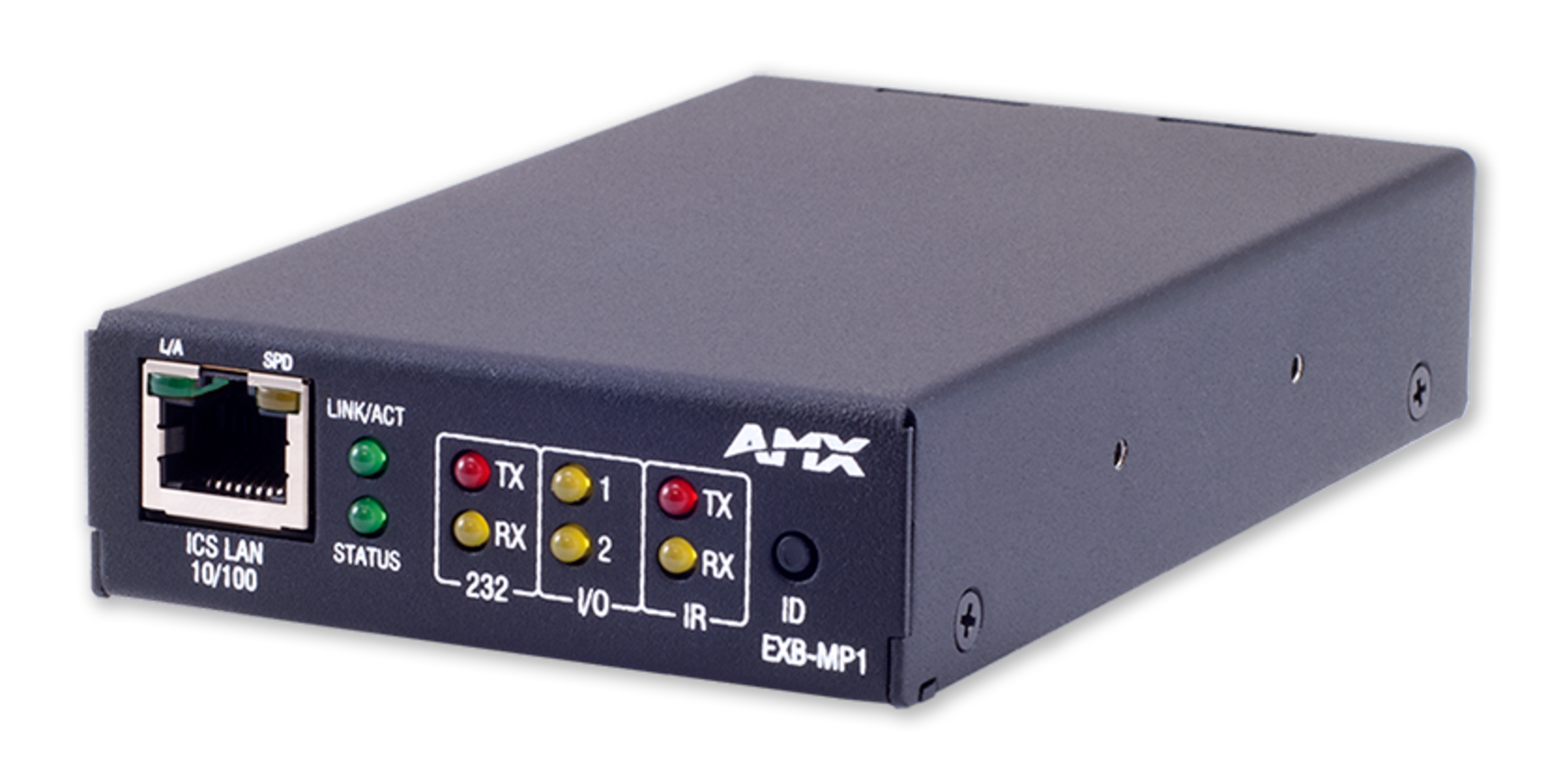

EXB-MP1 (discontinued)

ICSLan Multi-Port, 1 COM, 1 IR/S, 2 I/O, 1 IR RX

Larger Images

Replacement Products

  • CE-COM2

    CE-COM2

    Universal Control Extender with 2 Serial Ports
  • CE-IO4

    CE-IO4

    Universal Control Extender with 4 I/O Ports
  • CE-IRS4

    CE-IRS4

    Universal Control Extender with 4 IR/S Ports

ICSLan Device Control Boxes allow users to manage devices remotely from a Controller over an Ethernet network. This provides a beautifully simple method for a centralized control environment allowing users to share a controller among multiple smaller rooms versus controllers in every room. Ethernet has become the industry standard for connecting devices and the ICSLan Device Control Boxes make it easy to introduce control to equipment such as projectors located extended distances from a Controller. Additionally, the number of ports on an AMX Controller can be expanded when all ports are fully populated. Because they employ Native NetLinx technology, it is extremely simple to add an EXB to an AMX installation.

Common Applications

Conference rooms, classroom or auditoriums where a single controller is used to manage multiple devices such as projectors spread throughout a facility or to add additional ports to an AMX Central Controller.

Downloads

  Version Language Size Uploaded
Manuals
file type icon Instruction Manual - ICSLan Device Control Boxes
updated: Oct 2020
    854 KB Oct 2020
CAD Drawings
file type icon Pictorial Drawings - EXB-MP1, ICSLan Multi-Port, 1 COM, 1 IR/S, 2 I/O, 1 IR RX (DWG)
updated: Apr 2018
    52.8 MB Apr 2018
file type icon Pictorial Drawings - EXB-MP1, ICSLan Multi-Port, 1 COM, 1 IR/S, 2 I/O, 1 IR RX (DXF)
updated: Apr 2018
    199 MB Apr 2018
file type icon Pictorial Drawings - EXB-MP1, ICSLan Multi-Port, 1 COM, 1 IR/S, 2 I/O, 1 IR RX (PDF)
updated: Apr 2018
    144 KB Apr 2018
Bim Objects
file type icon EXB-MP1 - BIM Object
updated: Aug 2019
    Aug 2019
Firmware
platform icon ICSLan Device Control Boxes Firmware
version 1.0.49, updated: Sep 2018
1.0.49     232 KB Sep 2018
A&E (Architectural & Engineering) Specifications
file type icon A&E Spec - EXB-MP1 ICSLan Multi-Port, 1 COM, 1 IR/S, 2 I/O, 1 IR RX
updated: Jun 2018
    41.5 KB Jun 2018
Certifications
file type icon ICSLan Device Control Boxes UL Certificate of Compliance
updated: Apr 2018
    243 KB Apr 2018
file type icon ICSLan Device Control Boxes CE Declaration of Conformity
updated: Apr 2018
    255 KB Apr 2018
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: Oct 2020
    2.61 MB Oct 2020
Quick Start Guides
file type icon Quick Start Guide - ICSLan Device Control Boxes
updated: Oct 2020
    128 KB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Enable Ports over Ethernet – Provides a future proof solution to add ports anywhere
  • Easy to Program – Programming is identical to any other device ports on the Controller
  • Power over Ethernet – Eliminate the need for a power source at the install location
  • Small Form Factor – Compact design makes it easy to hide for a clean installation
  • NetLinx Studio Tools – Configuration tools make ICSLan Device Control Boxes easy to deploy

Specifications

Dimensions (HWD) 1" x 3" x 4 13/16" (2.5 cm cm x 7.6 cm cm x 12.2 cm), RU: 1
Power Over Ethernet (PoE) No local Power Supply needed
Power Draw 1.9 Watts
Connectors (1) RJ-45 ICS-LAN Ethernet Connector
FG Numbers FG2100-26
