MET-6N (discontinued)

Metreau 6-Button AxLink Keypad with Navigation

Larger Images

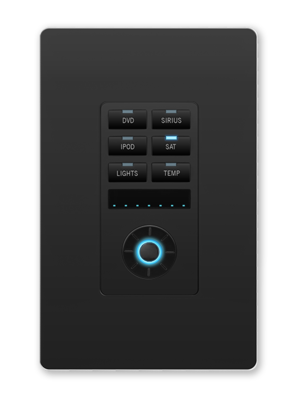

The MET-6N Metreau 6-Button AxLink Keypad with Navigation features source control, a navigation wheel that adjusts levels and provides up, down, left, right and select button options, as well as an LED bar for visual level feedback. The MET-6N can be used as an individual keypad or with the MET-7 and MET-13 keypads.

Common Applications

This keypad offers cost-effective control for bedrooms, meeting rooms, hotels and applications requiring control of up to 6 devices.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Jan 11
    520 KB Jan 11
Manuals
file type icon Instruction Manual - Metreau Keypads
updated: Mar 28
    2.57 MB Mar 28
CAD Drawings
file type icon Pictorial Drawing - MET-6N Metreau 6-Button Keypad with Navigation (PDF)
updated: Oct 22
    101 KB Oct 22
file type icon Pictorial Drawing - MET-6N Metreau 6-Button Keypad with Navigation (DXF)
updated: Oct 22
    2.16 MB Oct 22
Bim Objects
file type icon MET-6N - BIM Object
updated: Aug 12
    Aug 12
Quick Start Guides
file type icon Quick Start Guide - MET-6N Metreau 6-Button Keypad with Navigation
updated: Mar 28
    502 KB Mar 28
Safety Sheets
file type icon Safety Instructions - Metreau Keypads
updated: Mar 29
    80.8 KB Mar 29
Certifications
file type icon Metreau Keypads MET-6N/MET-7/MET-13 CE Declaration of Conformity
updated: Apr 26
    255 KB Apr 26
Information Documents
file type icon Metreau Series Keypad Button Ordering
updated: Oct 22
    92.7 KB Oct 22

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Includes navigation wheel for simplified control
  • Blue LEDs light up when buttons are pressed
  • Conveniently matches the styling of the NI-3101-SIG Controller



NOTE: Keypad wallplates not included. See ALD-CW-1, ALD-CW-2.

Specifications

Dimensions (HWD) Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm)
Mounting Mounts into standard decor-style wallplates
Front Panel Components 6 tactile pushbuttons with blue LED indicators, IR Sensor, LED Levels Indicator, Navigation Wheel. See Data Sheet for details.
Rear Panel Components DIP switch, AxLink connector
Power 12 VDC, 30mA
FG Numbers

FG5794-01-WH (White)
FG5794-01-BL (Black)
FG5794-01-LA (Light Almond)
