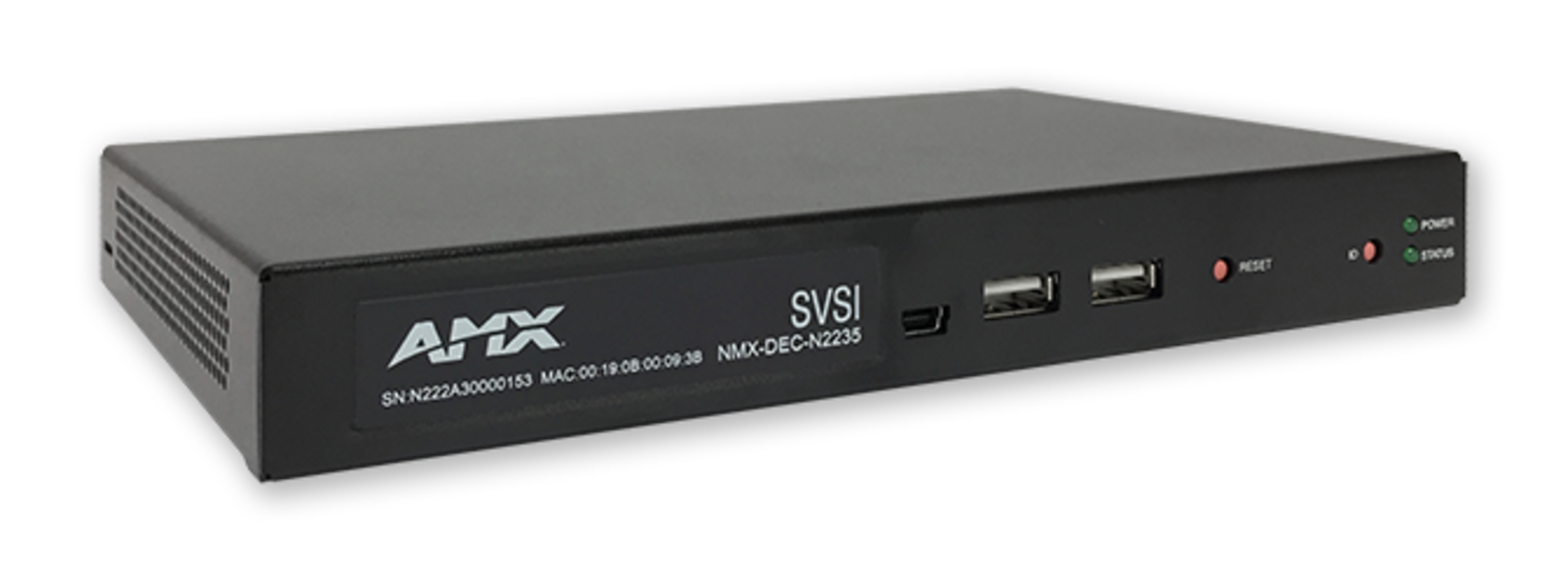

NMX-DEC-N2235 Decoder (discontinued)

JPEG 2000 1080p Low-Latency Decoder with KVM PoE, SFP, HDMI

NMX-DEC-N2235 Decoder
Larger Images

OVERVIEW
The SVSI JPEG2000 NMX-ENC-N2135 and NMX-DEC-N2235 encoder and decoder solution provides users with the industry’s most versatile solution for distributing AV over a converged network. JPEG2000 compression is the codec of choice for users demanding low-latency cinema grade HD quality video in their system. SVSI video over IP encoders are used to encode and distribute sources of almost any format onto an existing IP network making that stream available to any endpoint in the facility utilizing copper and/or fiber connectivity. SVSI Video over IP Decoders are used to decode Networked AV streams for display. With the ability to direct any source stream to any display, large, low-cost switching and distribution systems are simple to deploy without proprietary cabling or dedicated switching hardware. User selectable bandwidth control (10Mbps-600Mbps) allows for precision tuning considering network load and video quality.

The NMX-ENC-N2135 and NMX-DEC-N2235 both feature keyboard and mouse extension over IP. Users can set security options for device control. Security can be turned off allowing any decoder to connect to any computer connected to an encoder – for example within a call center where security of this type is not an issue and access to all end points is necessary. Security can be set allowing access to only specified computers or defined groups of computers – sensitive environments such as command and control centers benefit from this kind of customized security.

The SVSI solution allows for any number of inputs to connect to any number of outputs creating a video matrix of unlimited size and expandability. Plug-n-play, auto-detect technology reduces installation and programming time and all SVSI encoders and decoders include built in control capability.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    688 KB Mar 2024
Manuals
file type icon Instruction Manual - N2122, N2212, N2222, N2135, N2235, Encoders/Decoders Encoders/Decoders
updated: Jun 2020
    7.75 MB Jun 2020
file type icon NetLinx Control for N-Series Products Documentation Addendum
updated: Oct 2020
    1.05 MB Oct 2020
Firmware
platform icon SVSI N2x35 Encoder and Decoder Firmware Updater
version 1.15.18, updated: Nov 2021
1.15.18     67.8 MB Nov 2021
Quick Start Guides
file type icon Quick Start Guide - NMX-ENC-N2135 / NMX-DEC-N2235 JPEG 2000 Video over IP LAN Solutions
updated: Mar 2018
    339 KB Mar 2018
file type icon Quick Start Guide Guide - SVSI N2135/N2235 Keyboard and Mouse Series
updated: Sep 2018
    334 KB Sep 2018
Programming Guides
file type icon API Command List - SVSI N1000/N2000 Series
version F, updated: Jun 2020
  277 KB Jun 2020
Install Guides
file type icon SVSI Networked AV - Pre-Implementation Guide
updated: Aug 2023
    1.15 MB Aug 2023
Product Guides
file type icon Product Guide - N-Series Video Wall/Crop Limitation
updated: Oct 2020
    72.8 KB Oct 2020
file type icon Product Guide - N-Series Minimum Network Requirement
version B, updated: Oct 2023
  166 KB Oct 2023
file type icon N-Series Stream Compatibility
updated: Feb 2024
    431 KB Feb 2024

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Design Flexibility – Compatible with all SVSI N2000 series products so designers can choose the right product for each end point
  • Input and Output Scaling – Scaling performed in encoders or decoders for maximum flexibility with sources and displays
  • Power Over Ethernet (POE) – Eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, high-density installations
  • Infrared (IR) – Emitter connection allows control of IR-only display devices
  • Fast Install – With Phoenix connectors for Power, IR, RS232 serial, and analog audio (balanced and unbalanced) interfaces
  • Balanced and Unbalanced Audio – Embedded 7.1 audio (balanced and unbalanced)
  • HDMI with HDCP – Pass protected HDMI content

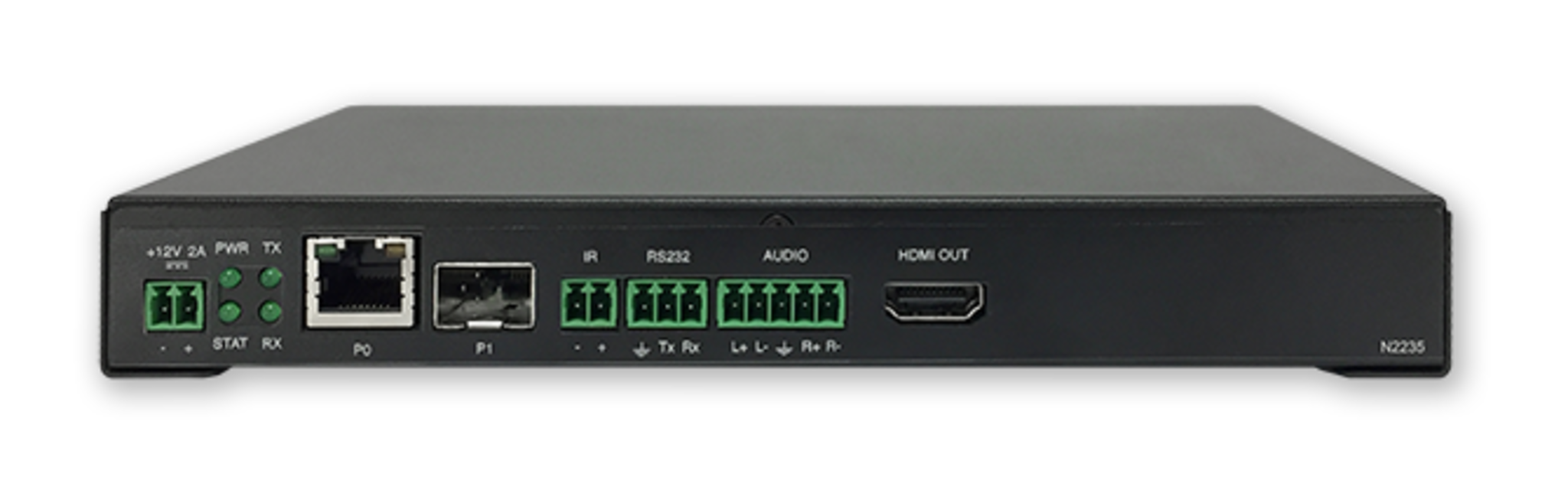

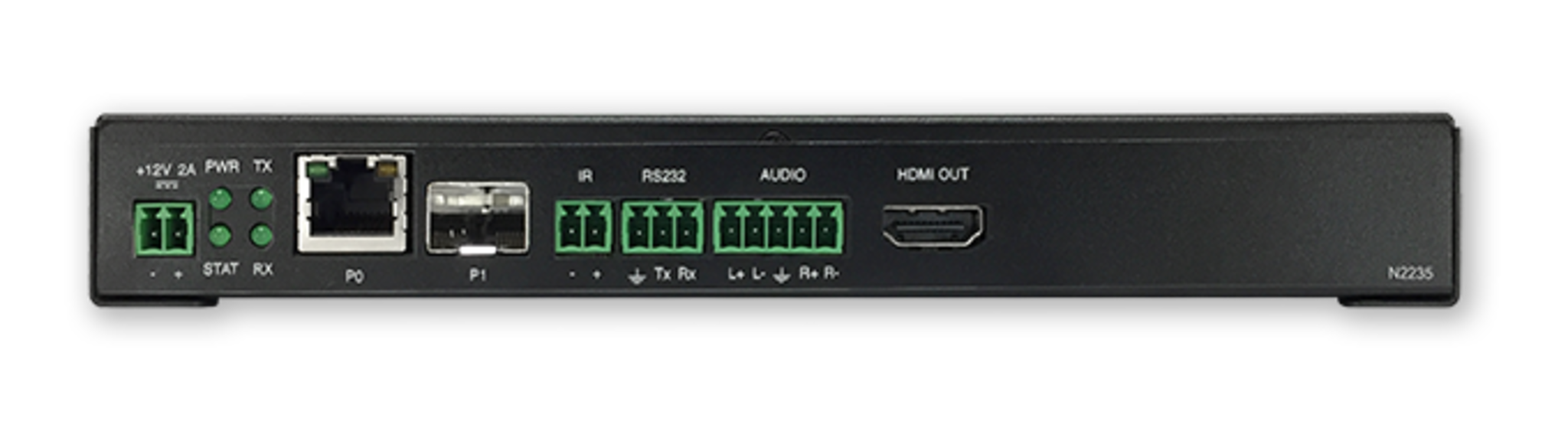

  • Multiple Connection Options – RJ-45 and SFP network connectors and HDMI video connections
  • KVM – Single USB-B and Dual USB-A control for KVM applications
  • Control Flexibility – Built-in or external control

Specifications

Digital Video Input Network video over copper via RJ45 port or fiber via 1G SFP port
Video Outputs HDMI, DVI-D (through adapter)
Video Formats HDMI, DVI-D (through adapter), HDCP content protection support
Output Resolutions Supports most common HD up to 1920x1200. See Data Sheet for details.
Audio Input Signal Types Network audio over Ethernet
Audio Output Signal Types Embedded audio on DVI-D or HDMI (through adapter)
HDMI Audio Formats 8ch PCM
Analog Audio Formats Stereo 2-channel
Latency 50 ms at 60 fps. See Data Sheet for details.
Communications Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP; 1 Gbps port which accepts compatible fiber transceivers or direct attach cables (fiber or copper cabling). HDMI: HDCP, EDID management.
FG Numbers FGN2235-SA
