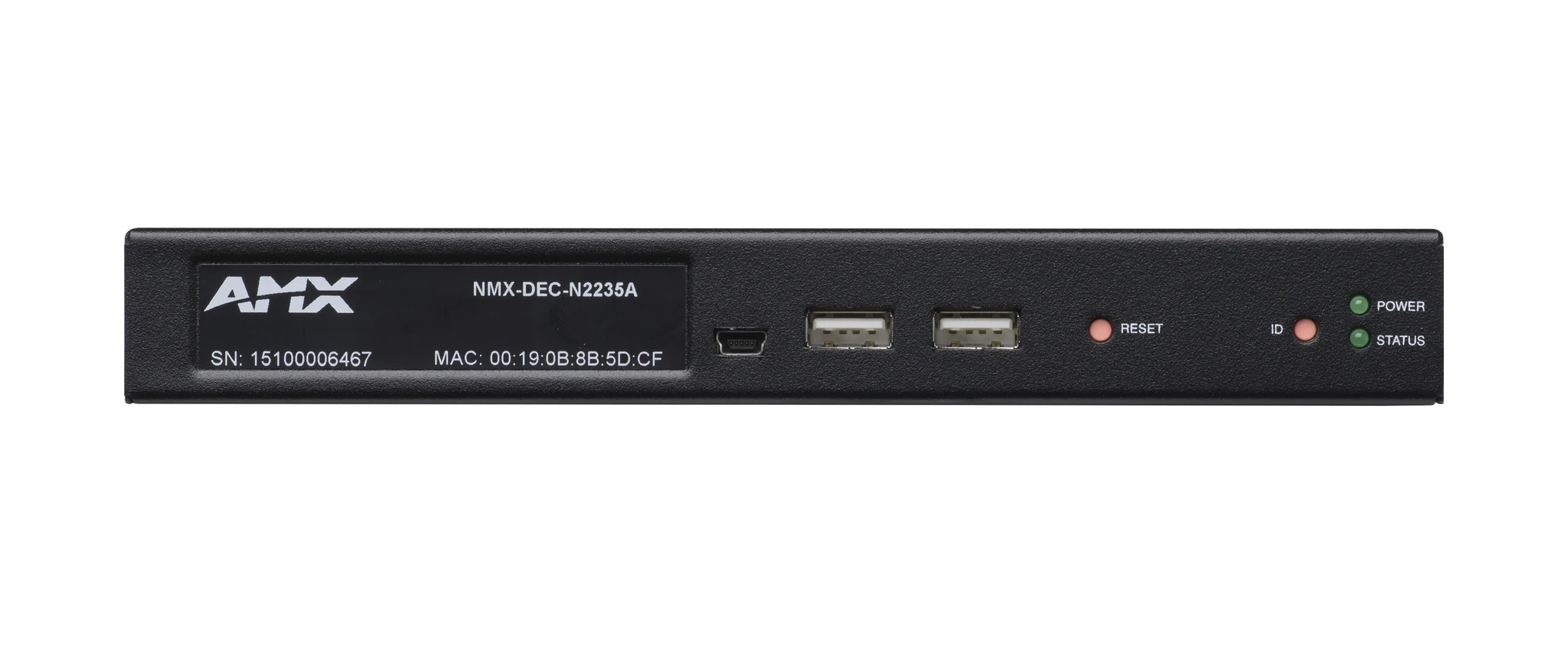

NMX-DEC-N2235A Decoder

JPEG 2000 1080p Low-Latency Decoder with KVM PoE, SFP, HDMI, AES67 Support

Larger Images

The SVSI JPEG2000 NMX-ENC-N2135A and NMX-DEC-N2235A encoder and decoder solution provides users with the industry’s most versatile solution for distributing AV over a converged network. JPEG2000 compression is the codec of choice for users demanding low-latency cinema grade HD quality video in their system. SVSI video over IP encoders are used to encode and distribute sources of almost any format onto an existing IP network making that stream available to any endpoint in the facility utilizing copper and/or fiber connectivity. SVSI Video over IP Decoders are used to decode Networked AV streams for display. With the ability to direct any source stream to any display, large, low-cost switching and distribution systems are simple to deploy without proprietary cabling or dedicated switching hardware. User selectable bandwidth control (10Mbps-600Mbps) allows for precision tuning considering network load and video quality.

The NMX-ENC-N2135A and NMX-DEC-N2235A both feature keyboard and mouse extension over IP. Users can set security options for device control. Security can be turned off allowing any decoder to connect to any computer connected to an encoder – for example within a call center where security of this type is not an issue and access to all end points is necessary. Security can be set allowing access to only specified computers or defined groups of computers – sensitive environments such as command and control centers benefit from this kind of customized security.

The SVSI solution allows for any number of inputs to connect to any number of outputs creating a video matrix of unlimited size and expandability. Plug-n-play, auto-detect technology reduces installation and programming time and all SVSI encoders and decoders include built in control capability.

Videos

Using Networked AV is as Simple as 1-2-3



AMX SVSI Networked AV N1000, N2000, N3000 Series Encoders/Decoders



AMX SVSI Networked AV: Configuring N-Act On Board Control



AMX SVSI Networked AV Panel Builder GUI for SVSI System Control



AMX SVSI Networked AV Video N-Series Windowing and Wall Processor Capabilities



Documentation

Downloads

  Version Language Size Uploaded
Manuals
NetLinx Control for N-Series Products Documentation Addendum     1.05 MB Jul 16, 2018
Software
SVSI N2x35A Encoder and Decoder Firmware Updater 1.15.18    44.7 MB Jul 17, 2018
N-ABLE-PC 2018-01-29    124 MB Sep 18, 2018
Quick Start Guides
Quick Start Guide Guide - SVSI N2135A/N2235A Keyboard and Mouse Series     328 KB Sep 04, 2018
Install Guides
SVSI Networked AV - Pre-Implementation Guide     607 KB Mar 29, 2018
Product Guides
Product Guide - N-Series Minimum Network Requirement     88.8 KB Apr 12, 2018
Product Guide - N-Series Video Wall/Crop Limitation     72.8 KB Apr 12, 2018
Whitepapers
SVSI Stream Compatibility Guide System Design Guidelines     121 KB Apr 25, 2018
Programming Guides
API Command List - SVSI N1000/N2000 Series   190 KB Oct 09, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Design Flexibility – Compatible with all SVSI N2000 series products so designers can choose the right product for each end point
  • Input and Output Scaling – Scaling performed in encoders or decoders for maximum flexibility with sources and displays
  • Power Over Ethernet (POE) – Eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, high-density installations
  • Infrared (IR) – Emitter connection allows control of IR-only display devices
  • Fast Install – With Phoenix connectors for Power, IR, RS232 serial, and analog audio (balanced and unbalanced) interfaces
  • Balanced and Unbalanced Audio – Embedded 7.1 audio (balanced and unbalanced)
  • HDMI with HDCP – Pass protected HDMI content
  • Multiple Connection Options – RJ-45 and SFP network connectors and HDMI video connections
  • KVM – Single USB-B and Dual USB-A control for KVM applications
  • Control Flexibility – Built-in or external control

Specifications

FG Numbers FGN2235A-SA

Recommended Accessories

  • NMX-ACC-N9312

    Power Supply 12V External
  • NMX-ACC-N9382

    1RU Power Supply 16-Channel 12V for up to 16 SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9101

    Mounting Wings for SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9102

    1RU Rack Shelf for Two Side-by-Side SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9206

    2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
  • NMX-ENET-SC-1

    Stacking Connector, Cisco 500 Series, 1M
  • NMX-SFP-MM

    Multi-mode 10-Gbps SFP fiber transceiver module for Cisco switches, dual LC connectors, up to 300m
  • NMX-SFP-SM

    Single-mode 10-Gbps SFP fiber transceiver module for Cisco switches, dual LC connectors, up to 10-km
