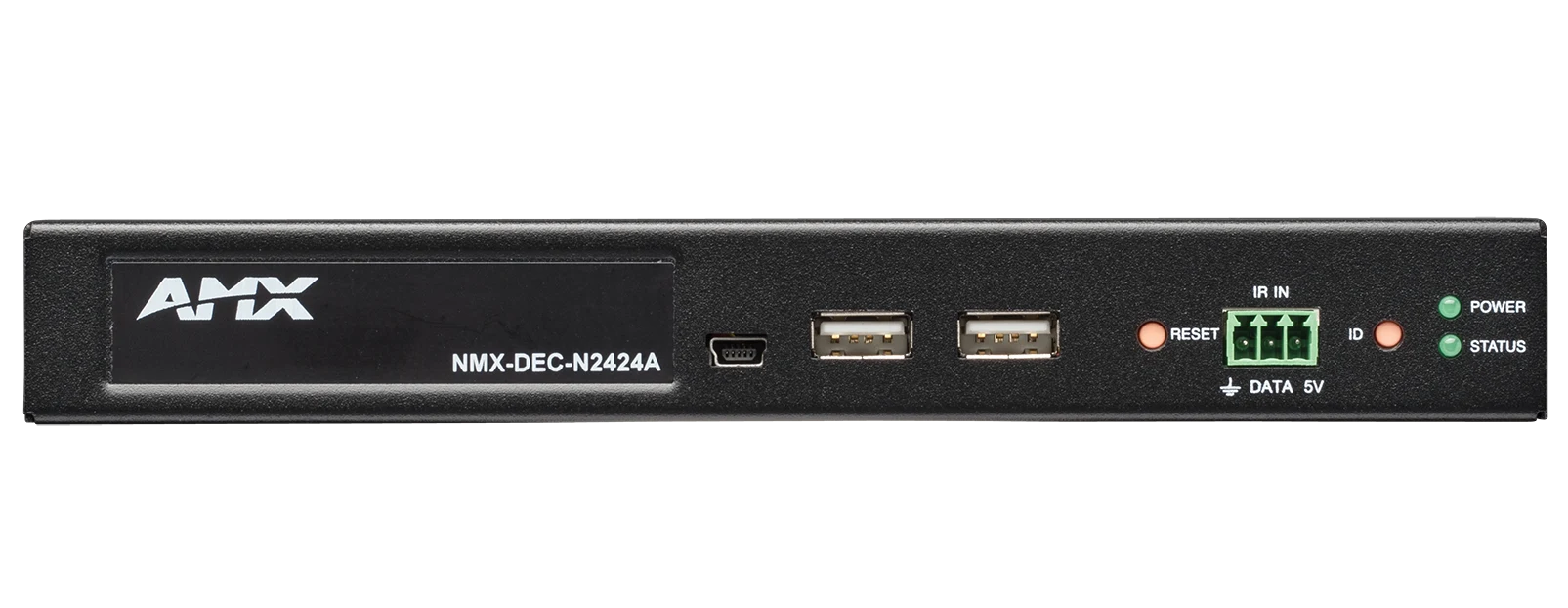

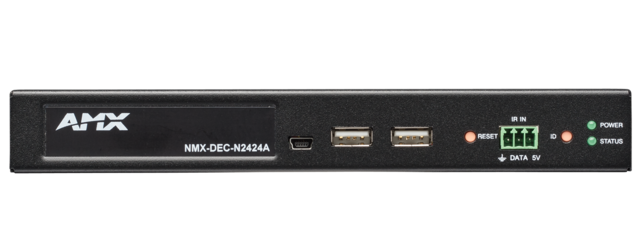

NMX-DEC-N2424A Decoder

JPEG 2000 4K60 4:4:4 & HDR Video Over IP Decoder, Stand Alone with POE+, KVM, & AES-67

Larger Images

Utilizing JPEG2000 encoding, N2400 Series encoders and decoders deliver cinema quality video with sub-frame latency. These products support 4K60 4:4:4, HDMI 2.0, HDCP 2.2, and HDR, allowing end users to realize the full potential of their source and display devices. To preserve the security of the network, N2400 supports enterprise security features such as Active Directory integration and 802.1X support. Operating on standard 1 Gbps networks and requiring only POE+ power, N2400 encoders and decoders provide the most scalable 4K60 4:4:4 solution.

Like other SVSI devices, N2400 Series encoders and decoders leverage the diverse control APIs, software, and web interfaces which, through years of field experience, have been optimized to provide a simple, yet flexible solution.

Common Applications

4K60 video is popular in casinos, sporting arenas, museums and other venues where high-resolution, large-scale video distribution is required. The N2400 Series is also perfect for lecture halls, university campus distribution, active learning spaces, or anywhere viewers with a discerning eye will be expecting the beauty of 4K60.

Downloads

  Version Language Size Uploaded
Manuals
Instruction Manual – SVSI N24xx Series
updated: Dec 04, 2020
    6.74 MB Dec 04, 2020
CAD Drawings
Pictorial Drawing (PDF) – NMX-DEC-N2424A
updated: Oct 22, 2020
    1.35 MB Oct 22, 2020
Pictorial Drawing (DWG) – N1000, N2000, N3000
updated: Oct 22, 2020
    161 KB Oct 22, 2020
Software
N-ABLE-PC
version 2020-07-28, updated: Jan 04, 2021
2020-07-28     102 MB Jan 04, 2021
SVSI N24xx Series Encoder and Decoder Firmware Updater
version 1.5.82, updated: Aug 04, 2021
1.5.82     62.4 MB Aug 04, 2021
Firmware
SVSI N24xx Series Encoder and Decoder Firmware Updater
version 1.4.7, updated: May 28, 2021
1.4.7     62.4 MB May 28, 2021
Certifications
SVSI N24xx IECEE CB Certificate
updated: Oct 22, 2020
    201 KB Oct 22, 2020
SVSI N24xx UL Certificate of Compliance
updated: Oct 22, 2020
    312 KB Oct 22, 2020
SVSI N24xx CE Declaration of Conformity
updated: Oct 22, 2020
    363 KB Oct 22, 2020
Product Guides
NET-SVSI-MIB.txt
updated: Aug 04, 2021
    94.5 KB Aug 04, 2021
Product Guide - N-Series Stream Compatibility Guide
updated: Nov 10, 2020
    83.6 KB Nov 10, 2020
Product Guide - N-Series Minimum Network Requirement
updated: Oct 23, 2020
    88.8 KB Oct 23, 2020
Product Guide - N-Series Video Wall/Crop Limitation
updated: Oct 23, 2020
    72.8 KB Oct 23, 2020
Data Sheets
Data Sheet – NMX-DEC-N2424A
version E, updated: Feb 24, 2021
  263 KB Feb 24, 2021
Install Guides
SVSI Networked AV - Pre-Implementation Guide
updated: Mar 29, 2018
    607 KB Mar 29, 2018
Quick Start Guides
Quick Start Guide – NMX-DEC-N2424A
updated: Oct 22, 2020
    298 KB Oct 22, 2020
Programming Guides
Zoom Room Controls – SVSI Decoder Configuration Example
version 0.1.5, updated: Sep 09, 2021
0.1.5    132 KB Sep 09, 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • 4K60 4:4:4 Support – The N2400 Series can be used to support today’s 4K content without modifying the color space or reducing the frame rate.
  • High Dynamic Range (HDR) Support – Support for HDR10
  • HDMI 2.0 and HDCP 2.2 Support – By incorporating HDMI 2.0 and HDCP 2.2, the N2400 Series products are compatible with all the latest 4K sources and displays.
  • Advanced Security including Active Directory, 802.1x, SSL/TLS and HTTPS – Satisfies enterprise network security requirements
  • Operates over Gigabit Ethernet – Distribute video over cost effective Gigabit Ethernet switches using category cable already installed in a location. This also allows for greater switching scalability, compared to a solution that depends on 10 GbE.
  • Sub-Frame Latency – N2400 Series encoders and decoders are able to deliver cinema quality video with less than a single frame of latency.
  • PoE+ Powered – The N2400 Series can operate using PoE+ power from the network switch, simplifying installation and reducing installation cost.
  • Native NetLinx – Simplifies integration with AMX control to reduce the cost of installation

Specifications

Video Inputs Network video over Ethernet via RJ45 1G port
Video Outputs HDMI, DVI-D (through adapter)
Video Resolution Support HDMI and DVI (Progressive)

Matched to inputs or scaled 1280x720@50Hz (720p50), 1280x720@59.94Hz (720p59.94), 1280x720@60Hz (720p60), 1280x800@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@59.94Hz (1080p59.94), 1920x1080@60Hz (1080p60), 1920x1200@60Hz, 3840x2160p@30Hz (2160p30), 3840x2160p@60Hz (2160p60), 3440x1440@50Hz, 3440x1440@60Hz, 3840x1080@60Hz, 4096x2160@30Hz, 4096x2160@60Hz
Audio Inputs Network PCM and AES67 audio over Ethernet via RJ45
Audio Outputs Embedded audio on HDMI or DVI-D (through adapter),
5-pin terminal Phoenix connector which provides user-selectable balanced/unbalanced stereo
Ports +12V 3A DC power input, (P0) Gigabit Ethernet port with POE+ support, (P1) Gigabit SFP port (SFP fiber transceiver or direct attach cable not included), (IR) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio) 5-pin 3.5mm screw terminal, HDMI video output, USB Mini B control input (front panel), 2 USB Type A control inputs (front panel), (IR IN) 3-pin 3.5mm screw terminal (front panel)
Environmental Temperature - 32° to 104°F (0° to 40°C)
Humidity - 10% to 90% RH (non-condensing)
Heat Dissipation - Up to ~102 BTU/hr
Regulatory Compliance FCC, CE, UL and NTRL
Dimensions (H x W x D) 1.05” x 7.888” x 5” (2.67 cm x 20.04 cm x 12.7 cm)
Weight 1.54 lbs (0.68 kg)
FG Numbers FGN2424A-SA
  • NMX-ACC-N9101

    Mounting Wings for SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9102

    1RU Rack Shelf for Two Side-by-Side SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9312

    Power Supply 12V External
  • NMX-ACC-N9382

    1RU Power Supply 16-Channel 12V for up to 16 SVSI N-Series Encoders, Decoders and Audio Transceiver
