NMX-ENC-N2122A Encoder

JPEG 2000 Digital Cinema Grade Video over IP Encoder, PoE, HDMI, AES67 Support

Larger Images

NMX-ENC-N2122A encodes and distributes sources of almost any format onto an existing IP network making that stream available to any endpoint in the facility. Pair with an NMX-DEC-N2222A or NMX-DEC-N2212A Decoder to decode streams back to HDMI or DVI format for display on any monitor. With the ability to direct any source stream to any display, large, low-cost switching and distribution systems are simple to deploy without proprietary cabling or dedicated switching hardware.

Includes IR, serial, balanced audio, two network ports (one POE), AES67 Support, and local video pass-through port. Auto-senses analog or digital video in.

The AMX SVSI N2000 Series utilizes JPEG2000 compression for HD, cinema-grade video distribution on the LAN for applications when video quality is top priority. Users can control video quality and bandwidth usage with a simple slider control provided in the web-based user interface allowing each installation to be customized for maximum performance.

Common Applications

The NMX-ENC-N2122A is the perfect solution for matrix switching and distribution of HD, cinema-grade quality video over LAN. Common applications include enterprise, house of worship, entertainment, and stadiums.

Videos

Documentation

Downloads

Features

  • Input and Output Scaling – Video scaling at either input or output allows seamless switching from any source, at any resolution, to any display or projector, while preserving video fidelity.
  • Power Over Ethernet (POE) – Eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, high-density installations.
  • Infrared (IR) – Infrared emitter connection allows control of low-cost, IR-only display devices.
  • Onboard Control – All N-Series encoders and decoders have on-board, built-in control capability via events that can trigger any number of TCP/UDP commands to other IP controllable devices.
  • Unlimited Scalability
  • Pass-Through HDMI – HDMI interface allows easy installation with local display such as desktop PC applications.
  • Stand Alone or Card – Available as a stand alone device, or card for use with NMX-ACC-N9206.

Specifications

Video
  • Digital Video Input: HDMI, DVI-I (through adapter)
  • Analog Video Input
    • HD-15 VGA, Component
    • Component is supported through a passive adapter
  • Video Output: Network video over Ethernet via RJ45 port
  • Formats
    • HDMI, DVI-D (through adapter), Dual-Mode DisplayPort (DP++), HDCP content protection support, RGBHV, YPbPr
    • DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter
  • Progressive Input Resolutions
    • Supports most common HD resolutions up to 1920x1200.
      • **720x480@59Hz, 640x480@60Hz, **720x480@60Hz, **720x576@50Hz, 800x600@56Hz, 800x600@60Hz, **1280x720@50Hz, **1280x720@59Hz, **1280x720@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1024x768@60Hz, 1280x800@60Hz, 1152x864@60Hz, 1600x900@60Hz, 1440x900@60Hz, 1280x960@60Hz, 1280x1024@60Hz, ***1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@23Hz, 1920x1080@24Hz, 1920x1080@25Hz, 1920x1080@29Hz, 1920x1080@30Hz, **1920x1080@50Hz, **1920x1080@59Hz, **1920x1080@60Hz, **1920x1080i@50Hz, **1920x1080i@59Hz, **1920x1080i@60Hz, ***1920x1200 @ 60Hz
  • Interlaced Input Resolutions
    • Supports 1080i60.
  • Analog Input Resolutions
    NOTE: Input resolutions supported @60Hz refresh rates are also supported @59.94Hz.
    • Supports most common HD resolutions up to 1920x1200.
      • **720x480@59Hz, 640x480@60Hz, **720x480@60Hz, **720x576@50Hz, 800x600@56Hz, 800x600@60Hz, **1280x720@50Hz, **1280x720@59Hz, **1280x720@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1024x768@60Hz, 1280x800@60Hz, 1152x864@60Hz, 1600x900@60Hz, 1440x900@60Hz, 1280x960@60Hz, 1280x1024@60Hz, ***1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@23Hz, 1920x1080@24Hz, 1920x1080@25Hz, 1920x1080@29Hz, 1920x1080@30Hz, **1920x1080@50Hz, **1920x1080@59Hz, **1920x1080@60Hz, **1920x1080i@50Hz, **1920x1080i@59Hz, **1920x1080i@60Hz, ***1920x1200 @ 60Hz
  • Analog-To-Digital Conversion: 8-bit 165 MHz per each of three color channels
    NOTE: The N2122 Encoder does not accept Composite or S-Video (YC).



**supported in component mode

***reduced blanking only

Audio
  • Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced)
  • Output Signal Types: Ethernet at 48-kHz (standard SVSI audio stream or AES67, user selectable)
  • HDMI Audio Formats: 8ch PCM
  • Analog Audio Formats: Stereo 2-channel
  • Analog-To-Digital Conversion: 16-bit 32 kHz, 44.1 kHz and 48 kHz
Latency
  • Video 50 ms for 720p60
  • Video 140ms for 1080p60
  • Audio Latency: standard SVSI audio stream = 17 ms (synced to video); AES67 = <1 ms adjustable to 17 ms



Note: This is the combined encode plus decode latency. Total Latency from source to screen will also include any network latency.

Note: Scaling adds one frame of latency (17ms at 60fps)

Communications
  • Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP
  • HDMI: HDCP, EDID management
Ports
  • +12V 2A: One 12 Volt DC power input.
  • P0
    • 8-wire RJ45 female
    • 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
    • Provides network connection, network AV video, and power to the Encoders and Decoders
  • P1
    • 8-wire RJ45 female
    • 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
    • Provides network connection
  • IR: 2-pin terminal Phoenix connector. Provides Infrared (IR) output only (33-60 kHz; typically 39 kHz). Emitter may be necessary (not included)
  • RS232: 3-pin terminal Phoenix connector which provides a serial control interface. Full duplex communication. Available terminal speed settings: 1200-115200 baud rate
  • AUDIO: 5-pin terminal Phoenix connector which provides user-selectable balanced/unbalanced input. Dedicated audio input
  • HDMI OUT: HDMI video output
  • HDMI IN: HDMI video input
  • VGA IN: DB15 analog input

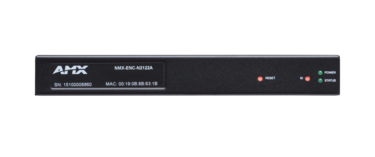

Controls and Indicators - Front Panel
  • RESET Button
    • Recessed pushbutton
    • Press to initiate a 'warm restart' causing the processor to reset, but not lose power. A reset does NOT affect the current settings
  • ID Button
    • Recessed pushbutton
    • Press to send a notification out on the network to identify the unit (the notification causes a pop-up dialog in N-Able and N-Command)
  • POWER LED
    • On solid (green) when operating power is supplied (via PoE or local power supply)
    • This activity is also shown by the PWR LED on the rear panel
  • STATUS LED
    • On flashing (green) when there is software activity
    • This activity is also shown by the STAT LED on the rear panel

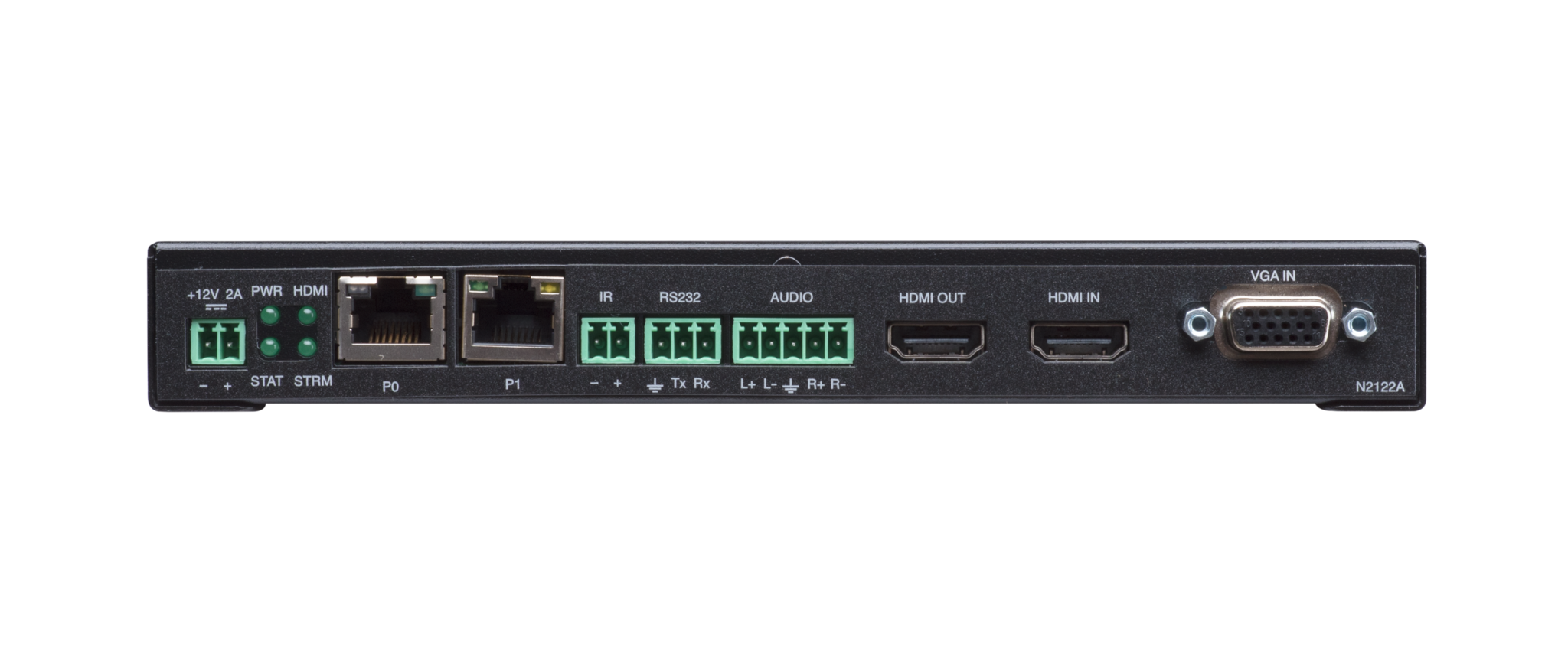

Controls and Indicators - Rear Panel
  • PWR LED: Same as POWER LED described above
  • HDMI LED: On (green) when there is a connection to a valid video source
  • STAT LED: Same as STATUS LED described above
  • STRM LED: On (green) when the unit is streaming video
Power Supply
  • Power Supply, External, Not Included: 2.0 Amp @ 12 Volts DC; 100-240 Volts AC power supply; Not included in shipment. NMX-ACC-N9312 (FGN9312)
  • Power over Ethernet (PoE): Can be powered via a PoE switch or other equipment with a PoE source. Conforms to IEEE 802.3af Class 3 (802.3at Type 1).



Note: In order for the unit to receive Power over Ethernet (PoE), it must be connected to a switch or other equipment that has a PoE PSE (Power Sourcing Equipment) port. Warning: Do not run wiring that is connected to a PoE PSE port outside of the building where the PSE resides. It is for intra-building use only. PoE does not pass through the daisy chain (P1) port.

Environmental
  • Temperature: 32° to 104°F (0° to 40°C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Heat Dissipation: Up to ~44 BTU/Hr
General
  • Dimensions (HWD): 1.05" x 7.888" x 5" (2.67 cm x 20.04 cm x 12.7 cm)
  • Weight: 1.6 lbs (0.66 kg)
  • Mounting Options
    • Stand alone, surface mount, wall mount, or rack mount
    • Surface and wall mounting requires (not included)
      • NMX-ACC-N9101 (FGN9101), Mounting Wings for SVSI N-Series Encoders and Decoders
    • Rack mounting requires one of the following (not included)
      • NMX-ACC-N9102 (FGN9102), 1RU Rack Shelf for Two Side-by-Side for SVSI N-Series Encoders and Decoders
      • NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
  • Regulatory Compliance: FCC, CE, and NTRL
  • Recommended Accessories
    • NMX-ACC-N9382 (FGN9382), 1RU Power Supply 16-Channel 12V for up to 16 SVSI N-Series Encoders and Decoders
    • NMX-ACC-N9101 (FGN9101), Mounting Wings for SVSI N-Series Encoders and Decoders
    • NMX-ACC-N9102 (FGN9102), 1RU Rack Shelf for Two Side-by-Side SVSI N-Series Encoders and Decoders
    • NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
FG Numbers FGN2122A-SA
