NMX-ENC-N2135A Encoder

JPEG 2000 1080p Low Latency Video over IP Encoder with KVM, PoE, SFP, HDMI, AES67 Support

Larger Images

The SVSI JPEG2000 NMX-ENC-N2135A and NMX-DEC-N2235A encoder and decoder solution provides users with the industry's most versatile solution for distributing AV over a converged network. JPEG2000 compression is the codec of choice for users demanding low-latency cinema grade HD quality video in their system. SVSI video over IP encoders are used to encode and distribute sources of almost any format onto an existing IP network making that stream available to any endpoint in the facility utilizing copper and/or fiber connectivity. SVSI Video over IP Decoders are used to decode Networked AV streams for display. With the ability to direct any source stream to any display, large, low-cost switching and distribution systems are simple to deploy without proprietary cabling or dedicated switching hardware. User selectable bandwidth control (10Mbps-200Mbps) allows for precision tuning considering network load and video quality.

The NMX-ENC-N2135A and NMX-DECC-N2235A both feature keyboard and mouse extension over IP. Users can set security options for device control. Security can be turned off allowing any decoder to connect to any computer connected to an encoder – for example within a call center where security of this type is not an issue and access to all end points is necessary. Security can be set allowing access to only specified computers or defined groups of computers – sensitive environments such as command and control centers benefit from this kind of customized security.

The SVSI solution allows for any number of inputs to connect to any number of outputs creating a video matrix of unlimited size and expandability. Plug-n-play, auto-detect technology reduces installation and programming time and all SVSI encoders and decoders include built in control capability.

Videos













Downloads

  Version Language Size Uploaded
Manuals
file type icon NetLinx Control for N-Series Products Documentation Addendum
updated: Oct 22, 2020
    1.05 MB Oct 22, 2020
CAD Drawings
file type icon Pictorial Drawing (DWG) – N1000, N2000, N3000
updated: Jul 24, 2020
    161 KB Jul 24, 2020
file type icon Pictorial Drawing (PDF) – N1000, N2000, N3000
updated: Jul 24, 2020
    111 KB Jul 24, 2020
Bim Objects
file type icon NMX-ENC-N2135A - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
Software
platform icon SVSI N2x35A Encoder and Decoder Firmware Updater
version 1.15.18, updated: Jul 17, 2018
1.15.18     44.7 MB Jul 17, 2018
platform icon N-ABLE-PC
version 2020-07-28, updated: Jan 04, 2021
2020-07-28     102 MB Jan 04, 2021
Quick Start Guides
file type icon Quick Start Guide Guide - SVSI N2135A/N2235A Keyboard and Mouse Series
updated: Sep 04, 2018
    328 KB Sep 04, 2018
Product Guides
file type icon NET-SVSI-MIB.txt
updated: Aug 04, 2021
    94.5 KB Aug 04, 2021
file type icon Product Guide - N-Series Stream Compatibility Guide
updated: Nov 10, 2020
    83.6 KB Nov 10, 2020
file type icon Product Guide - N-Series Video Wall/Crop Limitation
updated: Oct 23, 2020
    72.8 KB Oct 23, 2020
file type icon Product Guide - N-Series Minimum Network Requirement
updated: Oct 23, 2020
    88.8 KB Oct 23, 2020
Programming Guides
file type icon API Command List - SVSI N1000/N2000 Series
version F, updated: Jun 17, 2020
  277 KB Jun 17, 2020
file type icon Zoom Room Controls – SVSI Encoder Configuration Example
version 0.1.5, updated: Sep 09, 2021
0.1.5    132 KB Sep 09, 2021
Install Guides
file type icon SVSI Networked AV - Pre-Implementation Guide
updated: Mar 29, 2018
    607 KB Mar 29, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Design Flexibility – Compatible with all AMX SVSI N2000 series products so designers can choose the right product for each end point
  • Input and Output Scaling – scaling performed in encoders or decoders for maximum flexibility with sources and displays
  • Power Over Ethernet (POE) – eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, high-density installations
  • Infrared (IR) – Emitter connection allows control of IR-only display devices

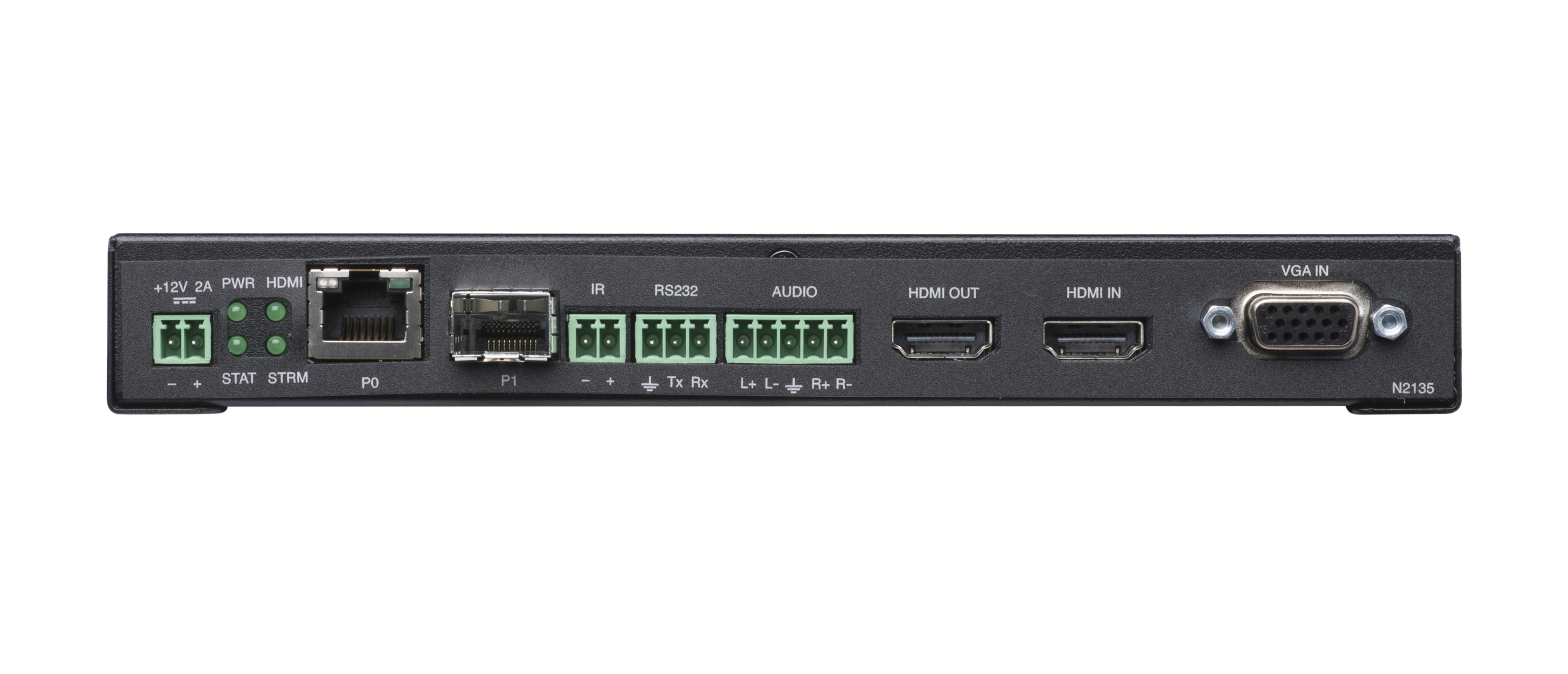

  • Fast Install – With Phoenix connectors for Power, IR, RS232 serial, and analog audio interfaces
  • Balanced and Unbalanced Audio – Embedded 7.1 audio (balanced and unbalanced)
  • Pass-through HDMI – allows easy installation with local display such as desktop PC applications
  • Multiple Connection Options – RJ-45 and SFP network connectors and HDMI video connections

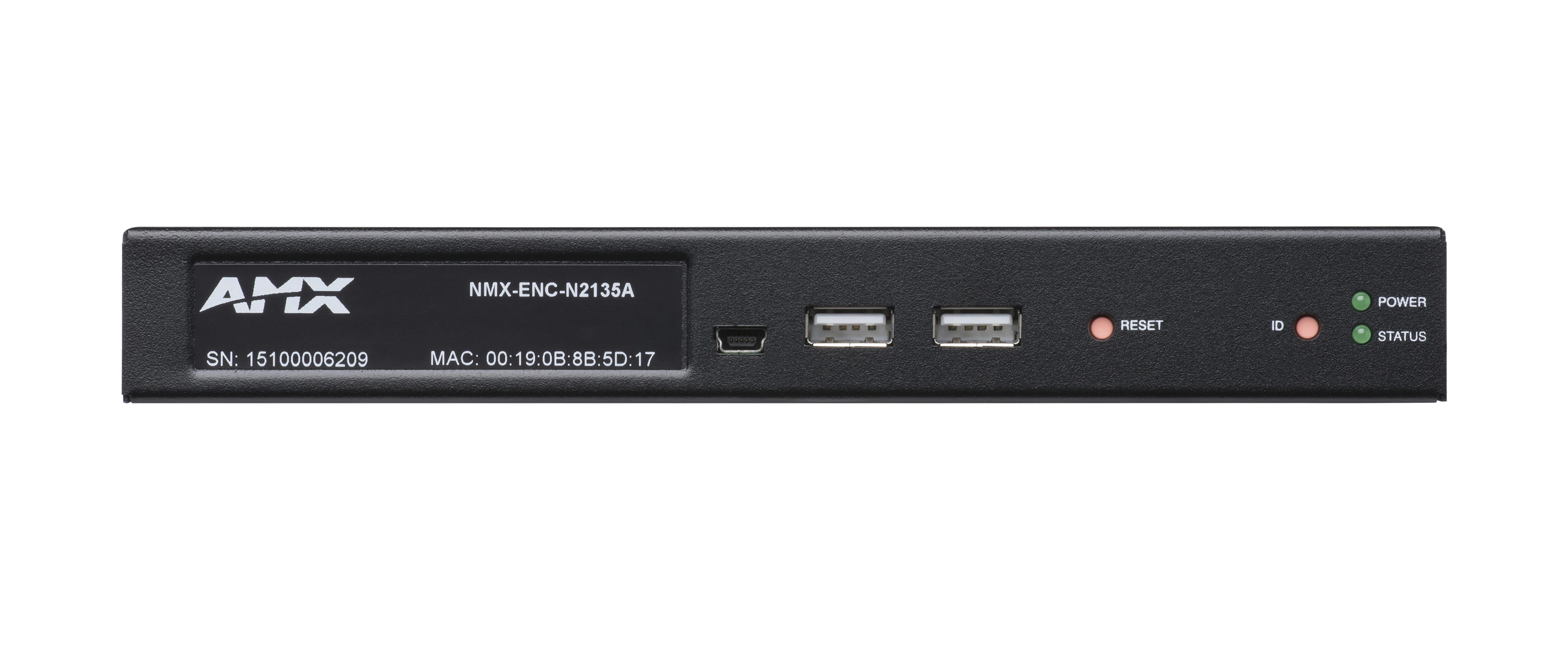

  • KVM – Single USB-B and Dual USB-A control for KVM applications
  • Control Flexibility – Built-in or third-party control

Specifications

FG Numbers FGN2135A-SA
  • NMX-ACC-N9312

    NMX-ACC-N9312

    Power Supply 12V External
  • NMX-ACC-N9382

    NMX-ACC-N9382

    1RU Power Supply 16-Channel 12V for up to 16 SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9101

    NMX-ACC-N9101

    Mounting Wings for SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9102

    NMX-ACC-N9102

    1RU Rack Shelf for Two Side-by-Side SVSI N-Series Encoders, Decoders and Audio Transceiver
  • NMX-ACC-N9206

    NMX-ACC-N9206

    2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
  • NMX-ENET-SC-1

    NMX-ENET-SC-1

    Stacking Connector, Cisco 500 Series, 1M
  • NMX-SFP-MM

    NMX-SFP-MM

    Multi-mode 10-Gbps SFP fiber transceiver module for Cisco switches, dual LC connectors, up to 300m
  • NMX-SFP-SM

    NMX-SFP-SM

    Single-mode 10-Gbps SFP fiber transceiver module for Cisco switches, dual LC connectors, up to 10-km
