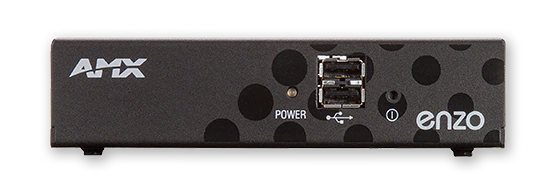

NMX-MM-1000

Enzo

Larger Images

Enzo® is a content sharing platform built specifically for meeting rooms, classrooms and other collaboration spaces providing instant access to a wide variety of content.

Common Applications

Ideal for use in a huddle room to provide cost-effective presentation and collaboration capabilities for smaller spaces. Use in conference rooms for guest presenters to share documents, photos and access internet content stored on their device or in the cloud. Share content in classrooms from a laptop or mobile device among students and teachers.

Documentation

Downloads

  Version Language Size Uploaded
Data Sheet     428 KB Jul 06, 2018
CAD Drawings
Pictorial Drawing - NMX-MM-1000, Enzo (DWG)     399 KB Apr 09, 2018
Pictorial Drawing - NMX-MM-1000, Enzo (DXF)     1.46 MB Apr 09, 2018
Pictorial Drawing - NMX-MM-1000, Enzo (PDF)     160 KB Apr 09, 2018
Bim Objects
NMX-MM-1000 - BIM Object     Aug 12, 2019
Software
Enzo Firmware 1.8.8    290 MB Mar 15, 2018
MirrorOp (Screen Mirroring for Enzo)     Oct 03, 2018
MirrorOp Sender for Windows PCs     11.3 MB Oct 03, 2018
MirrorOp Sender for MacBooks     10.3 MB Oct 03, 2018
MirrorOp Sender using USB for PCs and Macs     6.16 MB Oct 03, 2018
MirrorOp Presenter for iOS Devices     Oct 03, 2018
MirrorOp Sender for Samsung Galaxy Devices     Oct 03, 2018
MirrorOp Presenter for Android Devices     Oct 03, 2018
Quick Start Guides
Quick Start Guide - NMX-MM-1000 Enzo Meeting Presentation System     742 KB Mar 26, 2018
A&E (Architectural & Engineering) Specifications
A&E Spec - NMX-MM-1000, Enzo     74.5 KB Jun 27, 2018
Certifications
NMX-MM-1000 UL Certificate of Compliance     242 KB Apr 25, 2018
NMX-MM-1000 CE Declaration of Conformity     256 KB Apr 25, 2018
NMX-MM-1000 IECEE CB Test Certificate     125 KB Apr 25, 2018
Whitepapers
AMX AV/IT Administrator's Guide     2.61 MB Apr 25, 2018
Product Guides
Enzo Product Guide     394 KB Apr 12, 2018
Safety Sheets
Safety Instructions - NMX-MM-1000 Enzo Meeting Presentation System     132 KB Mar 26, 2018
Administrators Guides
Administrators Guide - NMX-MM-1000 Enzo Meeting Presentation System     2.34 MB Mar 26, 2018
Programming Guides
Programmers Guide - NMX-MM-1000 Enzo Meeting Presentation System     883 KB Mar 26, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Laptop Screen Mirroring using MirrorOp* – Present content from your Windows or Mac OSX laptop without an AV cable; visit amx.com/mirrorop for details on downloading MirrorOpp Senders app
  • Content Sharing from Smartphones and Tablets using MirrorOp* – Share local content from your mobile device using Enzo connected to a screen
  • Moderator Mode with Quad View using MirrorOp* – Moderator controls what content is going on the screen, with the ability to select up to 4 devices for display at once
  • "Instant-On" File and Web Browsing – Access content or USB thumb drive files within seconds of entering the room
  • IT Friendly – Avoids OS updates, viruses and other PC-related maintenance hassles and costs
  • End of session data purge – Prevents unintended disclosure of confidential information
  • Native NetLinx Device – Control Enzo using a touch panel and NetLinx Controller
  • PoE, Pass-Through Ethernet and Small Form Factor – Easy to Install
  • Streaming Video Playback – Watch video content such as television or live presentations streamed from an AMX H.264 Encoder over a private network
  • Supported by RPM – Enables one-click launch of a custom Enzo session



*MirrorOp is the industry leading technology for wireless mobile content sharing

Specifications

Dimensions (HWD) 1 3/8" x 5 13/16" x 3 1/4" (34.80 mm x 147.32 mm x 83.41 mm)
Weight 1.1 lb (.5 Kg)
Power Consumption 13 W, (Max)
Power Over Ethernet (PoE) PoE, 802.3AF
Operating Temperature 0° C to 40° C (32° F to 104° F)
Controls NetLinx, RS-232, Operation Button. See Data Sheet for details.
Supported Documents Office .doc, .docx, .xls, .xlsx, .ppt, .pptx, .pdf
Supported Document Sources Dropbox, USB Drive, Web Browser
Supported Document Sharing Email, Dropbox
Supported Images .png, .jpg, .bmp, .gif
Supported Video .mp4 with H.264 video and AAC audio
FG Numbers FG3211-01
