PS3.0

12 VDC, 3.0 A Power Supply with 1.3 mm Barrel Plug

Limited Availability
PS3.0
Larger Images

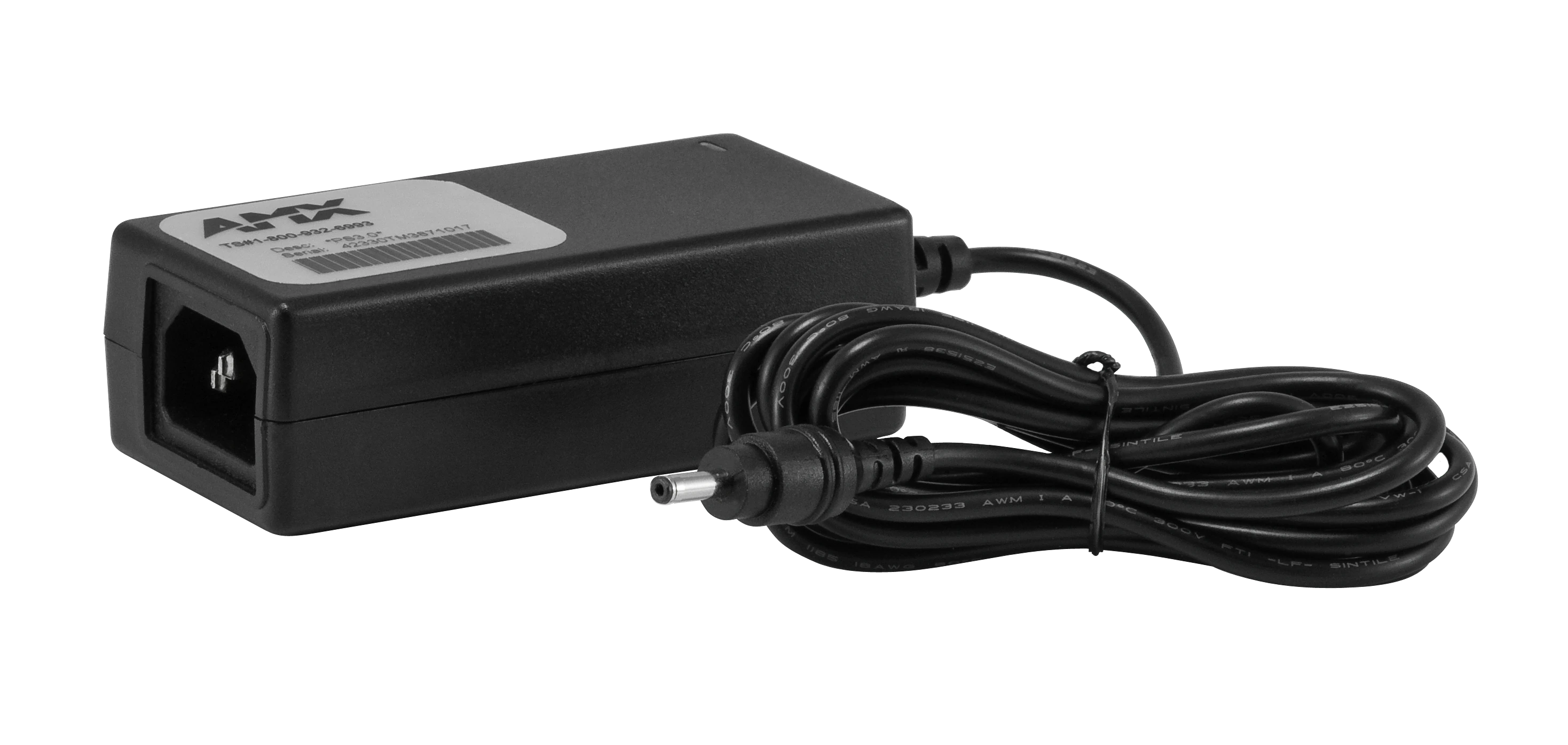

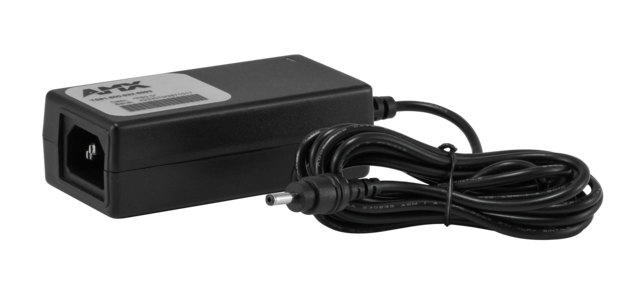

The PS3.0 power supply provides 3.0 A of DC power for the MVP-5200i Modero Touch Panel and other NetLinx devices. This is is a Class 1 power supply which is CE approved and UL listed. The PS3.0 comes with an 0.43-inch (11mm) 1.3 mm barrel-plug.

Downloads

  Version Language Size Uploaded
Quick Start Guides
file type icon Quick Start Guide - Power Supplies
updated: Jul 2018
    667 KB Jul 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Dimensions (HWD) 3 7/8" x 1 3/4" x 1 1/4" (9.8 cm x 4.5 cm x 3.1 cm)
Weight 5.6 oz (150 g)
Input Voltage 100-240 VAC, 3.0 A, 47~63 Hz
Output Voltage 12 VDC
Output Current 3.0 A
Ripple and Noise 200 mV (60 Hz Ripple + Switching ripple and noise)
Protection Over-voltage, over-current, short-circuit, transient and thermal. Switching regulated, overload protected
Power Indicator Green LED indicates the presence of DC on the output
Connectors 1.3 mm barrel plug, 11 mm long
Power cables 6-foot (1.83 m) IEC power cord terminated with a grounded Edison plug for AC input
Enclosure Material Metal with black matte finish
Environmental
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Storage temperature: -4°F to 185°F (-20°C to 85°C)
Certification UL: US listed - Class I Power Supply, CUL approved, TUV approved, FCC approved, CE approved, PSE approved
FG Numbers FG423-30
