RMS Enterprise

Larger Images

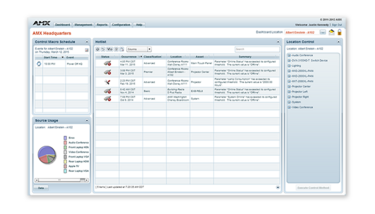

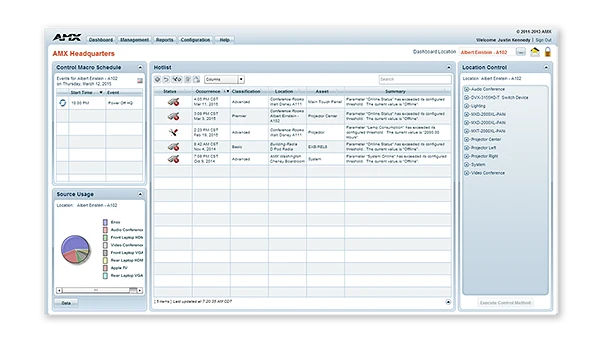

RMS-ENT / RMS Enterprise is scalable client/server based software for IT and AV managers that provides remote management capabilities for AV assets and building systems. The software features a user-friendly dashboard that makes it easy to centralize the management and monitoring of AV equipment, lights, HVAC and other building functions. This allows users to solve technology issues before they become problems, such as identifying displays before a bulb burns out or receiving immediate notification when a device goes offline.

With RMS, IT and AV managers can improve their response times, while end users can reduce the amount of time lost while waiting for meeting room equipment to function. With the new RMS Enterprise Update Manager, IT and AV Managers now have the ability to stage new AMX firmware, quickly identify AMX devices that are not up to the latest firmware revision, and mass deploy the new firmware to these devices simultaneously with just a few clicks of the mouse. RMS is also a green solution that saves money and the environment by reducing energy consumption by remotely turning off equipment when rooms are empty or at the end of the work day.

RMS has the full range of features IT professionals would expect for enterprise software, including support for active directory, LDAP, existing SQL databases, and scalability across multiple servers. You can manage all of your buildings with a single RMS license, deployable from the cloud or on-premises. See RMS Enterprise Hosted Cloud Service for details on the cloud version.

RMS includes a long list of standard and customizable reports, and gives you the ability to tailor your experience with a fully-configurable dashboard with easy-to-use widgets. RMS Enterprise also features the RMS Enterprise Scheduling Interface, which improves the efficiency of meeting spaces and technology by allowing users and support personnel to schedule meeting spaces and preconfigure room technology for upcoming meetings.

RMS v4.6 adds:

  • Enhanced RMS SDK auto registers and passes control parameters for DVX, Modero Touch Panels, DXLink, Massio ControlPads, NX controllers and Solecis devices
  • Enhanced Reporting capabilities with CSV file generation and report scheduling
    • Easily sort and filter CSV files from the report tool
    • Schedule reports to run and be emailed to a specific user on selected intervals
  • Continued transition of the UI to HTML5 and additional reporting capabilities to support compatibility with latest browsers and mobile devices; V4.6 brings the Hot List View and Reporting into HTML5
  • Updated compatibility with the latest server and scheduling platform technologies; Java 9, Tomcat 8.5 and Exchange 2016

Common Applications

  • RMS is a robust solution for corporate or government IT and AV managers to centralize the monitoring and management of AV devices and building systems across their facilities worldwide.
  • RMS is popular among support staff at higher education institutions for managing classroom AV technology
  • RMS is ideal for organizations deploying conference room and classroom scheduling throughout their facilities


  Version Language Size Uploaded
Data Sheet
updated: May 16, 2018
    304 KB May 16, 2018
Installation Manual - RMS Enterprise Transporter
updated: May 07, 2020
    7.29 MB May 07, 2020
RMS Client/SDK
version 4.7.0, updated: May 07, 2020
4.7.0     33.9 MB May 07, 2020
Resource Management Suite Enterprise
version 4.7.0, updated: May 07, 2020
4.7.0     290 MB May 07, 2020
RMS Enterprise Interface for Lotus Notes Domino
version 4.1.5, updated: Mar 14, 2018
4.1.5     3.27 MB Mar 14, 2018
RMS Enterprise Scheduling Interface
version 4.1.22, updated: Mar 14, 2018
4.1.22     1.36 MB Mar 14, 2018
RMS Enterprise Software Development Kit – NX Series
version 4.6.7, updated: Mar 14, 2018
4.6.7     32.2 MB Mar 14, 2018
RMS Enterprise Transporter
version 1.2.25, updated: May 07, 2020
1.2.25     90 MB May 07, 2020
Administrators Guides
System Administrator's Manual - RMS Enterprise Resource Management Suite
updated: May 07, 2020
    21.9 MB May 07, 2020
AMX AV/IT Administrator's Guide
updated: Apr 25, 2018
    2.61 MB Apr 25, 2018
RMS Enterprise Network & Scalability White Paper
updated: Jul 07, 2020
    2.9 MB Jul 07, 2020
Application Guides
AMX Scheduling Application Guide
updated: Apr 12, 2018
    328 KB Apr 12, 2018
Quick Reference Guides
Reference Guide - RMS-ENT Scheduling API
updated: Mar 27, 2018
    303 KB Mar 27, 2018
User Guides
User Guide - G4 Touch Panel User Interface - RMS Enterprise
updated: Mar 27, 2018
    682 KB Mar 27, 2018
User Guide - G5 Touch Panel User Interface - RMS Enterprise
updated: Mar 27, 2018
    1.47 MB Mar 27, 2018
Programming Guides
NX Series NetLinx Programmers Guide - RMS Enterprise (SDK v4.6)
updated: Mar 27, 2018
    2.66 MB Mar 27, 2018
NetLinx Programmers Guide - RMS Enterprise (SDK v4.3)
updated: Mar 27, 2018
    2.68 MB Mar 27, 2018
Install Guides
Installation Manual - RMS Enterprise Resource Management Suite
updated: Jul 06, 2020
    4.61 MB Jul 06, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


  • Monitor and Maintain – Minimize help desk calls and simplify troubleshooting by centrally managing AV systems just like IT systems
  • Reports and Dashboards – RMS includes the industry’s most versatile set of configurable reports and dashboards, allowing organizations to customize the performance metrics they want to view, when they want to view them
  • Enterprise Grade Software – RMS Enterprise provides large scale management for users, roles, and, tracking user activities including an audit trail of who performed each activity and when it was completed. The server software supports authentication, encryption and protection from cross-site scripting to prevent security threats.
  • Schedule Conference Rooms & Classrooms – Improve productivity by enabling users to check availability and schedule rooms directly from their desks, or from touch panels mounted outside of the rooms. RMS Enterprise Scheduling supports the major third-party Scheduling systems like Outlook, Google Calendar and Lotus Notes, and includes an API that gives flexibility to add tailored support for any scheduling application whether 3rd party or developed by the customer
  • View Room Schedules From Mobile Devices – Utilize RMS QRS Quick Response Scheduling to display a room schedule on a mobile device, providing an effective low cost method for managing room scheduling and increasing productivity
  • Simultaneously Deploy Firmware Files Over The Network – Save time and cost while eliminating the need for technicians to make on-site visits
  • Maintain Version Information & Update History For All AMX Devices – Simplifies record keeping and ensures optimal performance of AMX devices
  • Reduce Energy Costs by automatically returning equipment to its lowest energy usage state upon the meeting's end, or by remotely shutting down equipment at the end of the day
  • Rapid Project Maker Native Support – In RPM, the commissioning of an AMX system that includes RMS is simple as a check box and typing an RMS URL


Server Hardware Requirements Processor: Dual core Intel Xeon processor @ 2.67GHz (or equivalent) Memory: 8 GB Display: 1280 x 1024 resolution Hard Disk: 1 GB available space for RMS Enterprise application files; an additional 20 GB of space is needed for log files and firmware files.
Supported Server Operating Systems Microsoft Windows Server 2012 SP2 (x64), Microsoft Windows 2008 Server R2 (x64). See Data Sheet for details.
Supported Virtual Servers RMS Enterprise can also be hosted on a virtual server with either of the following virtualization systems: VMware ESXi (4.x or greater), Hyper-V
Supported SQL Database Platforms (x32/x64, Enterprise/Standard/Express). The "Express Editions" are suitable for systems with less than 50 rooms only (download available free from Microsoft)
FG Numbers

FG3004-K (1000 Location Licenses, and 3 Year Maintenance)
FG3004-1000K (1000 Location Licenses, Server License not included)
FG3004-01 (Single Location License - Discontinued)
FG3004-25K (25 Location License Bundle - Discontinued)
FG3004-100K (100 Location License Bundle - Discontinued)
FG3004-300K (300 Location License Bundle - Discontinued)
FG3004-25EK (Education Discount 25 Location License Bundle - Disontinued)
FG3004-100EK (Education Discount 100 Location License Bundle - Discontinued)
FG3004-300EK (Education Discount 300 Location License Bundle - Discontined)

Recommended Accessories


    RMS Enterprise Scheduling License

    RMS Enterprise Interface for Microsoft Exchange Web Services (EWS)

    RMS Enterprise Interface for Lotus Notes® Domino
