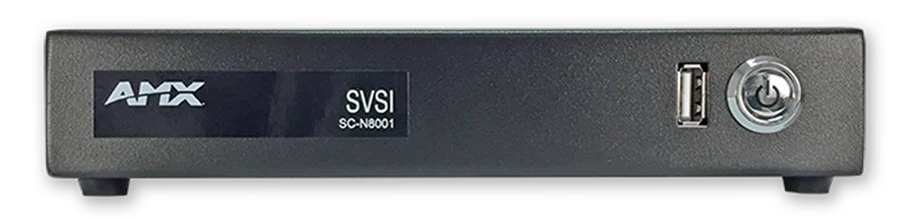

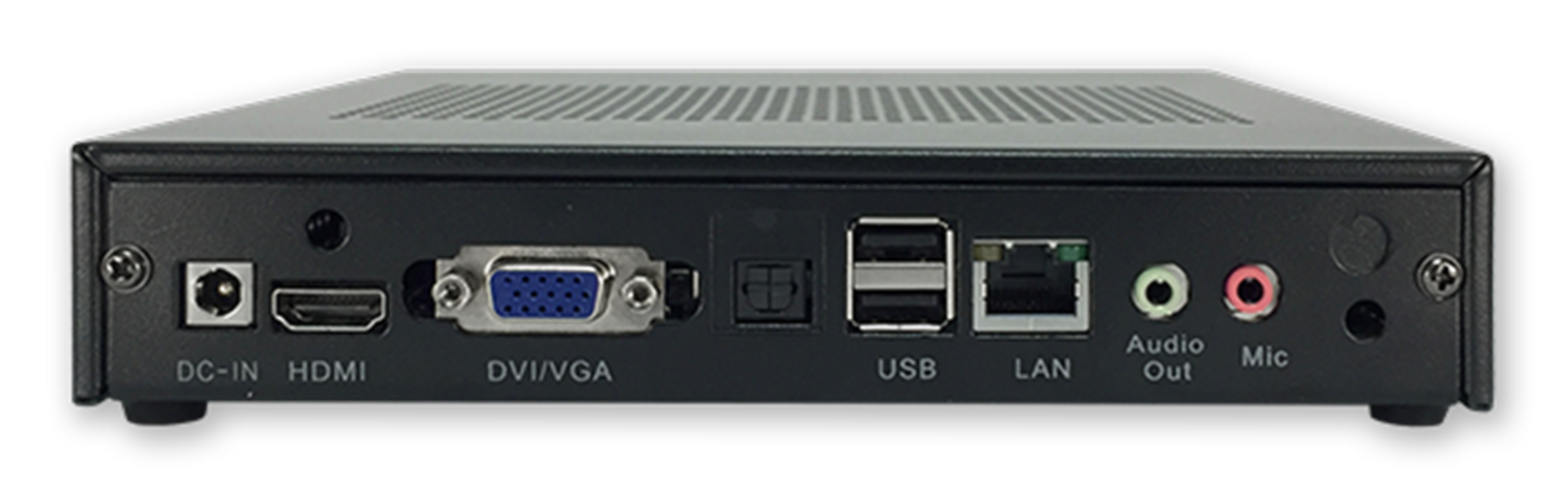

SC-N8001

N-Series Controller for 5 Users/50 Devices

Larger Images

OVERVIEW
The SC-N8000 N-Command Control Applications provide intuitive and powerful management of SVSI system configuration, task automation, scripting, and wall building. SC-N8001 offers AV switching for 5 users and 50 devices, while the SCN8002/SC-N8012 allow unlimited users and devices. N-Command Control Appliances also include a simplified ASCII interface for 3rd-party control via TCP/IP.

Downloads

  Version Language Size Uploaded
Data Sheet     681 KB Dec 01, 2016
Manuals
Tutorial - SVSI N-Touch Panel Builder     1.29 MB Jul 16, 2018
N-Command 2.0 User Manual Rev 1.3     3.73 MB Apr 09, 2018
Software
SVSI N8000 N-Series Controller Firmware Updater – NCommand 2.0 (for all SN N8001B, N8002B, N8012B) 1.23.61    85.5 MB Feb 05, 2019
Panel Builder Standalone 2017-05-01 / v1.23.50    46.4 MB Jul 17, 2018
SVSI N8000 N-Series Controller Firmware Updater (for pre-SN297 N8002 / pre-SN284 N8001 hardware) 11.28.2016    75.9 MB Mar 15, 2018
SVSI N8000 N-Series Controller Firmware Updater (for post-SN297 N8002 / post-SN284 N8001 hardware / all N8012) 2017-05-16    90.9 MB Feb 05, 2019
Quick Start Guides
Quick Start Guide - SVSI SC-N8000 N-Series Controllers     318 KB Apr 09, 2018
Programming Guides
Direct Control API - SVSI N8000 Series Command List     505 KB Apr 09, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Multi-user web-based graphical matrix displays offer easy point and click control distributing and switching.
  • Switch between live video stream and locally-stored content
  • Tasks can be scheduled, edited, deleted, or executed immediately for content display
  • Includes wall builder, scripting, and panel builder features
  • Manage multiple video streams on a single Ethernet connection
  • Advanced Security including Active Directory, SSL/TLS and HTTPS to satisfy enterprise network security requirements

Specifications

Dimensions (HWD) 1.5" x 7.625" x 7.625" (3.81 cm x 19.36 cm x 19.36 cm)
Interface Ethernet
Max Devices 50
Max Users 5 Simultaneous
Web-Based Control Yes
Host PC Required No
Control 3rd-Party Devices Yes
FG Numbers FGN8001
