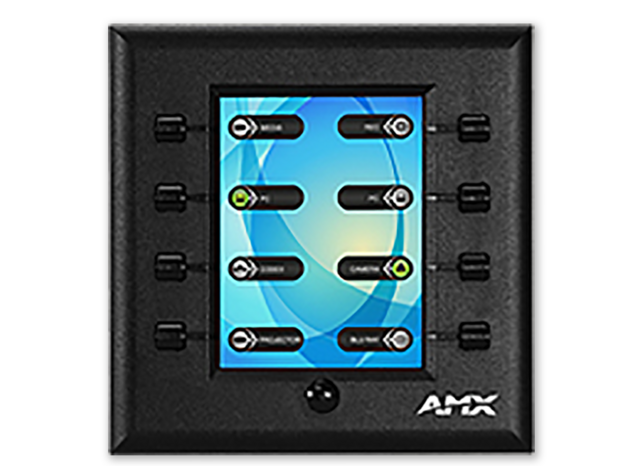

SC-WPC-D (discontinued)

N-Series Wallplate Controller

Larger Images

Wall Controllers are stand-alone, dual-gang IP controllers that send commands to multiple IP clients with the push of a button. N-Series Controllers have nine programmable tactile buttons with a 240 x 320 display. Programming is done individually through the built-in web-server or collectively to multiple units using N-Command Control Appliances. Multi-page custom graphics can be created using Panel Builder software, stored internally, and launched at start-up or at the push of a button. The SC-TC-D comes with a capacitive touch display and built-in WiFi and Bluetooth for expanding control to mobile devices.


  Version Language Size Uploaded
Data Sheet
updated: Mar 22, 2021
    379 KB Mar 22, 2021
User Manual - SVSI Wall Controllers
updated: Mar 29, 2018
    4.16 MB Mar 29, 2018
    1.29 MB Jul 16, 2018
Bim Objects
SC-WPC-D - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
Panel Builder Standalone
version 2017-05-01 / v1.23.50, updated: May 17, 2018
2017-05-01 / v1.23.50     46.4 MB May 17, 2018
SVSI N8300 Wall Panel Controller Firmware Updater
version 05-01-2017, updated: Mar 15, 2018
05-01-2017     65.1 MB Mar 15, 2018
Quick Start Guides
    1.25 MB Mar 29, 2018
Install Guides
    62.6 KB Mar 29, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


  • Cost Effective – Low cost of installation
  • Multiple Commands – Sent to multiple TCP/IP clients
  • PoE – Robust Power over Ethernet (PoE) reliability and redundancy
  • Energy Efficient – Standard PoE consumption
  • EU Compliance – Supports both US and European wiring standards


Dimensions (HWD) 4.5" x 4.5" x 1.5" (11.43 cm x 11.43 cm x 3.8 cm)
Power and Data Connection 8-wire RJ45 female Power over Ethernet (PoE)/100Base-T connector. Conforms to IEEE 802.3af Class 3 (802.3at Type 1). See Data Sheet for details.
Power Over Ethernet (PoE) Consumption: 2.5W
Interface Eight user-defined tactile buttons, See Data Sheet for details.
Display 3.5" 240x320 touch screen
Operating Temperature 32° to 104°F (0° to 40°C)
FG Numbers

FGN8301-B-01 (Black)
FGN8301-W-01 (White)
