V2-MASTER (discontinued)

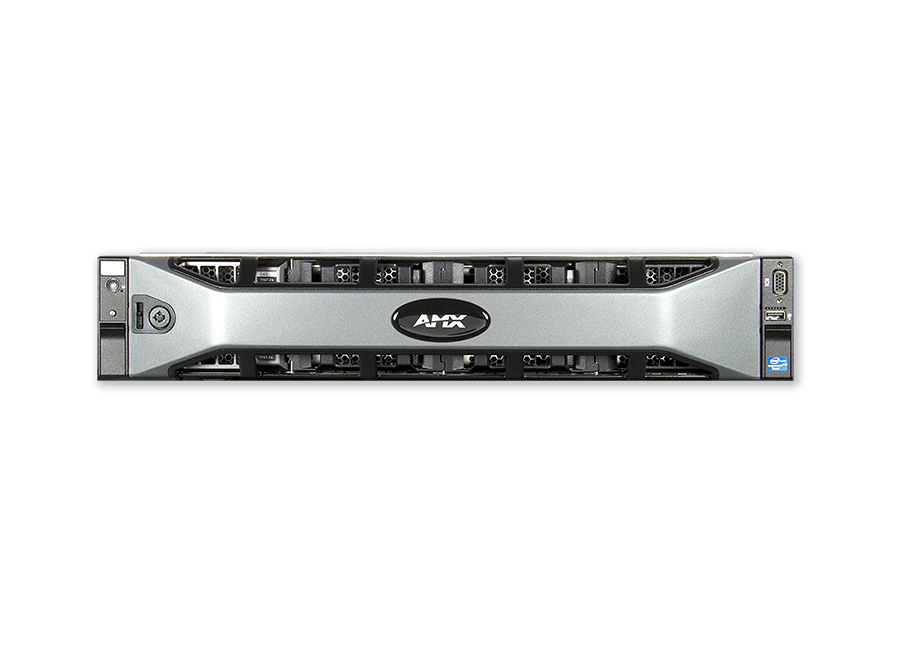

Vision²® Master Server

V2-MASTER
Larger Images

Vision² provides a sophisticated and fully integrated video-capture, management and broadcast system for organizations that want a comprehensive, yet simple-to-use IP video delivery solution. At the heart of any Vision² system is one or more Master Servers.

The Vision² Master Server is an enterprise-class appliance that runs the core Vision² software. Customers can customize a Vision² system to meet their specific needs by purchasing one or more Vision² service licenses. Customers that require more services than can be managed by one Vision² Master Server can add additional servers to the system. By designating one of the Vision² Servers as the "Master" in the system, the entire Vision² system can be managed from a single web interface, even though the services are running on discrete servers.

NOTE: V2-MASTER-XX00 servers do not support the WMV Live, WMV Record, WMV Producer or WMV Reflector services.

Downloads

  Version Language Size Uploaded
Manuals
file type icon Instruction Manual - Vision2 v.8.2
updated: Oct 2020
    4.26 MB Oct 2020
file type icon Instruction Manual - Vision2 v.8.4
updated: Oct 2020
    1.76 MB Oct 2020
Quick Start Guides
file type icon Quick Start Guide - V2-MASTER, Vision2 Master Server
updated: Oct 2020
    317 KB Oct 2020
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: Oct 2020
    2.61 MB Oct 2020
file type icon Multicast for Enterprise Video Streaming
updated: Apr 2018
    7.79 MB Apr 2018
Device Modules
file type icon In-Room Duet Module
updated: Oct 2020
    10.3 MB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Comprehensive video management and distribution - Manage video encoders, record streaming video, playback video on demand, and create your own IP broadcast channels by adding services to the Vision² system.
  • Scalable to suit your needs - Vision² can be scaled from a small video system to a large video network by adding additional servers and services.
  • Simple to implement and use - All servers in a Vision² system can be managed from a single Web interface.
  • Searchable video storage - Videos are stored with metadata, allowing users to search for video content. Metadata fields can be customized by the system administrator.
  • Manage set-top boxes - The status of all set-top boxes in a system can be monitored from the Vision² Web pages. The administrator can also command one or more set-top boxes to play a particular live channel or video on demand selection.
  • Control API – Execute Vision2 functions from a NetLinx control system or from a custom Web page.
  • Active Directory integration – Limit access to Archive folders based on a user's Active Directory group membership.
  • Support for the most popular video formats – Archive and playback (depending on the capabilities of the playback device) popular video formats:
    • MPEG2-TS (MPEG-2/H.264)
    • MP4 (H.264)
    • WMV (WM9/VC-1) – video on demand only
    • FLV (On2 VP6) – video on demand only
  • Numerous playback options – Content can be played on a PC, set-top box, or many of the most popular mobile devices.



KIT INCLUDES
FG3106-03K, -12K, -24K and -36K Master Server Kits include:

  • 1 Vision² Master Server with archive storage
  • 1 Vision² License (FG3100-00L)
  • 1 Archive License (FG3100-05L)

FG3106-03, -12, -24 and -36 are designed for expansion use only and do not include the licenses. Please use these expansion servers in conjunction with one of the master server kits above.

Specifications

Dimensions (HWD) 3 7/16" x 19" x 30" (8.7 cm x 48.2 cm x 75.5 cm)
Power 1100 W (100-240 VAC), 50/60 Hz
Operating Temperature 50° to 95° F (10° to 35° C)
CPU Processor: 2x Intel Xeon E5-2620, 2.00 GHz, RAM: 16 GB, Operating System (Available): 146 GB (15K RPM),
Video Archive Available space due to RAID configuration, 1.8 TB to 27.3 TB. See Data Sheet for details.
Connectivity Networking: 4x 10/100/1000 BASE-T, USB 2.0: 3 ports, Serial: 1 port, Monitor: 2 ports
FG Numbers

FG3106-03K (V2-MASTER-0300, 3 TB Master Server Kit)
FG3106-24K (V2-MASTER-2400, 24 TB Master Server Kit)
FG3106-03 (V2-SERVER-0300, 3 TB Expansion Server)
FG3106-12K (V2-MASTER-1200, 12 TB Master Server Kit)
FG3106-36K (V2-MASTER-3600, 36 TB Master Server Kit)
FG3106-12 (V2-SERVER-1200, 12 TB Expansion Server)
FG3106-24 (V2-SERVER-2400, 24 TB Expansion Server)
FG3106-36 (V2-SERVER-3600, 36 TB Expansion Server)
