DGX-AIE

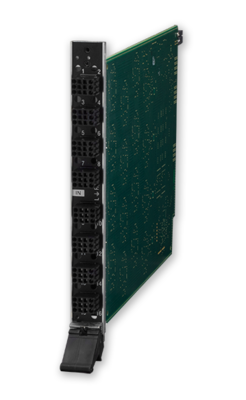

Enova® DGX Audio Insert / Extract Board

DGX-AIE
Larger Images

The DGX-AIE is an audio insert / extract board for the Enova DGX 8, 16, 32 and Enova DGX 64. The board provides insert or extract access to the first 16 video input or output positions. The Enova DGX 8, 16 and Enova DGX 32 enclosures both support one audio insert/extract board on the input side and one on the output side. The Enova DGX 64 supports 4 audio insert / extract boards on the input side and four on the output side. The audio insert/extract board simplifies system design by allowing audio from a source located near the Enova DGX to be plugged directly into the system. This can dramatically reduce the overall cost of the system by eliminating the need for additional Transmitters or Receivers. Extract embedded audio and send to a separate audio system to be distributed throughout an environment.

Common Applications

The Enova DGX Audio Insert / Extract Board is ideal for applications when local sources such as computers with analog audio outputs are plugged directly into the Enova DGX. Inserted audio can be embedded onto any Enova DGX output. The board also allows de-embed audio from Enova DGX HDMI inputs to be sent to a separate audio system.

Configuration Tool

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    288 KB Mar 2024
Manuals
file type icon Instruction Manual - Enova DGX 8, 16, 32, 64 Digital Media Switchers
updated: Mar 2018
    16.4 MB Mar 2018
file type icon Support Guide - Enova DGX Board Replacement
version P, updated: Mar 2021
  868 KB Mar 2021
file type icon Support Guide – IO Board and Endpoint Compatibility
updated: Feb 2021
    46.4 KB Feb 2021
Certifications
file type icon Enova DGX 100 Series CE Declaration of Conformity
updated: Feb 2021
    276 KB Feb 2021
file type icon Enova DGX 100 Series CB Test Certificate 60950
updated: Feb 2021
    201 KB Feb 2021
file type icon Enova DGX 100 Series CB Test Certificate 62368
updated: Feb 2021
    143 KB Feb 2021
file type icon Enova DGX 100 Series Enclosure UL Certificate of Compliance
updated: Feb 2021
    176 KB Feb 2021
Whitepapers
file type icon Using SDI with the Enova DGX & DVX
updated: Oct 2020
    484 KB Oct 2020
Quick Start Guides
file type icon Quick Start Guide - Enova DGX Audio Insert/Extract Board
updated: Mar 2018
    1.71 MB Mar 2018
file type icon Quick Start Guide - Enova DGX 8, 16, 32, 64 Digital Media Switchers
updated: Mar 2018
    419 KB Mar 2018
Configuration Tools
file type icon Enova DGX 100 Series Configuration Tool
updated: Mar 2021
    Mar 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • De-embed Audio – Breakaway embedded audio from Enova DGX inputs and send to a separate audio system to distribute throughout an environment
  • Embed Audio – Insert local analog audio into pre-switched digital video paths or post switched digital audio paths depending on audio insert/extract board location
  • Individually Configurable – Each audio access point can be individually configured for insertion or extraction functionality

Specifications

FG Numbers FG1058-705
