DGX6400-ASB

Audio Switching Board Kit For Enova DGX 6400

DGX6400-ASB
Larger Images

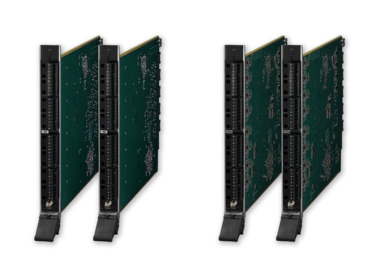

The DGX6400-ASB is two pairs of audio switching boards that include two Input and two Output boards for the Enova DGX 6400. The boards enable a host of audio switching capabilities including Audio Breakaway and Downmixing. DSP functionality includes a 10 Band Parametric EQ on every output which allows audio tuning for each specific environment based on its acoustics. The Enova DGX Web Configuration interface makes it simple and easy to set up these audio features with the Enova DGX. It includes a test tone generator that allows testing of every audio connection without the need for a separate audio source. The Audio Switching Boards are only sold in pairs and must be used together.

Configuration Tool

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    233 KB Mar 2024
Manuals
file type icon Support Guide - Enova DGX Board Replacement
version P, updated: Mar 2021
  868 KB Mar 2021
file type icon Support Guide – IO Board and Endpoint Compatibility
updated: Feb 2021
    46.4 KB Feb 2021
Certifications
file type icon Enova DGX 100 Series Enclosure UL Certificate of Compliance
updated: Feb 2021
    176 KB Feb 2021
file type icon Enova DGX 100 Series CB Test Certificate 62368
updated: Feb 2021
    143 KB Feb 2021
file type icon Enova DGX 100 Series CB Test Certificate 60950
updated: Feb 2021
    201 KB Feb 2021
file type icon Enova DGX 100 Series CE Declaration of Conformity
updated: Feb 2021
    276 KB Feb 2021
Configuration Tools
file type icon Enova DGX 100 Series Configuration Tool
updated: Mar 2021
    Mar 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Audio Switching 80 x 80 Matrix Audio Switching with each output having independent volume, EQ, and sync delay
Audio Inputs 64 Embedded Digital Audio Inputs from Video Input Positions
Audio Outputs 64 Embedded Digital Audio to Video Outputs
Audio Input Compression Independent compression per input; attack: 1 to 2000 ms; release: 10 to 5000 ms; compression ratio: 1 to 20; threshold: -60 to 0 dB
Audio Input Gain Compensation -24 dB to +24 dB, 1 dB steps
Audio Output Compression 10-band parametric EQ with variable center frequency, filter type and Q per band; center frequency: 20 Hz to 20 kHz; EQ gain: -12 to +12 dB; Q: 0.1 to 20; filter types: bell, bass shelving, treble shelving, low pass, high pass, band pass, band stop
Audio Output Sync Delay 0 to 200 ms
Balance Control 20 steps each left and right
Audio Control per Output Independent EQ, volume and balance control per output
Downmix Input Downmix input fed from selectable embedded audio input from any Enova DGX Input Board. Downmixed audio switchable to all embedded/auxiliary Dante encoded audio outputs. +17 dBu
FG Numbers FG1061-764
