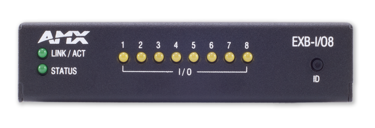

EXB-IO8

ICSLan Input/Output Interface, 8 Channels

Larger Images

ICSLan Device Control Boxes allow users to manage devices remotely from a Controller over an Ethernet network. This provides a beautifully simple method for a centralized control environment allowing users to share a controller among multiple smaller rooms versus controllers in every room. Ethernet has become the industry standard for connecting devices and the ICSLan Device Control Boxes make it easy to introduce control to equipment such as projectors located extended distances from a Controller. Additionally, the number of ports on an AMX Controller can be expanded when all ports are fully populated. Because they employ Native NetLinx technology, it is extremely simple to add an EXB to an AMX installation.

Common Applications

Conference rooms, classroom or auditoriums where a single controller is used to manage multiple devices such as projectors spread throughout a facility or to add additional ports to an AMX Central Controller.

Downloads

  Version Language Size Uploaded
Data Sheet
updated: Nov 21, 2020
    307 KB Nov 21, 2020
EXB-IO8 Quickstart Guide
updated: Nov 21, 2020
    128 KB Nov 21, 2020
Manuals
    854 KB Oct 22, 2020
CAD Drawings
    9.19 MB Apr 06, 2018
    34.9 MB Apr 06, 2018
    139 KB Apr 06, 2018
Bim Objects
EXB-I/O8 - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
Firmware
ICSLan Device Control Boxes Firmware
version 1.0.49, updated: Sep 01, 2018
1.0.49     232 KB Sep 01, 2018
A&E (Architectural & Engineering) Specifications
    35.5 KB Jun 27, 2018
Certifications
    243 KB Apr 25, 2018
    255 KB Apr 25, 2018
Whitepapers
AMX AV/IT Administrator's Guide
updated: Oct 23, 2020
    2.61 MB Oct 23, 2020
Quick Start Guides
    128 KB Oct 22, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Enable Ports over Ethernet – Provides a future proof solution to add ports anywhere
  • Easy to Program – Programming is identical to any other device ports on the Controller
  • Power over Ethernet – Eliminate the need for a power source at the install location
  • Small Form Factor – Compact design makes it easy to hide for a clean installation
  • NetLinx Studio Tools – Configuration tools make ICSLan Device Control Boxes easy to deploy

Specifications

Dimensions (HWD) 1" x 4 3/8" x 5 1/8" (2.5 cm cm x 11.1 cm x 13.00 cm), RU: 1
Weight 1 lb (454 g)
Power Over Ethernet (PoE) No local Power Supply needed
Power Draw 1.9 Watts
Connectors (1) RJ-45 ICS-LAN Ethernet Connector, (1) 10-Pin 3.5mm captive-screw terminal (RS-232/422/485 port)
FG Numbers FG2100-21
