MST-1001 (discontinued)

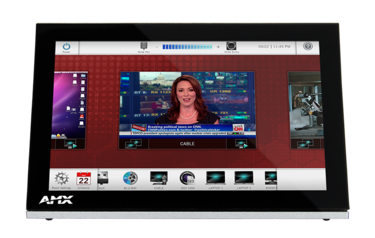

10.1" Modero S® Series G4 Tabletop Touch Panel

Larger Images

Replacement Products

  • MSA-STMK-10

    Secure Table Mount Kit for 10.1" Modero S® Series Tabletop Touch Panel
  • MXA-MPL

    MXA-MPL

    Modero X® and Modero S Series Multi Preview Live
  • PS-POE-AF-TC

    PS-POE-AF-TC

    PoE Injector, 802.3AF Compliant
  • HPG-10

    HPG-10

    3/4" Mini-Grommet
  • MXA-CLK

    MXA-CLK

    Modero X® and Modero S Series Screen Cleaning Kit
  • MXA-USB-C

    MXA-USB-C

    USB Port Covers for the Modero X® and Modero S Series Touch Panels

The MST-1001 / 10.1" Modero S Series Tabletop Touch Panel is a control surface for managing a wide variety of digital and analog devices in conference rooms, classrooms and other types of spaces. The MST-1001 has a sleek design that remains affordable due to its ruggedized plastic housing. Key features include a brilliant 24-color depth, PoE connectivity, video streaming, and VoIP support – all at an economical price point.

Common Applications

  • The MST-1001 is ideal for small to mid-size conference rooms on a tight budget, as well as smaller rooms or huddle spaces that require a more flexible and powerful control interface than a keypad or ControlPad. It can also serve as a second control panel in a large conference room or auditorium.
  • Combined with the secure table mount kits and Kensington mounts, the MST-1001 is perfect for classrooms and other learning spaces where the panel can be securely fixed to a table or other flat surface.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Sep 18, 2021
    369 KB Sep 18, 2021
file type icon Comparison Chart
updated: Sep 18, 2021
    173 KB Sep 18, 2021
Manuals
file type icon Installation Hardware Reference Manual - Modero S Series Touch Panels
updated: Oct 22, 2020
    2.04 MB Oct 22, 2020
CAD Drawings
file type icon Pictorial Drawing - MST-1001, 10" Modero S Series Tabletop Touch Panel (DXF)
updated: Oct 22, 2020
    810 KB Oct 22, 2020
file type icon Pictorial Drawing - MST-1001, 10" Modero S Series Tabletop Touch Panel (PDF)
updated: Oct 22, 2020
    136 KB Oct 22, 2020
Software
platform icon G4 Support Files
version 3.3.62, updated: Jul 16, 2018
3.3.62     35.7 MB Jul 16, 2018
Firmware
platform icon Modero S Series Touch Panels Firmware
version 2.108.40, updated: Mar 16, 2018
2.108.40     47.7 MB Mar 16, 2018
Programming Guides
file type icon Configuration and Programming Guide - Modero S/X Series G4 Touch Panels HydraPort Touch Connection Ports
updated: Oct 22, 2020
    2.16 MB Oct 22, 2020
Certifications
file type icon Modero S Series 4.3"/7"/10.1" Touch Panels UL Certificate of Compliance
updated: Apr 26, 2018
    416 KB Apr 26, 2018
file type icon Modero S Series 7"/10.1" Touch Panel CE Declaration of Conformity
updated: Apr 26, 2018
    255 KB Apr 26, 2018
file type icon Modero S Series 4.3"/7"/10.1" Touch Panels IECEE CB Test Certificate
updated: Apr 26, 2018
    191 KB Apr 26, 2018
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: Oct 23, 2020
    2.61 MB Oct 23, 2020
Application Guides
file type icon AMX and the Perfect Meeting Room
updated: Oct 22, 2020
    426 KB Oct 22, 2020
Quick Start Guides
file type icon Quick Start Guide - MST-1001 Modero S Series Tabletop Touch Panel
updated: Oct 22, 2020
    244 KB Oct 22, 2020
Touch Panel Files
file type icon MST-1001 Modero S Series Landscape Demo Touch Panel File (1280x800)
updated: Jul 18, 2018
    10.2 MB Jul 18, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Powerful Graphics – Powered by the G4 graphics engine, the Modero S Series features streaming video and brilliant 24-bit color depth
  • Elegant & Responsive User Interface – Exclusive SmoothTouch™ display supports single touch gesturing and delivers responsive performance
  • Architectural Design Consistency – Install both Modero S and Modero X touch panels throughout a facility for consistent style on any budget
  • Secure Table Mounting Option – Our beautifully styled secure mounting plate attaches to the Modero S tabletop touch panels and secures with under-table tamper resistant bolts making it virtually theft proof
  • Optional Kensington Mount – If it's not possible or desirable to mount the touch panel to the table, the secure plate can also be used in conjunction with a Kensington Lock

Specifications

Display Size (WH) 9.1" x 5.9" (230 mm x 149 mm), 10.8" (274 mm) diagonal
Viewable Area (WH) 8.5" x 5.4" (217 mm x 136 mm ), 10.0" (256 mm) diagonal
Resolution 1280x800
Viewing Angle Vertical: ± 85°, Horizontal: ± 85°
Aspect Ratio 16:9
Touch Overlay Resistive
Graphics Engine AMX G4
Front Panel Components Sleep Button
Power Consumption Full-On: 14 W (max)
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers FG2265-05
