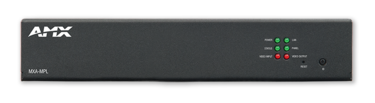

The Modero X/S Series Multi Preview Live is a touch panel accessory that displays a HD digital video stream on Modero X and Modero S Series Touch Panels when used in conjunction with an Enova DVX All-In-One Presentation Switcher or Enova DGX Digital Media Switcher. The MXA-MPL accepts analog or digital video inputs over HDMI and converts them to a video stream. The MXP-MPL also supports all of the features of the MXA-MP, displaying up to 10 JPEG preview images on panels. The MXA-MPL makes it easy for users to quickly identify what is currently being displayed by up to 10 source devices.
Larger Images
Common Applications
Use the MXA-MPL to preview a live video stream or snapshot of the content from a source device before switching to that source.
Downloads
| Size | ||||
Data Sheet
updated: Jan 11, 2023
|
379 KB | |||
Manuals | ||||
|
Instruction Manual - MXA-MP, MXA-MPL Modero X Series Multi Preview and Multi Preview Live
updated: Oct 22, 2020
|
1.03 MB | |||
CAD Drawings | ||||
|
Pictorial Drawing - MXA-MPL Multi Preview Live /MXA-MP Multi Preview (PDF)
updated: Oct 22, 2020
|
727 KB | |||
Pictorial Drawing - MXA-MPL Multi Preview Live /MXA-MP Multi Preview (DXF)
updated: Oct 22, 2020
|
211 MB | |||
|
Pictorial Drawing - MXA-MPL Multi Preview Live /MXA-MP Multi Preview (DWG)
updated: Oct 22, 2020
|
65.5 MB | |||
Whitepapers | ||||
|
Digital Media Capabilities of the Modero X Series Touch Panels
updated: Apr 25, 2018
|
1.22 MB | |||
Certifications | ||||
|
MXA-MP/MXA-MPL IECEE CB Test Certificate
updated: Apr 26, 2018
|
235 KB | |||
|
MXA-MP/MXA-MPL CE Declaration of Conformity
updated: Apr 26, 2018
|
255 KB | |||
|
MXA-MP/MXA-MPL UL Certificate of Compliance
updated: Apr 26, 2018
|
242 KB | |||
Device Modules | ||||
|
Multi Preview/Multi Preview Live Module
updated: Oct 22, 2020
|
31.1 MB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Features
- Supports one HD digital video stream or up to 10 preview images
- Updates all 10 preview images sequentially or one image continuously
- Streams digital and analog video sources to a Modero X Series Touch Panel
- Multi-format video input accepts RGB, Component, Composite, or S-Video via an optional DVI connector adapter
- Seamlessly interconnects between a Modero X Series Touch Panel and an Enova DGX or Enova DVX
Specifications
| FG Numbers | FG5968-10 |
Recommended Accessories
-
MPA-VRK
Rack Mounting Tray for MXA-MPL and MXA-MP -
CC-DVI-5BNCM
DVI to 5 BNC Male Cable -
CC-DVI-RCA3M
DVI to 3 RCA Male Cable -
CC-DVIM-VGAF
DVI to HD-15 Female Adapter -
CC-3.5ST5-RCA2F
5-pin 3.5mm Phoenix to 2 RCA Female Cable
