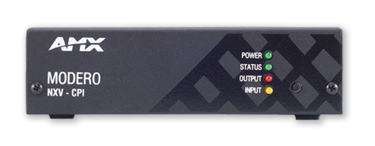

NXV-CPI

Control Phone Interface

Larger Images

The NXV-CPI is the ideal solution for organizations that have already invested in Cisco® IP Phones that would like to add basic control to a room. The NXV-CPI allows Cisco Phone users to minimize their investment in new infrastructure by transforming Cisco Phones into Modero® Virtual Touch Panels. Using the phone's built-in touch screen, users can access and control lights, shades and other AV equipment in the room. Dealers can use the NXV-CPI as a cost-effective entry point to control. As control requirements grow, users can easily upgrade to an AMX Touch Panel. Setting up the system is easy. Simply browse to NXV-CPI's Web page, label the buttons and add the related NetLinx® control commands. NXV-CPI is compatible with Cisco models 7965G and 7975G.

Common Applications

The NXV-CPI is ideal for entry level conference rooms who have already invested in Cisco IP phones that want to integrate AMX control into the room.

Downloads

  Version Language Size Uploaded
Data Sheet
updated: Jul 06, 2018
    320 KB Jul 06, 2018
Manuals
Instruction Manual - NXV-CPI Control Phone Interface
updated: Mar 30, 2018
    1.5 MB Mar 30, 2018
Software
NXV-CPI Control Phone Interface Firmware
version 1.0.10, updated: Nov 15, 2018
1.0.10    8.29 MB Nov 15, 2018
Quick Start Guides
Quick Start Guide - NXV-CPI Control Phone Interface
updated: Mar 30, 2018
    608 KB Mar 30, 2018
Safety Sheets
Safety Instructions - NXV-300 Modero Virtual Touch Panel / NXV-CPI Control Phone Interface
updated: Mar 30, 2018
    3.51 MB Mar 30, 2018
Certifications
NXx-xxx - IECEE CB Test Certificate
updated: Apr 25, 2018
    227 KB Apr 25, 2018
NXV-xxx - CE Declaration of Conformity
updated: Apr 25, 2018
    255 KB Apr 25, 2018
A&E (Architectural & Engineering) Specifications
A&E Spec - NXV-CPI Control Phone Interface
updated: Jun 28, 2018
    50 KB Jun 28, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Transform Cisco IP Phones into Modero Virtual Touch Panels – Gain access and control of the AMX system using the phone's built-in touch screen
  • Cost-Effective Control from an IP Phone – Control lights, shades and AV equipment right from two fully integrated phones.
  • Control any Room 4 Ways – Touch the screen, push the hard buttons, use the soft keys, or the numeric keypad.
  • Power over Ethernet – Reduces installation costs and removes the need for a local power supply

Specifications

Dimensions (HWD) With feet: 1 11/16" x 5 9/16" x 4 1/8" (4.2 cm x 14.1 cm x 10.4 cm), Without feet: 1 1/2" x 5 9/16" x 4 1/8" (3.9 cm x 14.1 cm x 10.4 cm)
Weight 1.45 lbs (0.65 kg)
Power Over Ethernet (PoE) No local Power Supply needed
Memory 64 Mbytes of RAM, 256 Mbytes of FLASH
Rear Panel Components LAN Port, LEDs: SPD (speed), L/A (link/activity). See Data Sheet for details.
FG Numbers FG2263-03
