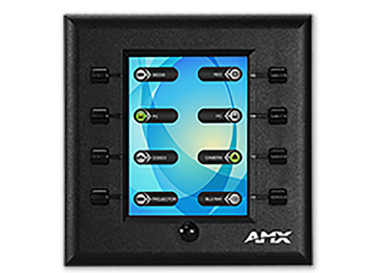

Wall Controllers are stand-alone, dual-gang IP controllers that send commands to multiple IP clients with the push of a button. N-Series Controllers have nine programmable tactile buttons with a 240 x 320 display. Programming is done individually through the built-in web-server or collectively to multiple units using N-Command Control Appliances. Multi-page custom graphics can be created using Panel Builder software, stored internally, and launched at start-up or at the push of a button. The SC-TC-D comes with a capacitive touch display and built-in WiFi and Bluetooth for expanding control to mobile devices.
|Data Sheet||379 KB||Dec 01, 2016|
|User Manual - SVSI Wall Controllers||4.16 MB||Mar 29, 2018|
|Tutorial - SVSI N-Touch Panel Builder||1.29 MB||Jul 16, 2018|
|SC-WPC-SM - BIM Object||Aug 12, 2019|
|Panel Builder Standalone||2017-05-01 / v1.23.50||46.4 MB||Jul 17, 2018|
|SVSI N8300 Wall Panel Controller Firmware Updater||05-01-2017||65.1 MB||Mar 15, 2018|
Quick Start Guides
|Quick Start Guide - SVSI Wall Controllers||1.25 MB||Mar 29, 2018|
|Cut-Out Template - SVSI Wall Controllers||62.6 KB||Mar 29, 2018|
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
- Cost Effective – Low cost of installation
- Multiple Commands – Sent to multiple TCP/IP clients
- PoE – Robust Power over Ethernet (PoE) reliability and redundancy
- Energy Efficient – Standard PoE consumption
- EU Compliance – Supports both US and European wiring standards
|Dimensions (HWD)||4.5" x 4.5" x 1.5" (11.43 cm x 11.43 cm x 3.8 cm)|
|Power and Data Connection||8-wire RJ45 female Power over Ethernet (PoE)/100Base-T connector. Conforms to IEEE 802.3af Class 3 (802.3at Type 1). See Data Sheet for details.|
|Power Over Ethernet (PoE)||Consumption: 2.5W|
|Interface||Eight user-defined tactile buttons, See Data Sheet for details.|
|Display||3.5" 240x320 touch screen|
|Operating Temperature||32° to 104°F (0° to 40°C)|
NOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
