AMX CB-MXP19/20

Larger Images

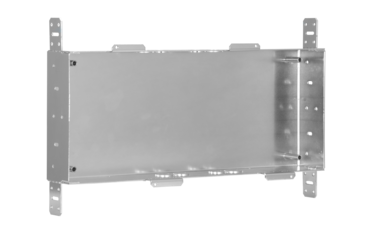

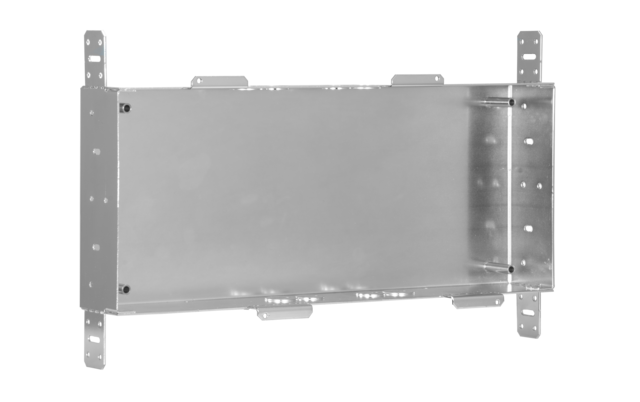

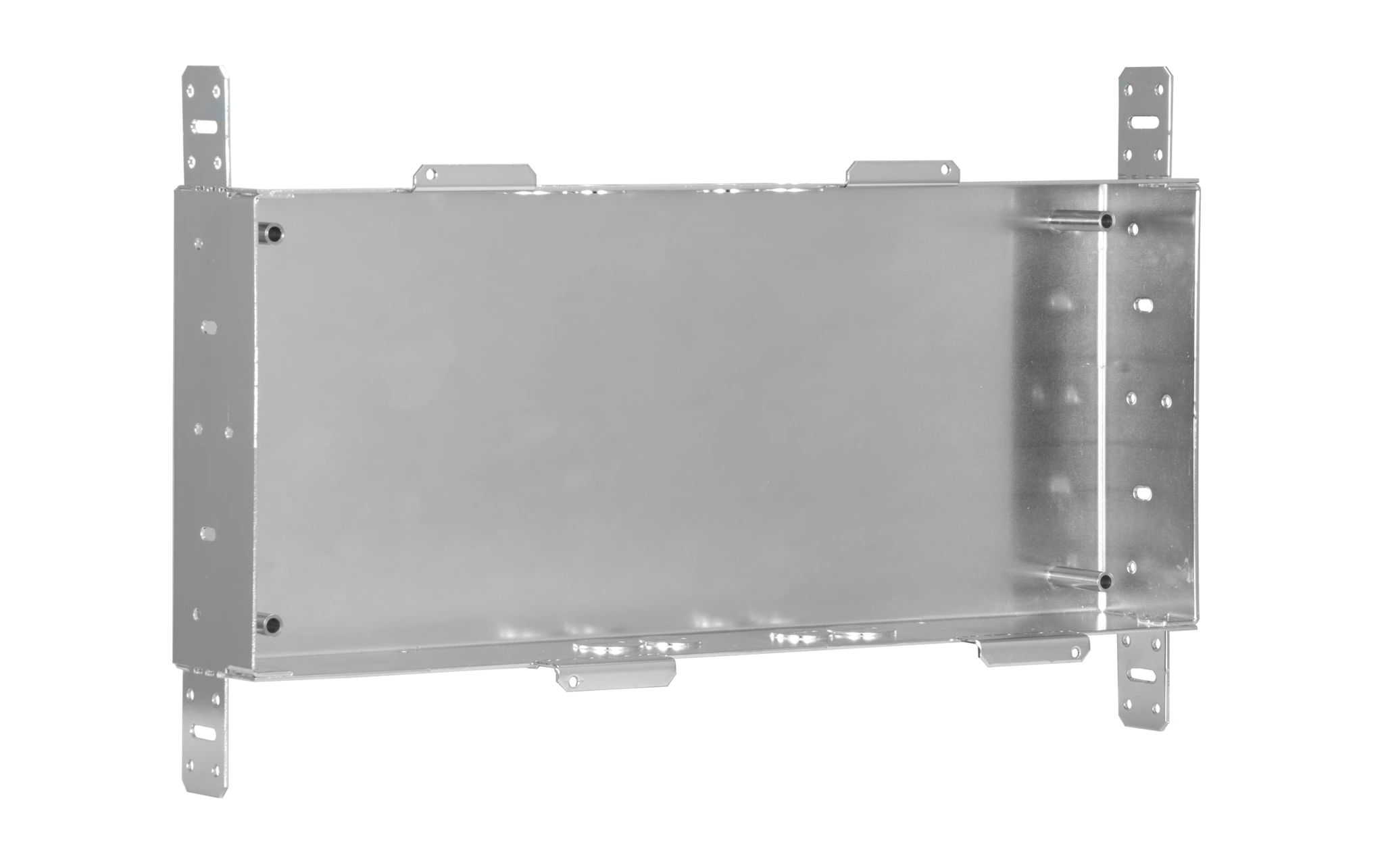

The Rough-In Box is an optional accessory for Modero X Series 19" or 20" Wall Mount Touch Panels. It allows the panel to be mounted directly to the studs/pre-wall and includes a wall box and mounting screws.

Downloads

CAD Drawings

	Size	Uploaded
Pictorial Drawing - CB-MXP19/20 Rough-In Box for the 19" or 20" Wall Mount Modero X Series Touch Panels (PDF) updated: Jul 2018	281 KB	Jul 2018
Pictorial Drawing - CB-MXP19/20 Rough-In Box for the 19" or 20" Wall Mount Modero X Series Touch Panels (DXF 1 of 2) updated: Jul 2018	800 KB	Jul 2018
Pictorial Drawing - CB-MXP19/20 Rough-In Box for the 19" or 20" Wall Mount Modero X Series Touch Panels (DXF 2 of 2) updated: Jul 2018	721 KB	Jul 2018

Bim Objects

	Size	Uploaded
CB-MXP19/20 - BIM Object updated: Aug 2019		Aug 2019

Quick Start Guides

	Size	Uploaded
Quick Start Guide - CB-MXP19/20 Rough-In Box and Cover Plate for Modero X Series 19" and 20" Panels updated: Jul 2018	367 KB	Jul 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

DIMENSIONS FOR ROUGH-IN BOX (HWD)	8 7/8" x 14 3/8" x 2 1/4" (22.3 cm x 36.6 cm x 5.7 cm)
DIMENSIONS FOR ROUGH-IN BOX COVER PLATE (HWD)	5 7/8" x 4 1/4" x 5/8" (14.5 cm x 36.2 cm x 1.5 cm)
Included Accessories	Cover Plate for Rough-in Box Back Box to Rough-In Box Mounting Screws (4) (80-5967-03) Cover Plate to Rough-In Box Mounting Screws (4) (80-5967-03)
Certification	cTUVus, UL
FG Numbers	FG039-15
