CB-MXP10 (discontinued)

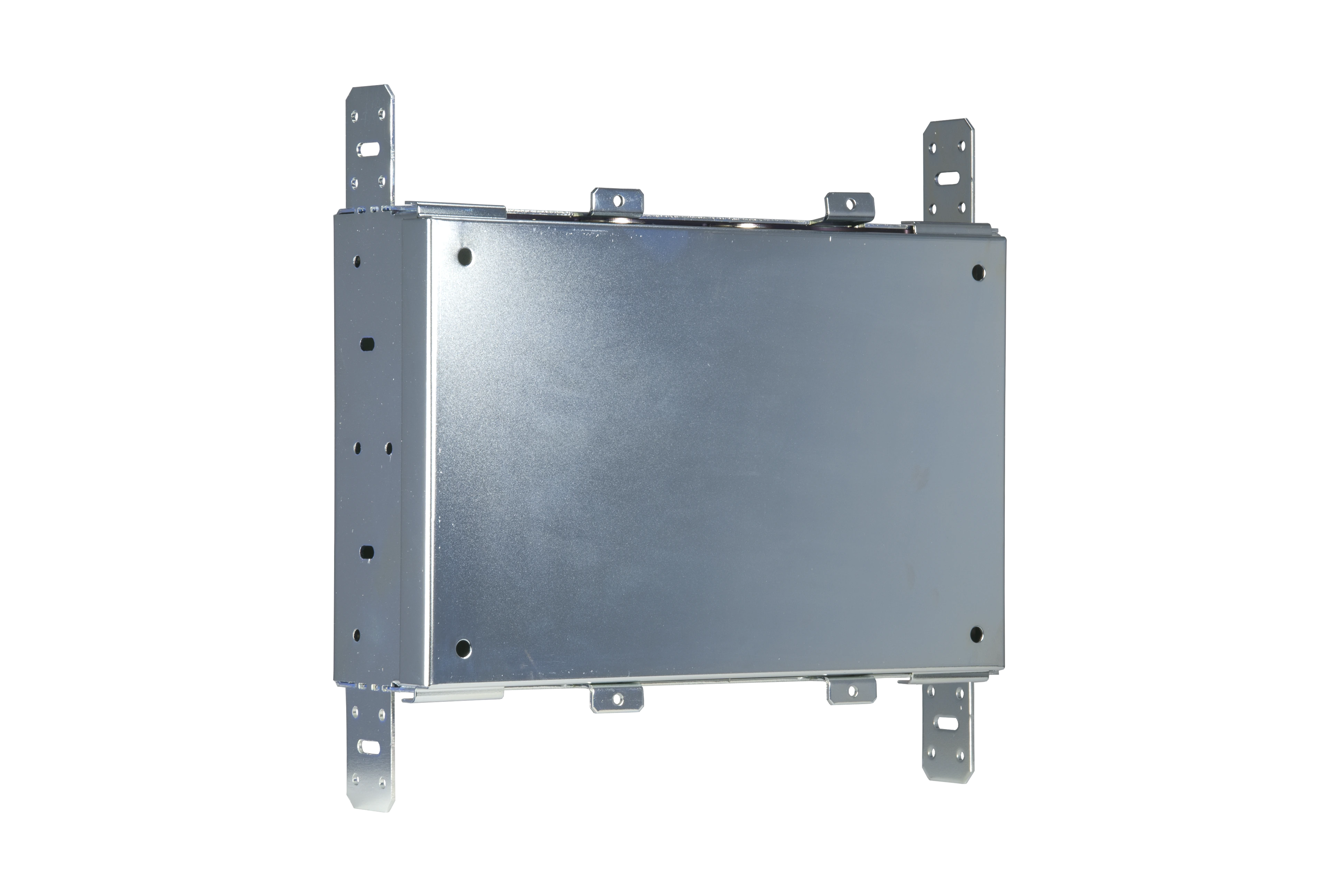

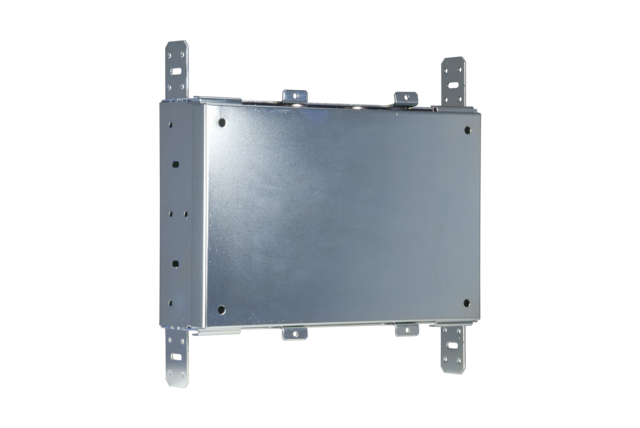

Rough-In Box and Cover Plate for the 10" Wall Mount Modero X® Series Touch Panels

Larger Images

The Rough-In Box is an optional accessory for Modero X Series 10" Wall Mount Touch Panels. It allows the panel to be mounted directly to the studs/pre-wall and includes a wall box and mounting screws.

Downloads

  Version Language Size Uploaded
CAD Drawings
Pictorial Drawing - CB-MXP10 Rough-In Box and Cover Plate for the 10" Wall Mount Modero X Series Touch Panels (PDF)
updated: Jul 10, 2018
    244 KB Jul 10, 2018
Pictorial Drawing - CB-MXP10 Rough-In Box and Cover Plate for the 10" Wall Mount Modero X Series Touch Panels (DXF 1 of 2)
updated: Jul 10, 2018
    1.39 MB Jul 10, 2018
Pictorial Drawing - CB-MXP10 Rough-In Box and Cover Plate for the 10" Wall Mount Modero X Series Touch Panels (DXF 2 of 2)
updated: Jul 10, 2018
    945 KB Jul 10, 2018
Pictorial Drawing - CB-MXP10 Rough-In Box and Cover Plate for the 10" Wall Mount Modero X Series Touch Panels (DWG 1 of 2)
updated: Jul 10, 2018
    389 KB Jul 10, 2018
Pictorial Drawing - CB-MXP10 Rough-In Box and Cover Plate for the 10" Wall Mount Modero X Series Touch Panels (DWG 2 of 2)
updated: Jul 10, 2018
    264 KB Jul 10, 2018
Quick Start Guides
Quick Start Guide - CB-MXP10 Rough-In Box and Cover Plate for Modero X Series 10" Panel
updated: Jul 10, 2018
    351 KB Jul 10, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Dimensions (HWD) 8 5/8" x 9 7/8" x 2 1/4" (22.0 cm x 22.7 cm x 5.7 cm)
Included Accessories
  • Cover Plate for Rough-in Box
  • Back Box to Rough-In Box Mounting Screws (4) (80-5967-03)
  • Cover Plate to Rough-In Box Mounting Screws (4) (80-5967-03)
Certification cTUVus, UL
FG Numbers FG039-17
