DGX-I-DXF-SMS

Enova® DGX DXLink™ Single Mode Fiber Input Board, Simplex

Larger Images

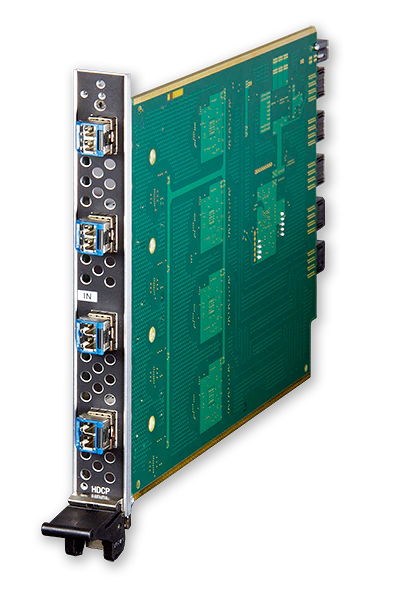

The DGX-I-DXF-SMS is a DXLink Fiber input board with field serviceable SFP modules designed for use with single mode fiber, and is compatible with the Enova DGX 8, 16, 32 and 64 Digital Media Switcher Enclosures. Use it as part of an integrated system to receive audio and video over single mode fiber from up to 10 Km from a DXLink Fiber Transmitter. Fiber uses light to send data, rather than electric signals, making it both the highest quality and most secure way to transmit video as it is not susceptible to electronic noise or non-intrusive physical wiretapping. Further, by removing the fiber return path simplex models provide an added layer of security*.

Common Applications

The Enova DGX DXLink Input Board is ideal for applications where the demands of high-resolution video clarity, long distance transmission and maximum security need to be met without compromise including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas and museums.

Configuration Tool

Downloads

  Version Language Size Uploaded
Data Sheet     328 KB Jul 06, 2018
Comparison Chart     68.6 KB Jul 09, 2018
Manuals
Instruction Manual - Enova DGX 8, 16, 32, 64 Digital Media Switchers     16.4 MB Mar 26, 2018
TSG Enova DGX Board Repalcement Rev N     523 KB Jul 16, 2018
Instructions - Enova DGX I/O Board and Endpoint Compatibility     117 KB Mar 27, 2018
Certifications
Enova DGX 100 Series CE Declaration of Conformity     276 KB Apr 26, 2018
Enova DGX 100 Series CB Test Certificate 60950     181 KB Apr 26, 2018
Enova DGX 100 Series CB Test Certificate 62368     166 KB Apr 25, 2018
Enova DGX 100 Series Enclosure UL Certificate of Compliance     176 KB Apr 25, 2018
Whitepapers
Using SDI with the Enova DGX & DVX     484 KB Apr 25, 2018
Quick Start Guides
Quick Start Guide - Enova DGX 8, 16, 32, 64 Digital Media Switchers     419 KB Mar 26, 2018
Configuration Tools
Enova DGX 100 Series Configuration Tool     Jan 11, 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • HDCP Compliance Over Fiber – Transmit HDCP compliant video including HDMI up to 10 Km
  • Industry Leading Data Rate – DXLink is leading the way with an optical transport rate of 10 Gbps
  • Secure and Isolated – Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
  • Field Serviceable Fiber Modules – Easily remove and replace SFP modules in the field



*See Duplex models for bidirectional control over fiber. Simplex models do not support control transport over fiber (such as Ethernet, USB, IR, Serial Control or EDID); although when used as part of a complete Enova DGX solution, control can be provided if a supplemental independent network connection is used. See the "Instruction Manual – Enova DGX Digital Media Switchers" for details.

Specifications

FG Numbers FG1058-621

Recommended Accessories

  • DXF-TX-SMS

    DXLink™ Multi-Format Single Mode Fiber Transmitter, Simplex
  • DXF-TX-SMD

    DXLink™ Multi-Format Single Mode Fiber Transmitter, Duplex
