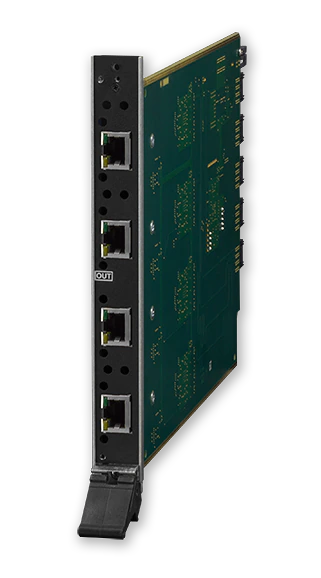

The DGX-O-DXL is a HDCP compliant twisted pair cable output board for the Enova DGX 8, 16, 32 and 64 Digital Media Enclosures. It has four connections per DXLink Output Board and is designed to transmit audio and video to DXLink Twisted Pair Receivers while passing bi-directional control and Ethernet over one standard twisted pair cable up to 100m. DXLink Power is available from the DXLink Output Board to power DXLink Twisted Pair Receivers.
The Enova DGX DXLink Twisted Pair Output Board is ideal for applications where destination devices are located up to 100 meters away from the Enova DGX Digital Media Switcher and need to be distributed throughout a commercial or residential environment.
- Data Sheet [311 KB]
- Comparison Chart [68.6 KB]
- Instruction Manual - Enova DGX 8, 16, 32, 64 Digital Media Switchers [16.4 MB]
- Enova DGX 100 Series CE Declaration of Conformity [276 KB]
- Enova DGX 100 Series CB Test Certificate 60950 [181 KB]
- Enova DGX 100 Series CB Test Certificate 62368 [166 KB]
- Enova DGX 100 Series Enclosure UL Certificate of Compliance [176 KB]
- Using SDI with the Enova DGX & DVX [484 KB]
- Cabling for Success with DXLink [1.6 MB]
- Instructions - Enova DGX I/O Board and Endpoint Compatibility [117 KB]
- Quick Start Guide - Enova DGX 8, 16, 32, 64 Digital Media Switchers [419 KB]
|Data Sheet||311 KB||Jul 06, 2018|
|Comparison Chart||68.6 KB||Jul 09, 2018|
|Instruction Manual - Enova DGX 8, 16, 32, 64 Digital Media Switchers||16.4 MB||Mar 26, 2018|
|Instructions - Enova DGX I/O Board and Endpoint Compatibility||117 KB||Mar 27, 2018|
|Enova DGX 100 Series CE Declaration of Conformity||276 KB||Apr 26, 2018|
|Enova DGX 100 Series CB Test Certificate 60950||181 KB||Apr 26, 2018|
|Enova DGX 100 Series CB Test Certificate 62368||166 KB||Apr 25, 2018|
|Enova DGX 100 Series Enclosure UL Certificate of Compliance||176 KB||Apr 25, 2018|
|Using SDI with the Enova DGX & DVX||484 KB||Apr 25, 2018|
|Cabling for Success with DXLink||1.6 MB||Apr 25, 2018|
Quick Start Guides
|Quick Start Guide - Enova DGX 8, 16, 32, 64 Digital Media Switchers||419 KB||Mar 26, 2018|
|Enova DGX 100 Series Configuration Tool||Jan 11, 2019|
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
- Only One Cable – Send audio and video while passing control, Ethernet and power over one twisted pair cable
- Send HDMI signals up to 100 meters – Extend the reach of the HDMI with HDCP signals far beyond the capabilities of typical HDMI cabling
- Standard Twisted Pair Cable – Save time and effort in installation by leveraging pre-existing cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
- Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
- HDCP Compliant
NOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
