MET-13E

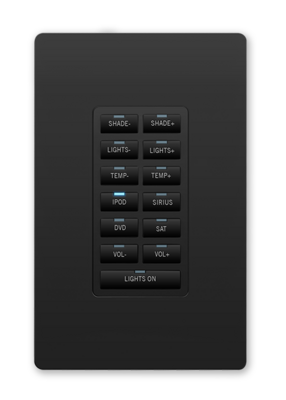

Metreau® 13-Button Ethernet Keypad

Larger Images

The MET-13E Metreau 13-Button Ethernet Keypad offers 13 buttons (12 single-width and 1 double-width) and can be used as in individual keypad or in conjunction with the 7 and 13-button Metreau Ethernet Expansion Keypads. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.

Common Applications

Ideal for cost effective control for classrooms, conference rooms, kitchens, bathrooms, and other applications requiring simplified control of a variety of connected system devices.

Configuration Tool

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Oct 18, 2021
    308 KB Oct 18, 2021
Manuals
file type icon Instruction Manual - Metreau Keypads
updated: Mar 28, 2018
    2.57 MB Mar 28, 2018
CAD Drawings
file type icon Pictorial Drawing - MET-13E 13-Button Ethernet Keypad (DWG)
updated: Oct 22, 2020
    629 KB Oct 22, 2020
file type icon Pictorial Drawing - MET-13E 13-Button Ethernet Keypad (DXF)
updated: Oct 22, 2020
    2.4 MB Oct 22, 2020
file type icon Pictorial Drawing - MET-13E 13-Button Ethernet Keypad (PDF)
updated: Oct 22, 2020
    165 KB Oct 22, 2020
Bim Objects
file type icon MET-13E - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
Firmware
platform icon Keypads with Ethernet Firmware
version 1.2.33, updated: Jun 18, 2020
1.2.33     300 KB Jun 18, 2020
Configuration Tools
file type icon Metreau Keypad Ordering Guide
updated: Jan 27, 2021
    556 KB Jan 27, 2021
file type icon Metreau Keypad Configuration Tool
updated: Mar 12, 2021
    Mar 12, 2021
A&E (Architectural & Engineering) Specifications
file type icon A&E Spec - MET-13E Metreau 13-Button Ethernet Keypad
updated: Jun 28, 2018
    55.5 KB Jun 28, 2018
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: Oct 23, 2020
    2.61 MB Oct 23, 2020
Safety Sheets
file type icon Safety Instructions - Metreau Keypads
updated: Mar 29, 2018
    80.8 KB Mar 29, 2018
Quick Start Guides
file type icon Quick Start Guide - MET-13E Metreau 13-Button Ethernet Keypad
updated: Mar 28, 2018
    185 KB Mar 28, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Connects via Standard Protocols (Ethernet) – Simplifies cabling and installation by minimizing cable runs
  • Daisy Chain up to Three Keypads – Provides the ability to connect up to three keypads using one IP address
  • Fits in Decor Style Wall Plates – Simplifies installation and looks great
  • Blue LEDs Glow to Indicate Button Selection – Improves usability by confirming the user's selection
  • Bottom Button Can Act as Single or Two Buttons – Provides added flexibility to the configuration



NOTE: Keypad wallplates not included. See ALD-CW-1, ALD-CW-2, ALD-CW-3.

Specifications

Dimensions (HWD) Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm)
Mounting Mounts into standard decor-style wallplates
Front Panel Components Pushbuttons available in a variety of field replaceable pre-printed buttons with blue LED indicators
Rear Panel Components (1) RJ-45 Ethernet Connector, 10/100, (2) 8-pin, 0.100” (2.54 mm) IDC-type male header
Power PoE (Power over Ethernet), 802.3af, class 0 , Power Connector: (1) RJ-45 Ethernet Connector, 10/100
FG Numbers

FG5793-02-WH (White)
FG5793-02-BL (Black)
