MXD-1900L-PAN (discontinued)

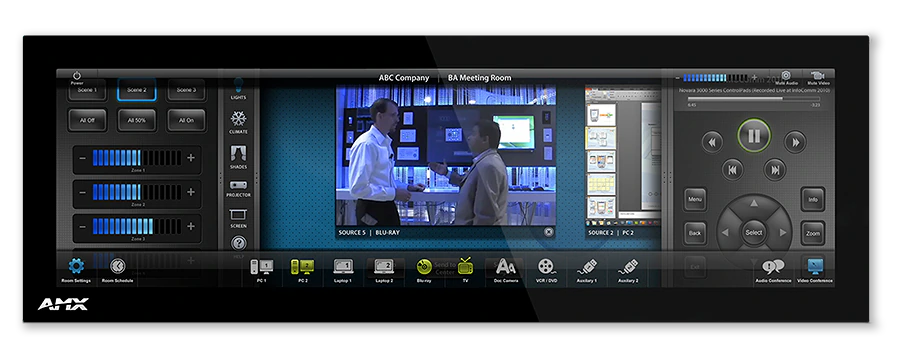

19.4" Modero X® Series G4 Wall Mount Touch Panel

Larger Images

The MXD-1900L-PAN / 19.4" Modero X® Series Wall Mount Touch Panel is a premium user interface designed for dedicated room control or scheduling. This elegantly-styled touch panel provides fast and smooth animations and transitions, along with elegant styling that looks great in any setting.

The Modero X Series Touch Panels provide several industry firsts including a beautiful, panoramic capacitive multi-touch screen that provides users access to multiple applications with minimal navigation. The distinctive appearance will complement even the most sophisticated meeting facilities and homes, with a variety of mounting options for added security and convenience.

Common Applications

  • The MXD-1900L-PAN is ideal for boardrooms, conference rooms or auditoriums where a panoramic control surface is needed to provide access to multiple functions simultaneously while remaining elegantly unobtrusive.
  • In Higher Education, the MXD-1900L-PAN is ideal for lecture halls, auditoriums, performing arts theaters and boardrooms that require extensive control capabilities.
  • In residences, it is perfect for main living areas such as kitchens, living rooms, home theaters or home offices where the panoramic control surface can be used to manage systems throughout the house.
  • The MXD-1900L-PAN can be used as a scheduling panel for high-end meeting rooms and auditoriums.
  • All Modero X Series Wall Mount panels are ideal for reception areas or other gathering places for displaying master calendars and other information.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Oct 18, 2021
    411 KB Oct 18, 2021
file type icon Comparison Chart
updated: Oct 18, 2021
    173 KB Oct 18, 2021
CAD Drawings
file type icon Pictorial Drawing - MXT-1900L-PAN 19.4" Modero X Series Panoramic Tabletop Touch Panel (DXF)
updated: Oct 22, 2020
    1.35 MB Oct 22, 2020
Bim Objects
file type icon MXD-1900L-PAN - BIM Object
updated: Aug 12, 2019
    Aug 12, 2019
Software
platform icon G4 Support Files
version 3.3.62, updated: Jul 16, 2018
3.3.62     35.7 MB Jul 16, 2018
platform icon TPDesign4
version 3.3.674, updated: Dec 29, 2019
3.3.674     68.9 MB Dec 29, 2019
Firmware
platform icon Modero X Series G4 Touch Panels Firmware
version 2.104.134, updated: Mar 16, 2018
2.104.134     47.2 MB Mar 16, 2018
Quick Start Guides
file type icon Quick Start Guide - MXD-1900L-PAN Modero X Series Panoramic Wall Touch Panel
updated: Oct 22, 2020
    267 KB Oct 22, 2020
Certifications
file type icon Modero X Series 19.4"/20.3" Touch Panels UL Certificate of Compliance
updated: Apr 26, 2018
    417 KB Apr 26, 2018
file type icon Modero X Series 19.4" Touch Panel CE Declaration of Conformity
updated: Apr 26, 2018
    255 KB Apr 26, 2018
file type icon Modero X Series 19.4"/20.3" Touch Panels IECEE CB Test Certificate
updated: Apr 26, 2018
    125 KB Apr 26, 2018
Whitepapers
file type icon Digital Media Capabilities of the Modero X Series Touch Panels
updated: Apr 25, 2018
    1.22 MB Apr 25, 2018
file type icon AMX AV/IT Administrator's Guide
updated: Oct 23, 2020
    2.61 MB Oct 23, 2020
Application Guides
file type icon AMX and the Perfect Meeting Room
updated: Oct 22, 2020
    426 KB Oct 22, 2020
Safety Sheets
file type icon Safety Instructions - Modero X Series G4 Touch Panels
updated: Oct 22, 2020
    103 KB Oct 22, 2020
Programming Guides
file type icon Configuration and Programming Guide - Modero S/X Series G4 Touch Panels HydraPort Touch Connection Ports
updated: Oct 22, 2020
    2.16 MB Oct 22, 2020
Touch Panel Files
file type icon MXD-1900L-PAN Portrait Demo Touch Panel File (530x1920)
updated: Jul 18, 2018
    4.22 MB Jul 18, 2018
file type icon MXT/D-1900L-PAN Landscape Demo Touch Panel File (1920x530)
updated: Jul 18, 2018
    8.94 MB Jul 18, 2018
file type icon MXD-1900L-PAN RMS Scheduling Touch Panel File (530x1920)
updated: Jul 17, 2018
    2.63 MB Jul 17, 2018
Device Modules
file type icon Panel-to-Panel Video Chat Module
updated: Oct 22, 2020
    7.46 MB Oct 22, 2020
file type icon Modero X Residential Demo
updated: Oct 22, 2020
    52.8 MB Oct 22, 2020
file type icon Near Field Communications (NFC) Module
updated: Oct 22, 2020
    4.81 MB Oct 22, 2020
file type icon AMX Communications Application
updated: Oct 22, 2020
    16.9 MB Oct 22, 2020
file type icon MET-ECOM/D Metreau Entry Communicator Device Module
updated: Oct 22, 2020
    2.72 MB Oct 22, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features



  • Panoramic Control Surface – Combined with the new PanTastic UI, the panoramic touch panels take the user experience to a whole new level with an impressive control surface to perform activities much in the same way you use a computer – multi-tasking with dedicated spaces
  • Graphic Leaps & Bounds – The Modero X Series features intuitive UI functionality including: gesturing, swiping, dynamic reordering and enhanced animation capabilities
  • Perfect From Any Angle – Includes In-Plane Switching (IPS), which delivers the widest viewing angles and the most accurate color reproduction on the market
  • Enhanced Usability – External phone connections via Bluetooth or USB and HD video streaming
  • Generous Mounting Options – In addition to wall mount, you can mount the 19.4" Modero X Series Landscape Wall/Flush Mount Touch Panel directly to an equipment rack using the optional MXA-RMK-19 Modero X Series Rack Mount Kit (FG5969-61)

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.

Specifications

Display Size (WH) Landscape: 20.4" x 6.9" (519 mm x 175 mm), 20.4" (518 mm) diagonal, Portrait: 6.9" x 20.4" (175 mm x 519 mm), 20.4" (518 mm) diagonal
Viewable Area (WH) Landscape: 18.7" x 5.9" (475 mm x 151 mm), 19.4" (493 mm) diagonal, Portrait: 5.9" x 18.7" (151 mm x 475 mm), 19.4" (493 mm) diagonal
Resolution Landscape: 1920x530, Portrait: 530x1920
Viewing Angle Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio Landscape: 18:5, Portrait: 5:18
Touch Overlay Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine AMX G4
Front Panel Components Light Sensor, Proximity Detector, Camera, LED Indicators, Sleep button. See Data Sheet for details.
Power Consumption Full-On: 32W (12 VDC, 2.7 A)
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers

FG5968-12 (Portrait)
FG5968-12 (Landscape)
