NetLinx NX Integrated Controller

Larger Images

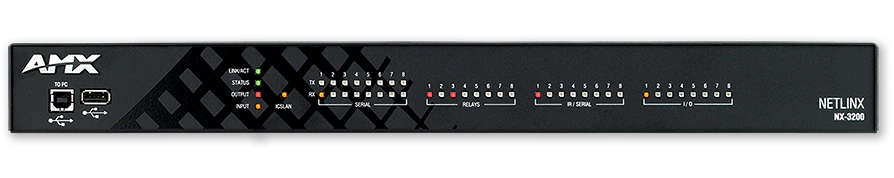

The NX-3200 / NetLinx® NX Integrated Controller is a programmable network appliance specifically designed to control AV and building technology using multiple analog and digital formats. The NX-3200 provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features. The NX-3200 adds more ports to the NX-2200, giving it the ability to integrate a larger number of devices. The NX-3200 controls a wide variety of components including audio/video conferencing, projectors, DVD and Blu-ray players, lights, thermostats and other electronic equipment found in larger spaces. With these technology-driven environments, the NX-3200 also provides solutions for future expansion and enables the addition of more devices and control capabilities.

Common Applications

  • NX Master Security firmware is ideal for enterprise, education, and government policies requiring secure communication over a computer network in line with security standards expected by the IT industry of any equipment running on an enterprise
  • The NX-3200 is ideally suited to the requirements of large lecture halls, board rooms, media rooms, and integrated homes with advanced control and automation features.
  • With a large local port complement and enhanced security features like Dual NIC, the NX-3200 can handle greater challenges of a large AV system, conferencing, HVAC, lights, security, power management, and many similar specialized applications requiring extensive control with maximum physical ports.


  Version Language Size Uploaded
Comparison Chart
updated: Jul 09, 2018
    89.3 KB Jul 09, 2018
Data Sheet
updated: Jul 09, 2018
    384 KB Jul 09, 2018
Excerpt - What's New in X-Series Controllers
updated: Jul 16, 2018
    96.8 KB Jul 16, 2018
Hardware Reference Manual - NX-Series NetLinx NX Integrated Controllers
updated: Mar 26, 2018
    1.03 MB Mar 26, 2018
CAD Drawings
Pictorial Drawing - NX-4200 NetLinx NX Integrated Controller (PDF)
updated: Apr 06, 2018
    271 KB Apr 06, 2018
Pictorial Drawing - NX-3200 NetLinx NX Integrated Controller (DWG)
updated: Apr 06, 2018
    766 KB Apr 06, 2018
Pictorial Drawing - NX-3200 NetLinx NX Integrated Controller (DXF)
updated: Apr 06, 2018
    2.95 MB Apr 06, 2018
Pictorial Drawing - NX-3200 NetLinx NX Integrated Controller (PDF)
updated: Apr 06, 2018
    227 KB Apr 06, 2018
NX Series (X200) NX/DVX/DGX Device Firmware
version 1.1.48, updated: Jun 28, 2019
1.1.48     52 KB Jun 28, 2019
NX Series (X200) NX/MCP/DVX/DGX Master Firmware
version 1.6.178, updated: Sep 21, 2020
1.6.178     156 MB Sep 21, 2020
Quick Start Guides
Quick Start Guide - NX-3200 NetLinx NX Integrated Controllers
updated: Mar 26, 2018
    238 KB Mar 26, 2018
A&E (Architectural & Engineering) Specifications
A&E Spec - NX-3200 NetLinx NX Integrated Controller
updated: Jun 27, 2018
    71.5 KB Jun 27, 2018
NX-1200/NX-2200/NX-3200 - NetLinx NX Integrated Controller UL Certificate of Compliance
updated: Apr 25, 2018
    175 KB Apr 25, 2018
NX-1200/NX-2200/NX-3200 - NetLinx NX Integrated Controller IECEE CB Test Certificate
updated: Apr 25, 2018
    191 KB Apr 25, 2018
AMX AV/IT Administrator's Guide
updated: Apr 25, 2018
    2.61 MB Apr 25, 2018
Quick Reference Guides
Language Reference Guide - NetLinx Programming Language
updated: Mar 26, 2018
    1.92 MB Mar 26, 2018
Programming Guides
WebConsole & Programming Guide - NX-Series Controllers, Enova DGX, Enova DVX, Massio
updated: Mar 26, 2018
    3.21 MB Mar 26, 2018
Safety Sheets
Safety Instructions - NX-Series NetLinx NX Integrated Controllers
updated: Mar 26, 2018
    85.3 KB Mar 26, 2018
Information Documents
Benefits And Applications of Websockets
updated: Sep 15, 2020
    223 KB Sep 15, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


  • Larger Port Configuration – 8/8/8/8 (Serial, Relay, IR, Digital I/O), versus 4/4/4/4 for the NX-2200
  • Dual NIC – The LAN port is used to connect the master to an external network, and the ICSLAN ports connect to AMX or third-party A/V equipment isolated from the primary network, providing rock-solid security
  • IPv6 – Supports Internet Protocol version 6 (IPv6), the communications protocol that provides an identification and location system for computers on networks and routes traffic across the Internet
  • IEEE 802.1X – Supports IEEE Standard for Port-based Network Access Control with the ability to grant or deny network access to devices wishing to attach to a LAN based on credentials tied to the device rather than to a user
  • X.509 Certificate Services – NX supports customer-provided certificates for access to protected networks
  • Full LDAP Integration – Supports multiple user-defined login groups for accessing the master, as well as provides an AMX programmer the capability to require network login to access certain areas of the touch panel
  • High Performance Architecture, Flexible Programming Platform (RPM, NetLinx and Java) – Easily scalable to support a wide range of applications for today and tomorrow
  • Full Line Compatible (Backwards and Cross-Compatibility) – Standardized port numbers and new configuration import/export tools mean fewer coding changes
  • TLS / SSH Client – Provides NetLinx programmers the ability to manage secure port TLS and SSH communications with a remote device or server
  • Cryptographic Support – In accordance with FIPS 140-2, a U.S. government computer security standard used to accredit cryptographic modules for the protection of sensitive or valuable data
  • Network Syslog – Supports standard device logging to a syslog server
  • Enhanced Diagnostics On Serial and IR Ports – Provides real time error feedback when Serial and IR ports are disconnected or improperly wired
  • File Import / Export From USB Drive – Backup and restore configuration and program data and update firmware from a standard USB flash drive
  • Hardware / Software Built for 24/7/365 Operation – Provides outstanding reliability and improved diagnostics
  • Ultra-Fast 1600 MIPS processor
  • 512 MB Onboard RAM
  • 1 M Non-Volatile Memory
  • 8 GB SDHC FLASH Memory
  • 1 RU
  • 2 AXLink Interface
  • 1 10/100 LAN Interface
  • 1 10/100 ICSLan Interface
  • 8 Digital I/O Ports
  • 2 RS232/422/485 Ports
  • 6 RS232-Only Ports
  • 8 IR/Serial Output Ports
  • 8 Relay Ports


Dimensions (HWD) 1 4/5” x 17” x 9 1/8” (45.15 mm x 431.80 mm x 231.64 mm)
Weight 6.08 lb. (2.758 Kg)
Memory Memory Card: 8 GB SD, NVRAM: 1 MB, DDRAM: 512 MB, Note: Supports external USB Solid State Drives
Power Consumption Active Power Consumption: 6.6 W
AxLink Port (2) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices
AxLink Indicator (2) AxLink LED (green) indicates the state of the AxLink port
RS-232/422/485 Ports (2) 10-position 3.5mm Screw Terminal, NetLinx Port 1 and 5, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
RS-232 Port (6) 5-position 3.5mm Screw Terminal, NetLinx Ports 2-4 and 6-8, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
Serial Indicator (8) sets of LEDs (red/yellow) indicate when serial Ports 1 - 8 are transmitting and receiving data
IR/Serial (8) 2-position 3.5mm Screw Terminal, 8 IR Transmit / 1-way Serial ports, NetLinx Ports 11-18, Support high-frequency carriers up to 1.142 MHz, 8 IR/Serial data signals can be generated simultaneously
IR/Serial Indicators (2) LEDs (red) indicate when each of the IR/Serial ports (11-18) are transmitting control data
I/O Channels (8) One 10-position 3.5mm Screw Terminal, 8-channel binary I/O port for contact closure with each input being capable of voltage sensing, NetLinx Port 22, Channels 1-8
I/O Indicator (8) LEDs (yellow) indicate each of the I/O channels (1-8) are active
Relays (8) Two 8-position 3.5 mm Screw Terminal, (8) single-pole, single-throw relays, NetLinx Port 21, Channels 1-8, Each relay can switch up to 24 VDC or 28 VAC @ 1 A, Each relay is independently controlled
Relay Indicators (8) LEDs (red) indicate when each of the relay channels (1-8) are active (closed)
FG Numbers FG2106-03

Recommended Accessories

  • PSR5.4

    12 VDC, 5.4 A Power Supply with 3.5 mm Phoenix Connector with Retention Screws

    NetLinx® IR Emitter Cable

    Cat6 Ethernet Cable
  • EXB-IRS4

    ICSLan IR/S Interface, 4 IR/S and 4 Inputs
  • EXB-COM2

    ICSLan Serial Interface, 2 Ports
  • EXB-REL8

    ICSLan Relay Interface, 8 Channels
  • EXB-IO8

    ICSLan Input/Output Interface, 8 Channels
  • EXB-MP1

    ICSLan Multi-Port, 1 COM, 1 IR/S, 2 I/O, 1 IR RX
