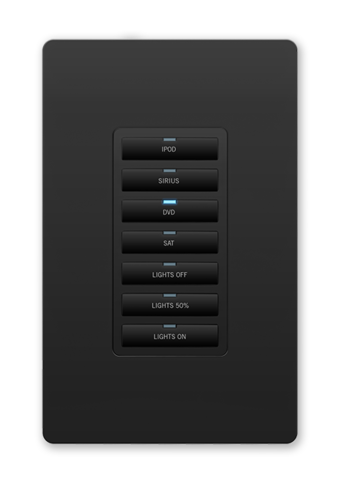

The MET-7X Metreau 7-Button Expansion Keypad connects to any adjacent Metreau Ethernet Keypad (MET-6NE, MET-7E or MET-13E) via ribbon-cable to add additional control points in the same location.
Larger Images
Common Applications
Ideal for classrooms, conference rooms, residences or hotels that require multiple adjacent control points.
Downloads
Documents
| Size | |
Data Sheet
updated: Apr 2026
|
297 KB |
Manuals
| Size | |
|
|
2.57 MB |
CAD Drawings
| Size | |
|
|
152 KB |
|
|
3.45 MB |
|
|
912 KB |
Bim Objects
| Size | |
|
|
Firmware
| Size | |
|
|
300 KB |
Quick Start Guides
| Size | |
|
|
162 KB |
Safety Sheets
| Size | |
|
|
80.8 KB |
A&E (Architectural & Engineering) Specifications
| Size | |
|
|
55 KB |
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Features
- Simple Connection – Connect up to three keypads with one IP address to optimize the room’s network design
- Power Over Ethernet (PoE) Compatible – The Expansion Keypad receives power from the Metreau Ethernet Keypad it is connected to (options include MET-6NE, MET-7E and MET-13E) via the ribbon cable
NOTE: Keypad wallplates not included. See ALD-CW-1, ALD-CW-2, ALD-CW-3.
Specifications
| Dimensions (HWD) | Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm) |
| Mounting | Mounts into standard decor-style wallplates |
| Front Panel Components | Pushbuttons available in a variety of field replaceable pre-printed buttons with blue LED indicators |
| Rear Panel Components | (2) 8-pin, 0.100” (2.54 mm) IDC-type male header |
| Power | The Expansion Keypad receives power from the Metreau Ethernet Keypad it is connected to (options include MET-6NE, MET-7E and MET-13E) via the ribbon cable. See Data Sheet for details. |
| FG Numbers | FG5793-13-WH (White) |
Consultant SupportNOTE: The most current and complete specifications for this product are found in the data sheet. Specifications are subject to change.
